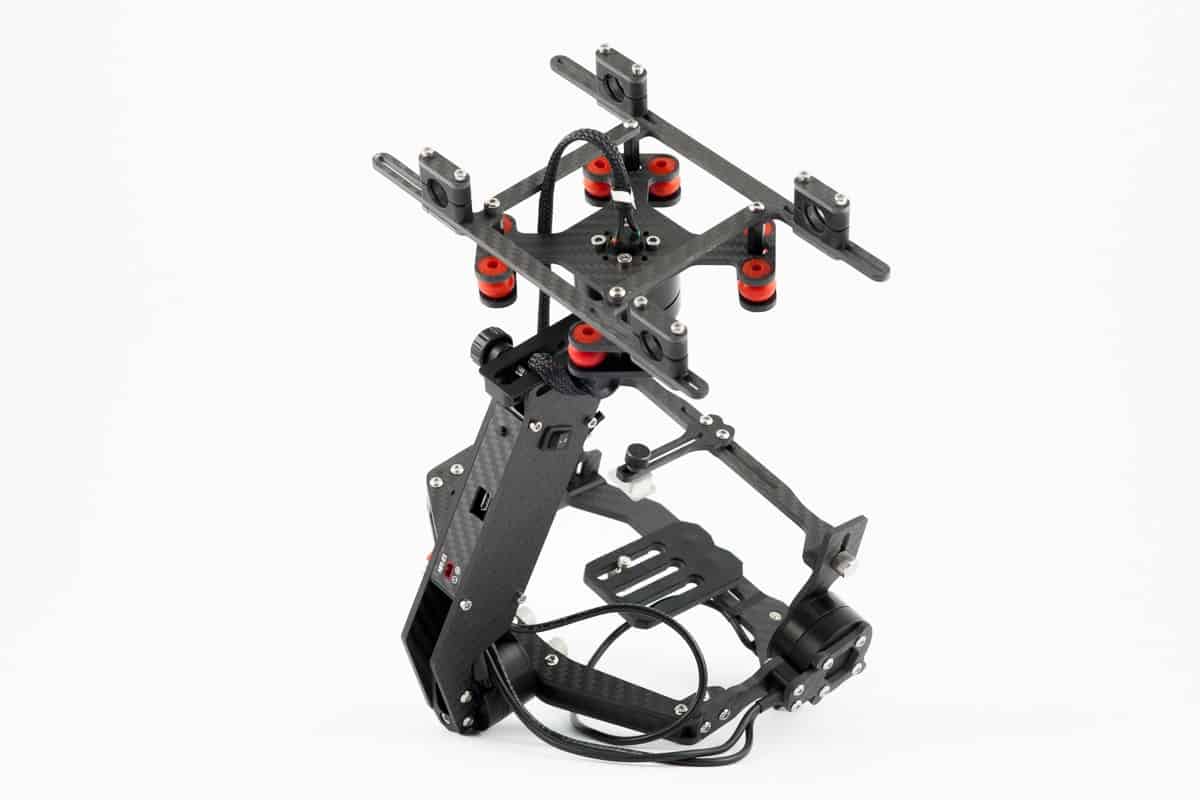

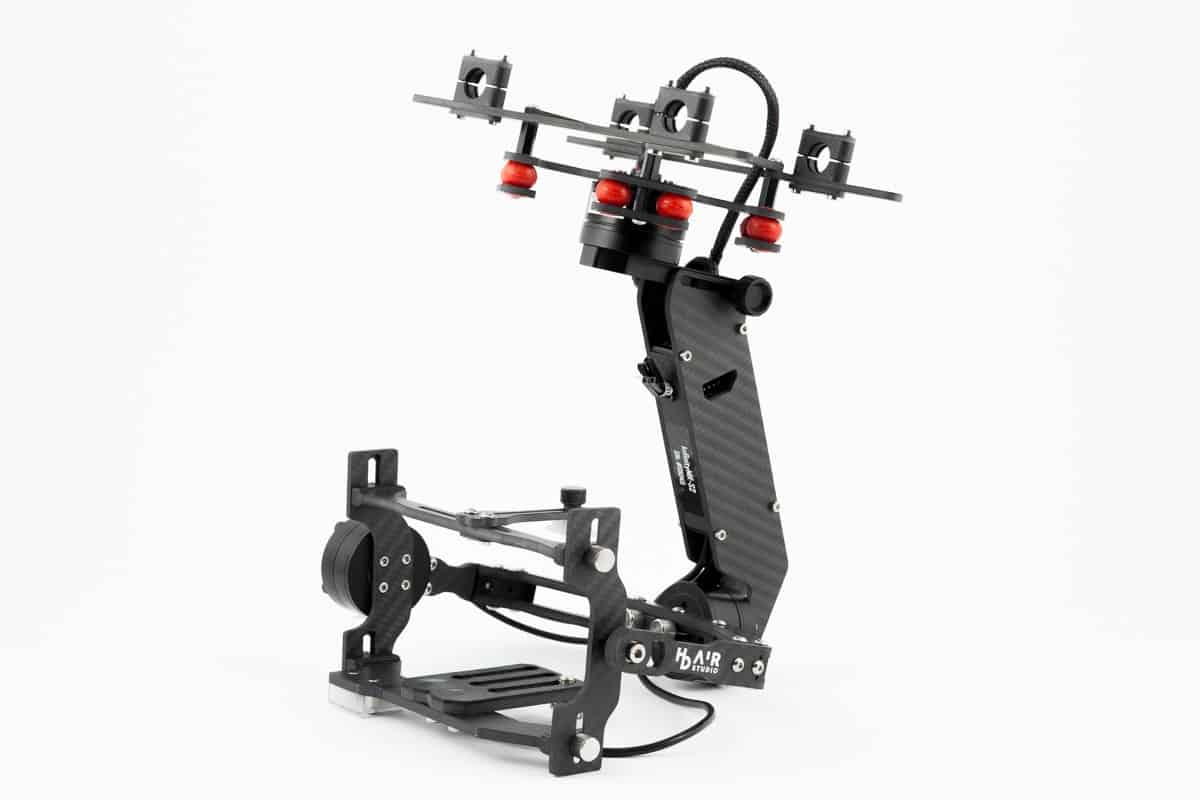

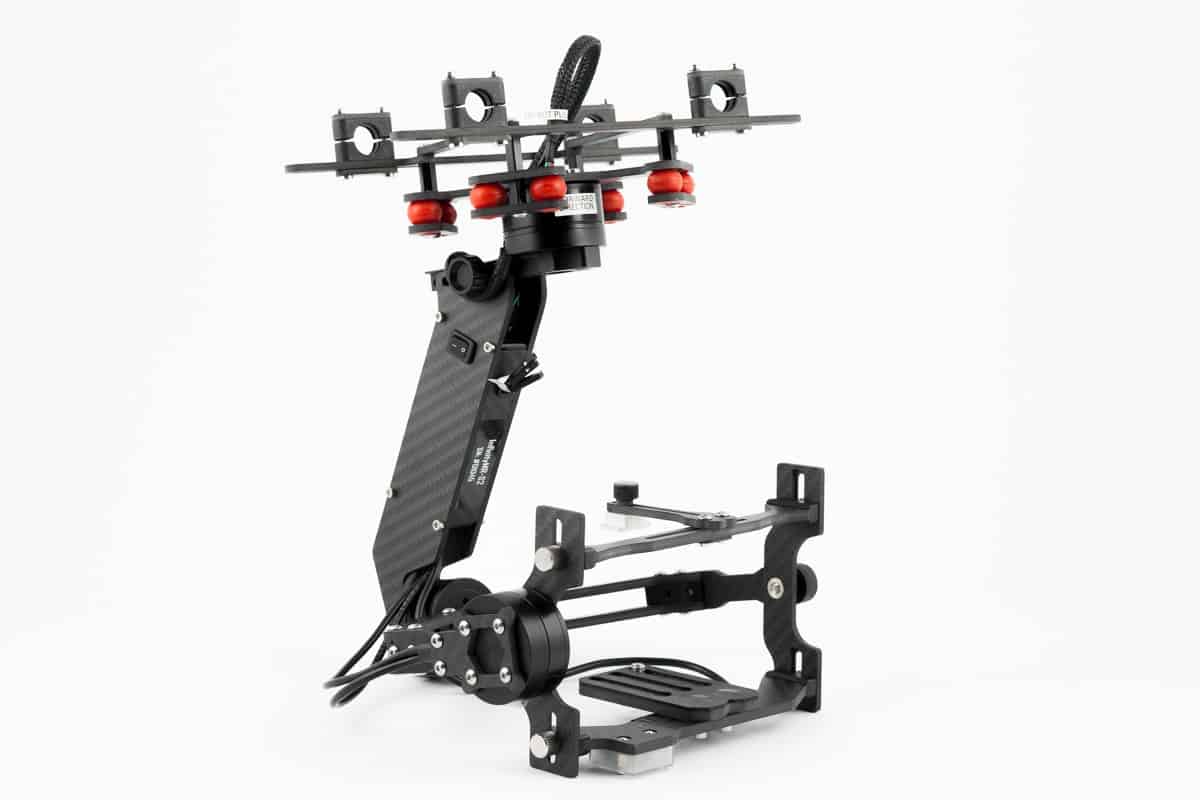

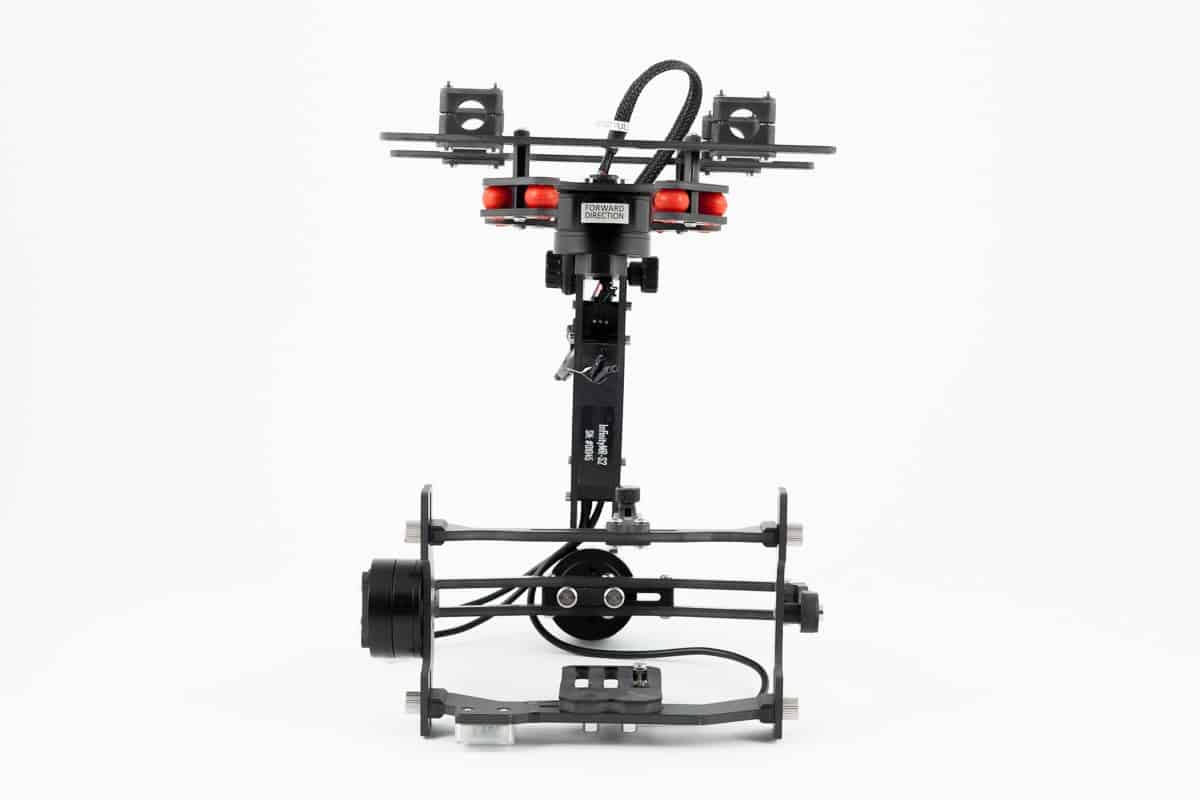

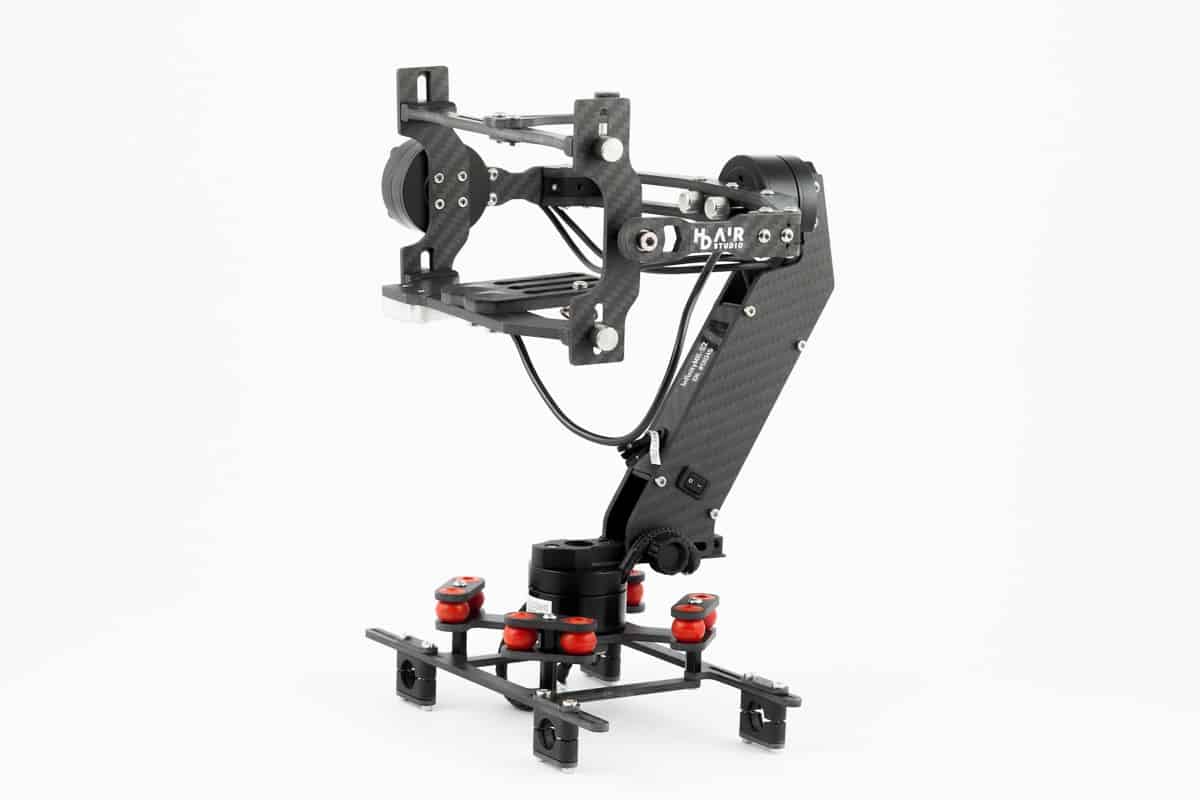

Infinity MR-S2

The Infinity MR-S2 is a high-precision gimbal designed for mirrorless cameras and other payloads weighing up to 800 g. With high-torque motors and encoders installed on all axes, it delivers the best possible stabilisation for high-quality video capture.

The lightweight gimbal is ideal for payload-limited multirotor drone platforms, weighing in at just 599 grams. The slipring connector can be used for power transmission, doing away with the need to carry a separate battery.

Dimensions (outer): 253 x 181 x 180 mm
Dimensions (camera cage): 75 x 135 x 65 mm
Weight: 599g/1.3 lb (including anti-vibration system and mounting)
Supported Cameras: Sony RX100 I-IV
Sony A6300
Sony A6500
BlackMagic Micro
and all similar cameras
