Infinity MR-Pro Lightweight DSLR drone gimbal with 360-degree pan
Infinity MR-Pro

Lightweight DSLR drone gimbal with 360-degree pan

Visit Website Send Message
Saved
Save
Infinity MR-Pro

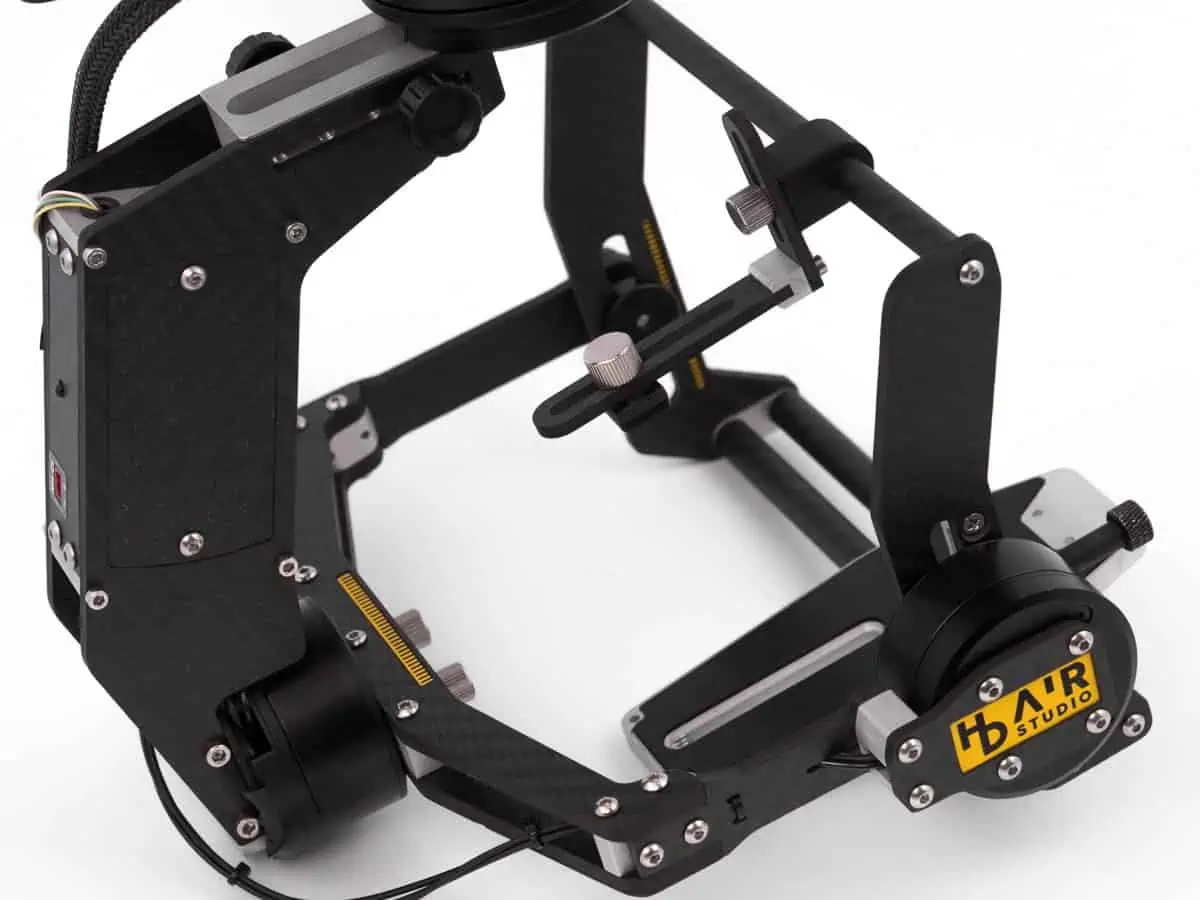

The Infinity MR Pro is a versatile gimbal for multirotor UAVs, designed to carry DSLR camera payloads weighing up to 1.3 kg. Featuring a convenient quick-release system, the gimbal can be attached to either the top or underside of the drone.

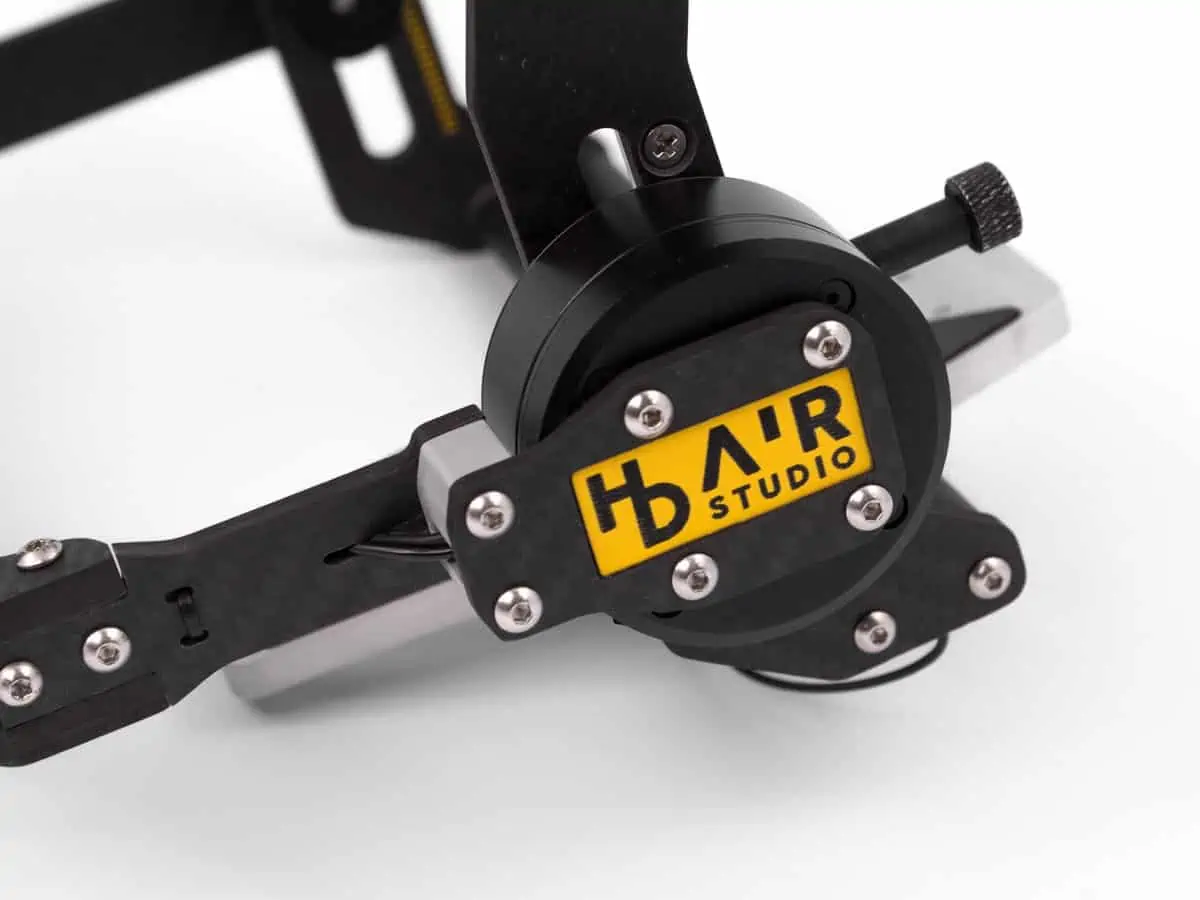

The lightweight gimbal incorporates powerful brushless motors for smooth and precise camera positioning, and provides unlimited 360-degree rotation on the pan axis.

The Infinity MR-PRO can be connected to Pixhawk autopilots via the MAVLink protocol, allowing users to automate gimbal movement and camera operation.

Dimensions (outer): 289 x 214 x 227 mm
Dimensions (camera cage): 114 x 155 x 70 mm

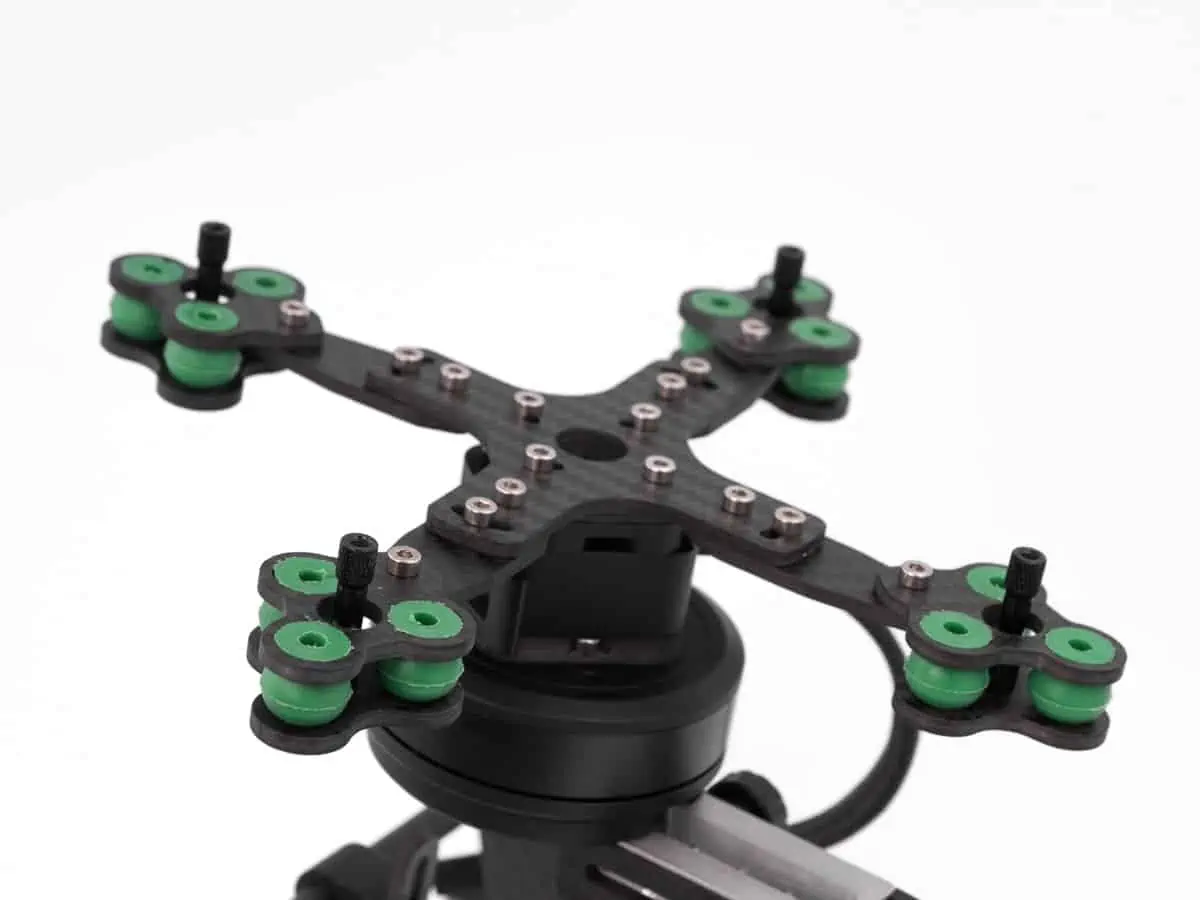

Weight: 1020 g/2.25 lbs (with damping system)
880 g/1.95 lb (without damping system)
Supported Cameras: Panasonic GH4
Panasonic GH5
Sony A7S
Sony Alpha A7R II
SONY A6500
BlackMagic Pocket
