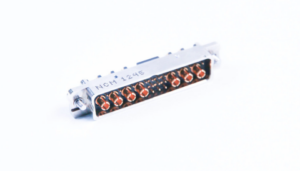

Nicomatic has developed the D53C, a ‘mate-before-lock’ mechanism for its MIL-SPEC DMM rugged 2mm pitch metal connectors, offering numerous advantages for efficiently and securely mating connectors.
Nicomatic DMM connectors are designed to save space and protect against electromagnetic and mechanical damage. They meet MIL-DTL-83513G performance standards and provide greater modularity compared to other MIL-SPEC connectors like Micro-D or Sub-D.
Engineers can tailor the connectors to their needs, adjusting pin count, contact type, and mounting style. The D53C fixing hardware is versatile, compatible with all Nicomatic DMM connectors.
Advantages of the ‘Mate-Before-Lock’ Mechanism
- Damage Reduction – This system minimizes the risk of damage by ensuring that connector parts are mated before locking them in place.
- Captive Screw Solution – The fixing hardware features captive screws that cannot be detached or lost, reducing the risk of foreign object damage (FOD) that could affect equipment.
- Ergonomic Benefit – The ‘mate-before-lock’ mechanism allows users to connect and disconnect connectors more easily and quickly.
This system proves valuable in practical scenarios such as unmanned aerial vehicle (UAV) operations, where technicians and operators need to quickly change battery packs or payloads. The D53C system facilitates quick changes while protecting the equipment from damage.
The ‘mate-before-lock’ system is also ideal for users dealing with electronic products like daisy chains, where frequent mating and unmating of connectors is required. It offers time savings and increased comfort for these tasks.
