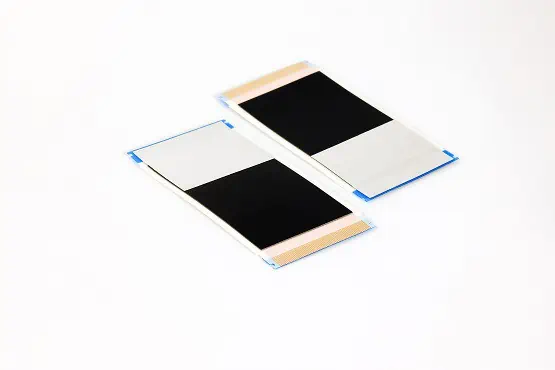

Nicomatic FFC (Flat Flexible Cable) products are constructed from conductive copper laminated between two layers of polyester, using thermic adhesive for enhanced life expectancy, and are designed for board-to-board interconnects. Able to withstand millions of cycles under high-flex conditions, they can be directly soldered or used with ZIF/LIF-type connectors.
FFCs are available in 0.5, 1, 1.25, 1.27 or 2.54mm pitches, and can be provided with up to 250 contacts. Corrosion-resistant gold-plated and EMI/RFI shielded versions are available, and a variety of other custom requirements can be catered for, including video cabling, laser cutting, and variable pitch. The space- and weight-saving cables are ideal for a wide range of drone and robotics applications, and feature an operating temperature range of -55° to +105°C.
