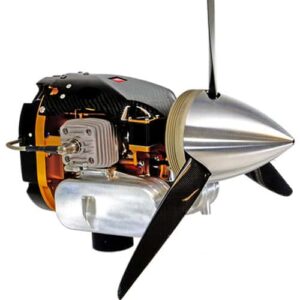

HFE International’s GenPod® 70 LRU is a fully self-contained, line-replaceable propulsion module designed to simplify Unmanned Aerial Vehicle (UAV) integration, maintenance, and field operations.
The unit combines an Electronic Fuel Injection (EFI) engine, onboard electrical generation, and all required control hardware within a single modular assembly intended for small-to-medium unmanned aircraft.
Modular, Field-Replaceable Propulsion
The GenPod approach allows operators to replace the entire propulsion module rather than servicing individual components.
The GenPod 70 LRU incorporates a 70 cc EFI engine, integrated fuel pump and Engine Control Unit (ECU), a starter-generator capable of supplying up to 500 W, an isolation-mounted motor system, a low-signature muffler, and all necessary wiring and mounting hardware.
This configuration removes the need for complex engine-bay integration and enables rapid replacement of the propulsion system during maintenance or field operations.
Performance Engineered for Real Missions
The 70 cc EFI engine delivers the following performance characteristics:
- Peak Power: 3.8kW at 7500 RPM
- Continuous Power: 3.0 kW at 6000 RPM
- Peak Torque: 5.2 Nm at 5000 RPM
- Operating Range: 2000-7500 RPM
- Weight (with mufflers): ~3 kg
- Power-to-weight ratio: ~1.3 kW/kg
- BSFC at cruise: ~450 g/kW-hr
These specifications support use across a range of fixed-wing UAV mission profiles where consistent output and predictable fuel consumption are required.
Built for Reliability and Operational Flexibility
The GenPod 70 LRU has a Time Between Overhauls (TBO) of 300 hours and supports both pusher and tractor configurations. The module includes an integrated muffler to manage acoustic output, and the onboard starter-generator supplies up to 500 W of electrical power for avionics and other aircraft systems.
The GenPod 70 LRU integrates propulsion, power generation, vibration isolation, and electronic control hardware into a single module. The modular design allows the entire propulsion unit to be replaced in the field without specialised tools, providing a straightforward method for maintaining the system during UAV operations.
Suitable Applications
The GenPod® 70 LRU is designed for integration into small- and medium-scale unmanned aircraft that require a compact propulsion module with an integrated electrical power system. Its modular format and support for both pusher and tractor configurations allow it to be used across a range of fixed-wing UAV platforms.
Find out more information about the GenPod® 70 LRU on HFE International’s website.
