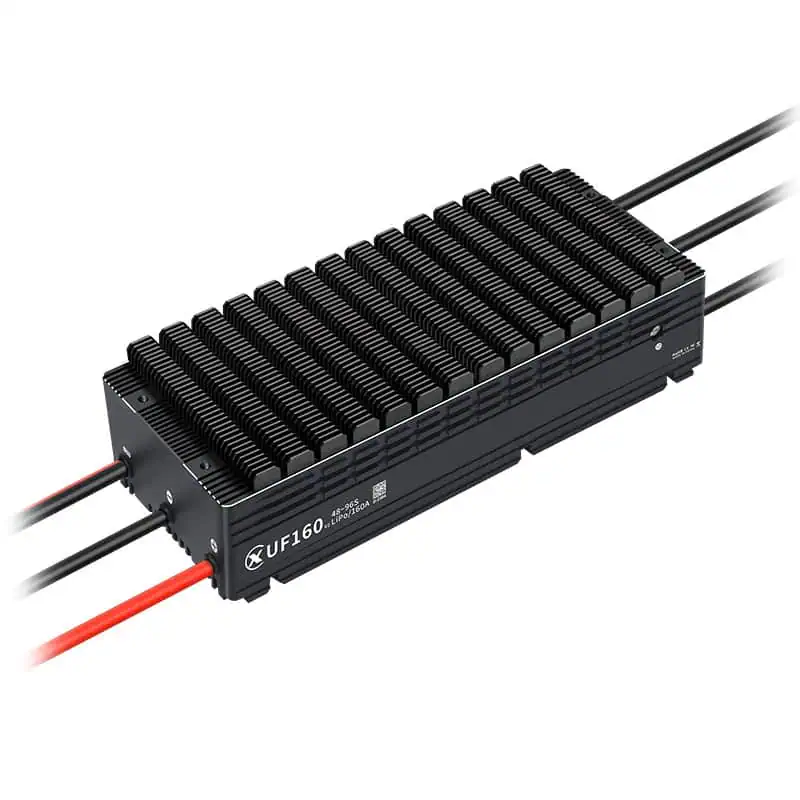

48 – 96S BLDC drone motor controllers with up to 160A output

The UF Series of drone ESCs (electronic speed controllers) is designed to work with 48–96S battery inputs, and provides options for output currents of up to 160A. The advanced motor controllers feature cutting-edge motor control algorithms with rapid response times and requiring no additional timing adjustments or calibration.

The highly efficient ESCs have been designed to generate less heat during startup, operation and shutdown, and incorporate sophisticated thermal design with copper conduction for enhanced temperature dissipation. Regenerative braking allows the units to convert recovered mechanical energy into electrical energy. Multiple protective features have been built in to provide safety and reliability, including over-voltage, over-temperature, stall and throttle signal loss protection, and infinite restart.

CAN connectivity provides real-time communications with the drone flight controller, and enables monitoring of a variety of ESC and motor parameters including throttle values, voltage, current, motor speed and temperature. Firmware can be upgraded easily via CAN, and all units are compatible with the CyphalCAN and DroneCAN protocols.

Specifications:
