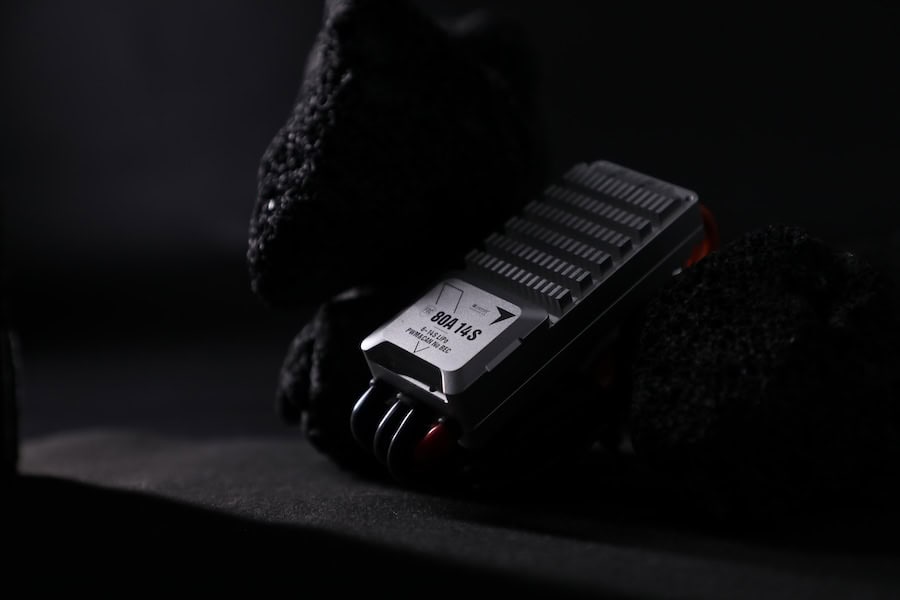

V Series Electronic Speed Controllers
T-MOTOR's flagship V Series ESCs, designed for VTOL drone platforms, utilize cutting-edge FOC (Field Oriented Control) technology to ensure efficient and stable operation under the full range of working conditions. Supporting CAN2.0 communications, the motor controllers are fully compatible with PX4-based flight controllers, and can be remotely monitored in real time.
The advanced ESCs include an intelligent locking function that uses a magnetic encoder to automatically adjust the force required to lock the propeller, reducing power consumption and heat generation. Robust safety features include a CAN+PWM dual-throttle system, shielded signal cables, and an isolated throttle design.
Specifications:
| V40A 14S | V60A 14S | V80A 14S | V120A 14S | V150 14S | V200A 14S | |
| Dimensions (L x W x H) |
62x30x18mm | 77x33x19mm | 84x35x19mm | 103x50x26mm | 116x49x31mm | 127x56x33mm |
| Weight (inc. cables) |
69g | 85g | 110g | 170g | 295g | 470g |
| Voltage | 18-60V 6-14S |
|||||
| Continuous Current | 20A | 30A | 40A | 60A | 70A | 100A |
| Peak Current | 40A | 60A | 80A | 130A | 160A | 200A |
| Throttle Refresh | 50 – 500 Hz | |||||
| Throttle Response | 300 ms | |||||
