Chassis, Enclosures & Backplanes for Drones and Unmanned Systems

This section features leading manufacturers and suppliers of rugged chassis, enclosures, and backplanes engineered for unmanned systems across air, land, and sea domains. Solutions include embedded computer systems chassis, ATR and conduction-cooled enclosures, and modular backplanes supporting VPX, VME, and PXI standards. Designed to meet military-grade performance, these components are built to withstand extreme environmental conditions while enabling scalable, high-speed data processing in UAVs, UGVs, USVs, and autonomous platforms.
Overview Chassis, Enclosures & Backplanes for Drones and Unmanned Systems
By Staff Writer Last updated: May 6th, 2025

Manufacturers and integrators of UAVs, UGVs, USVs, and other unmanned systems rely on high-performance chassis, enclosures, and backplane architectures to ensure mission-critical electronics operate reliably in harsh, mobile environments. These components form the foundational infrastructure for embedded computing systems, offering mechanical protection, thermal management, and connectivity for high-speed data and signal transmission.

vpx chassis

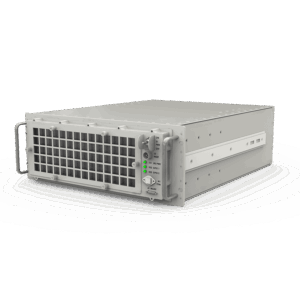

VPX Chassis by LCR Embedded Systems

Ruggedized enclosures and embedded chassis are engineered to safeguard sensitive electronics from extreme environmental conditions encountered during defense, aerospace, and industrial operations. Whether deployed in a tactical reconnaissance drone, autonomous maritime vehicle, or unmanned ground robot, these solutions are designed to meet stringent MIL-STD specifications for shock, vibration, and temperature tolerance.

Jump to section:

Embedded Chassis and ATR Enclosures

Embedded computer systems chassis provide structural and thermal support for mission processors, power distribution units, and other subsystems. In UAV and defense-grade applications, the Air Transport Rack (ATR) chassis format is often preferred for its standardized form factor and compatibility with avionics platforms. ATR enclosures, which are available in both forced-air and conduction-cooled variants, are widely adopted in aerospace environments due to their modularity and robustness.

Conduction cooled chassis, are vital in fanless systems where airflow is restricted or undesirable. These are commonly used in high-altitude or sealed systems where dust, moisture, and airborne contaminants must be kept out. Such enclosures are often constructed from high-strength aluminum or composite materials, delivering a balance between lightweight construction and structural rigidity.

Backplanes: VPX, VME & PXI Architectures

Backplanes serve as the electrical backbone for modular embedded computing systems, connecting VPX, VME, or PXI cards via high-speed interconnects. In unmanned systems, backplanes must support high bandwidth data exchange while withstanding electromagnetic interference and mechanical stress.

VPX chassis are frequently chosen for applications requiring advanced computing capabilities, such as image processing or AI-based sensor fusion onboard UAVs. The VPX architecture enables support for high-speed serial fabrics like PCIe and Ethernet, critical for real-time mission data processing. VME systems, though older, remain in use in legacy or cost-sensitive defense platforms, while PXI architectures are favored in modular test and measurement environments.

SOSA-Aligned and Modular Architectures

The Sensor Open Systems Architecture (SOSA) initiative is transforming how embedded electronics are designed and integrated within defense and aerospace systems. SOSA-aligned chassis and backplanes promote interoperability, scalability, and lifecycle efficiency by adhering to open standards for slot profiles, interfaces, and power distribution.

These SOSA chassis are being adopted across airborne and ground-based unmanned systems to reduce development costs and facilitate multi-vendor integration. By using a modular, standards-based approach, defense OEMs can more easily upgrade mission hardware and repurpose computing infrastructure for new mission profiles.

Ruggedization and EMI Shielding

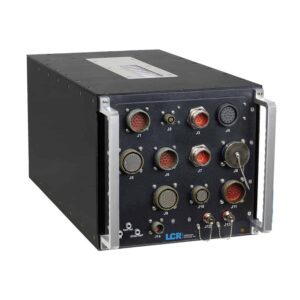

ATR Chassis enclosure with mission-configurable backplane

ATR Chassis enclosure with mission-configurable backplane by LCR Embedded Systems

Rugged chassis and enclosures are built to operate in unpredictable and often hostile environments. They feature multi-point mounting, EMI shielding, and thermal dissipation strategies to maintain system performance under heavy vibration, wide temperature swings, and electromagnetic exposure. Many systems are sealed to IP65 or higher ratings, and include heat sinks, vapor chambers, or heat pipe assemblies to manage internal thermal loads.

EMI compliance is critical in signal-dense environments where avionics, satellite communications, and RF sensors operate in proximity. Proper shielding and grounding ensure mission data integrity and prevent interference with guidance or telemetry systems.

Mission-Critical Integration

Chassis, enclosures, and backplanes in unmanned systems are integral to system survivability, performance, and modularity. From enabling autonomous navigation processors to protecting payload data links, these structures form the backbone of every reliable UAV or unmanned vehicle platform.

Suppliers in this sector are continually evolving designs to meet emerging SWaP (Size, Weight, and Power) constraints while supporting faster data rates, wider voltage tolerances, and expanding interface requirements. With the adoption of SOSA-aligned standards and rugged modular computing, future unmanned systems will benefit from faster integration cycles and greater adaptability to mission demands.

Products (11)

8-Slot VPX Test System

Functional demonstration & verification testing for VPX & SOSA aligned payloads

Functional demonstration & verification testing for VPX & SOSA aligned payloads
...nd VPX UAV and unmanned systems payloads in challenging environments. Providing a high level of...
RMC3-160 3U VPX Chassis

16-slot 19” rackmount chassis with air & conduction cooling

16-slot 19” rackmount chassis with air & conduction cooling
... 40Gb or 100Gb backplanes, it is ideal for demanding UAV and unmanned systems applications....
800 Series CMOSS MOSA System

SOSA-aligned 3U HPEC modular open sensor system

SOSA-aligned 3U HPEC modular open sensor system
...ar Open Sensor System (CMOSS) for UAV C4ISR applications including radar, SIGINT and electronic...
600 Series VPX HPEC System

3U OpenVPX system for high-performance onboard UAV computing

3U OpenVPX system for high-performance onboard UAV computing
...g for UAVs and unmanned systems operating in challenging environments. Supporting 6 slots for...
200 Series HPEC System

VPX & SOSA-aligned system for high-performance embedded computing at the edge

VPX & SOSA-aligned system for high-performance embedded computing at the edge
...g for UAVs and unmanned systems operating at the tactical edge. With a high-performance Intel Xeon...
AoC3U-210 VPX Chassis

Dual-slot VPX chassis for radar & ISR sensors

Dual-slot VPX chassis for radar & ISR sensors
... as UAV sensor systems, and is ideal for programs that mandate SOSA-aligned plug-in payload cards in...
AoC3U-821 VPX Chassis

Eight-slot air over conduction cooled chassis for VPX & SOSA-aligned cards

Eight-slot air over conduction cooled chassis for VPX & SOSA-aligned cards
...dard or custom backplane, supporting 1000BASE-BX, 1000BASE-KX, 10GBASE-KX4, 10GBASE-KR, or...
AoC3U-1440 ATR Chassis

14-slot forced air & conduction-cooled enclosure with mission-configurable backplane

14-slot forced air & conduction-cooled enclosure with mission-configurable backplane
...th dual 9-slot backplanes supporting up to 14 payload cards plus 4 VITA 62 power supplies, it is...
5-Slot VPX Test System

Versatile VPX & SOSA-aligned chassis for real-world testing

Versatile VPX & SOSA-aligned chassis for real-world testing
...nd VPX UAV and unmanned systems payload development and integration to the next level, from early...
DK3-1200 Development Chassis

12-slot 19" development chassis for VPX and SOSA-aligned modules

12-slot 19" development chassis for VPX and SOSA-aligned modules
The DK3-1200 is a rackmount and desktop development chassis for VPX and SOSA-aligned payloads that a...
DK3HS Development Chassis

Development platform for high-speed modules with 100Gb data rates

Development platform for high-speed modules with 100Gb data rates
The DK3HS is a benchtop development chassis designed specifically for high-speed 3U VPX and SOSA-ali...

Related Articles

Atrenne’s Chassis Solutions for Next-Gen Electronics

Find out about Atrenne's diverse, high-performance chassis solutions supporting multiple architectures for demanding electronic applications

Sep 18, 2024
Integrated Systems, Chassis & Backplanes for Mission-Critical UAVs & Unmanned Systems

LCR Embedded Systems' products are designed to equip mission-critical systems with the very best that the SOSA and VPX board architectures have to offer

Mar 28, 2024
3D Printed Chassis – The Future of Aerospace and Defense Manufacturing

Leading developer of mission-critical embedded computing solutions, including UAVs and unmanned systems, Atrenne Computing designs and manufactures rugged chassis enclosures...

Aug 10, 2023
Next Generation Intense Eye UAS Features Injection Molded Chassis

BlueHalo has unveiled the latest innovation of its Intense Eye platform, featuring an injection molded chassis using Alpine Advanced Materials' HX5 reinforced polymer to create a lighter, stronger, more capable UAS

May 09, 2023
Electronic Chassis Enclosures & Backplanes for UAVs & Unmanned Systems

Atrenne's mission-critical computing solutions are designed to meet the needs of a range of UAV applications such as ISR, electronic warfare and radar

Apr 21, 2023

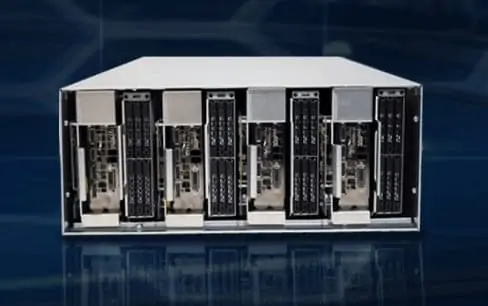

New 4U Computing Chassis Features Advanced Image and Signal Processing
