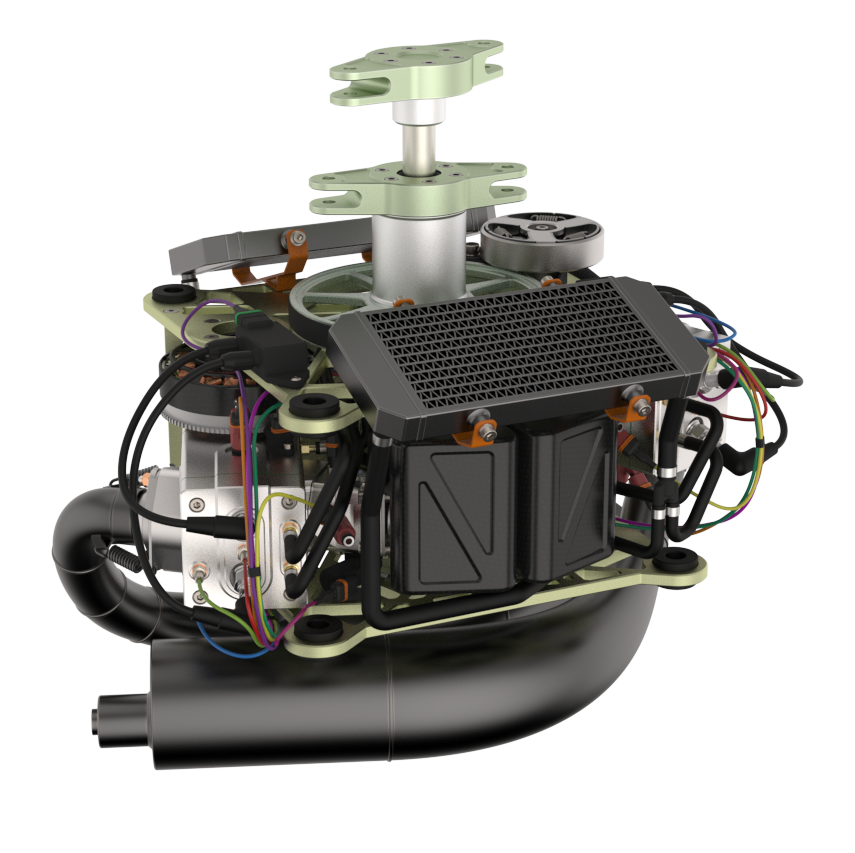

PT2-124 Hybrid Engine
The PT2-124 is a twin-engine hybrid propulsion unit featuring dual 124cc 29hp two-stroke heavy fuel engines, each with its own cooling and ignition systems, as well as an 11 kW generator/booster/starter integrated into the crankshaft.
The engines can be automatically managed by the integrated controller, with procedures for starting, holding, idling, and maintaining desired torque. The unit also provides electronically synchronized rotation of the coaxial rotors.
Specifications:
| Dimensions (L x W x H) | 600 x 600 x 300 mm |
| Weight | 23.5 kg |
| Displacement | 124 cc |
| Bore | 54 mm |
| Stroke | 54 mm |
| Power | 55 hp @ 8800 rpm |
| Max Continuous Speed | 9550 rpm |
| Fuel Consumption | 200 – 220 g/kW/hr |
