Electronic Engine Starters

Our self-contained electronic engine starters (EES) power the starter generator during the engine start sequence, and do away with the complexity of external starting systems. The modules provide enhanced capabilities for hybrid drone propulsion applications including power assist for takeoff and extended range for emergency landings.

ePropelled electronic engine starters can be triggered digitally either through the CAN interface or via connector pins. They can be combined with our intelligent power systems, and are available in 3000W and 6000W variants.

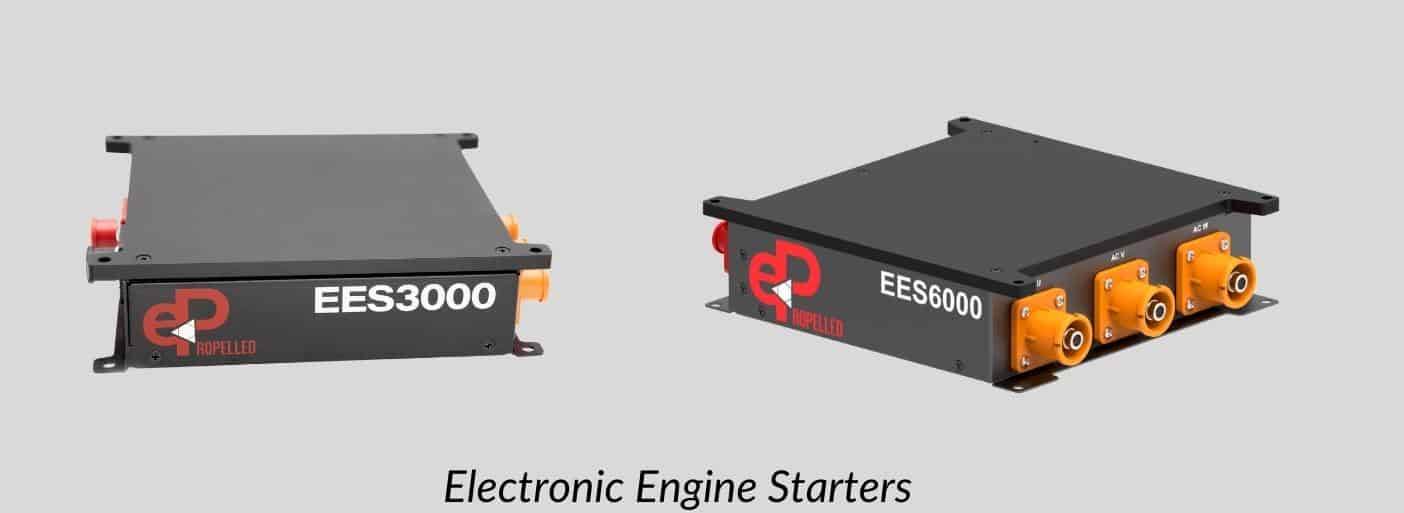

Electronic Engine Starters
  EES3000 EES6000 EESMC6000 (combined motor controller)
Dimensions 178.5 x 152.4 x 45 mm (7.0 x 6.0 x 1.8") 216.5 x 190 x 51.13 mm (8.524 x 7.48 x 2.013") 216.5 x 190 x 61.78 mm (8.524 x 7.48 x 2.432")
Weight 950g (2.09 lb) 6.8kg (15 lb) with heat sink 1.9kg (4.12 lb)
Input Voltage Range 24-58V 65-120V 65-120V
Input Current Range 0-55A 0-110A 0-110A
Max Input Power 3190W 10200W 10200W
Maximum Continuous Output Power 3000W 6000W 6000W
Start Duration 1-10 s 1-10 s 1-10 s
Max RPM 2205 RPM @ 24V 5325 RPM @ 58V 4000 RPM 4000 RPM (as EES) 7000 RPM (as MC)
