T-DRONES is a high-tech innovative enterprise focusing on long-endurance UAV platform and related hardware innovation. With years of practical experience, T-DRONES is committed to becoming a reliable supplier of UAV hardware and driving the UAV industry to the next level.

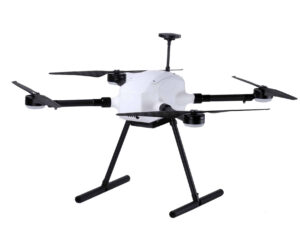

T-DRONES M690PRO multicopter drone
M690PRO 2KG
T-DRONES MX860 Multicopter drone
MX860 9KG
VA23 VTOL UAV Platform
VA23 VTOL UAV

Our multicopter aerial platforms feature an ultra-lightweight aluminium design for superior endurance, and T-MOTOR motors, ESCs (Electronic Speed Controllers) and propellers are ideal solutions for superior drone flight control, stability, and safety.

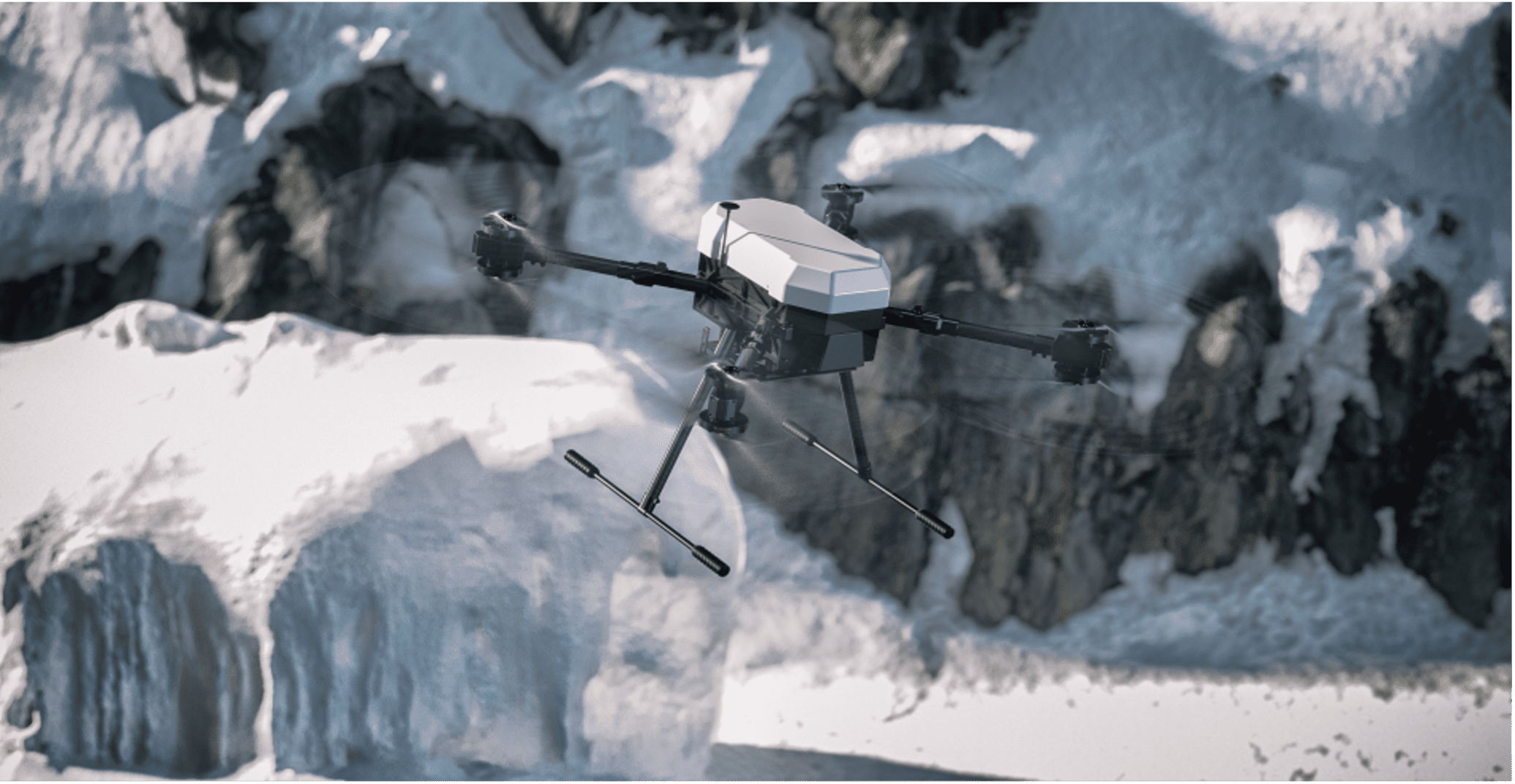

T-DRONES Quadcopter & Multirotor VTOL Drones

T-DRONE drones

T-DRONES M-Series multicopter drones are efficient, reliable and compact aerial platforms. These VTOL drones have been developed with extensive flight tests and collaborative flight projects.

The M-Series Gimbal frame offers flexibility for use with a wide range of payloads and equipment. Suitable for multiple applications, with payloads of up to 15kg, M-Series quadcopter and multirotor drones have been designed for maximum performance.

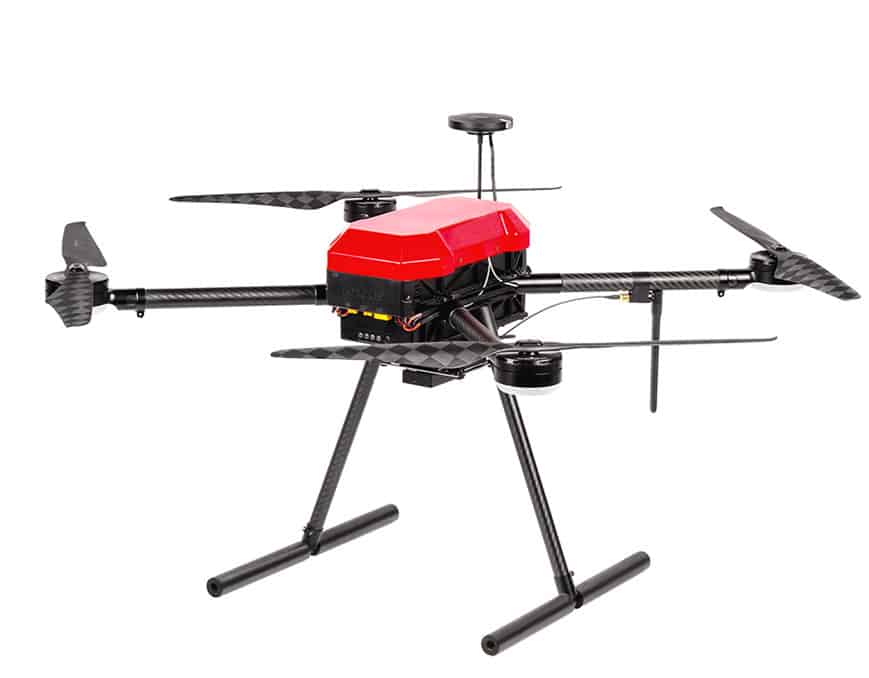

T-DRONES_M690B multicopter drone
M690B
m690pro quadcopter drone
M690PRO

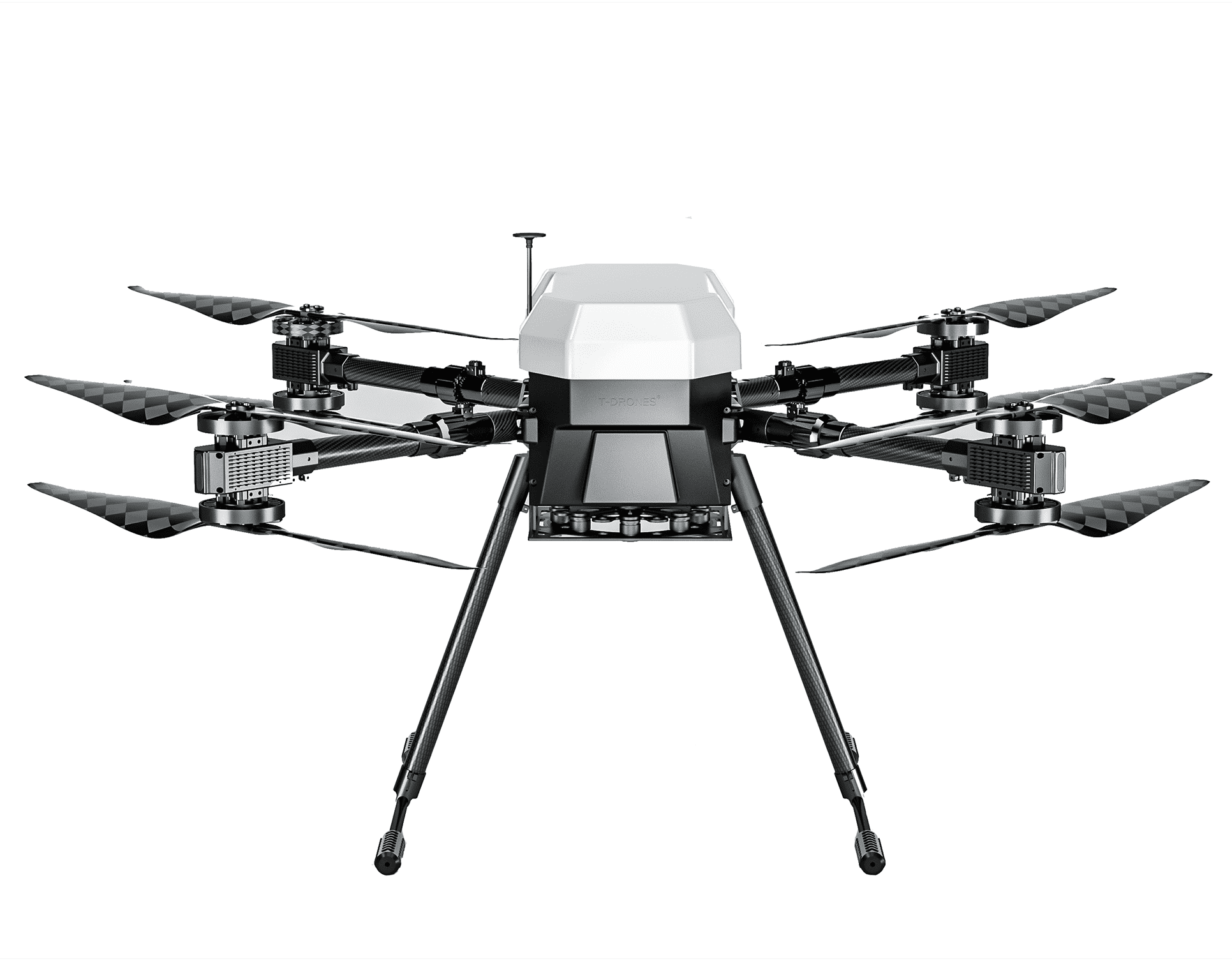

T-DRONES_MX860 Multicopter drone
MX860

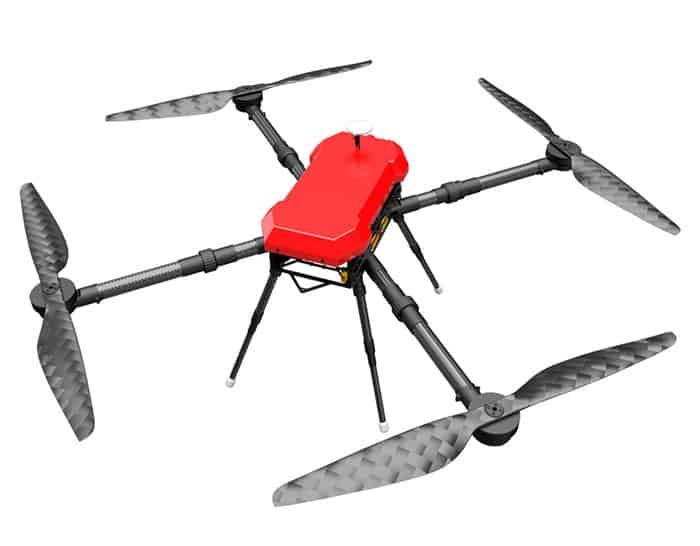

T-DRONES M1200 drone
M1200

All M-Series multicopter drones feature:

  • T-MOTOR power system for long endurance, efficiency and reliability
  • Lightweight aluminium design, for improved endurance capability – 30-37% increase compared to other drones of the same size and payload
  • High energy density Lithium battery for improved power management – can reach up to 72 minutes of flying
  • Ultra-lightweight propellers
  • Reliable Electronic Speed Controller
  • Automatic LED lamp and motor debugging.
  • 100-1000m Typical Altitude, 6500m asl. Max Altitude
  • Force 5 (13m/s) Wind Resistance
  • 10km Range
  • 10~35km/h Typical Speed, 65km/h Max Speed
  • T-MOTOR Power System

Comparison & specifications:

Frame Size  MTOW Flight endurance Battery Payload
T-DRONES_M690B multicopter droneM690B 699mm 5.8kg 1kg payload ≥ 58min
1.5kg payload ≥ 48min
ARES 6S 22AH 0-2kg
T-DRONES M690 Pro droneM690 Pro 700mm 6kg 1kg payload ≥ 55min
2kg payload ≥ 45min
Smart 6S 22AH 0-2kg
T-DRONES MX860 Multicopter droneMX860 860mm 19.96kg 3kg payload ≥ 49min
5kg payload ≥ 40min
ARES 6S 30AH 3-9kg
M1200 quadcopterM1200 1230mm 18.85kg 2kg payload ≥ 70min
5kg payload ≥ 60min
ARES 6S 22AH 2-5kg

Learn more about T-DRONES M-Series Drones

T-DRONES Fixed Wing VTOL UAVs

T-DRONES VA series VTOL UAV frame adopts a highly reliable power system that greatly extends flight time of UAV and increases the safety and stability of drones.

VA25 VTOL UAV Platform
VA25 VTOL UAV
VA23 VTOL UAV
VA23 VTOL UAV

All VA-Series VTOL UAVs feature:

  • Ultra long endurance, and the max. flight time is up to 4h.
  • Adopts T-MOTOR stable and reliable power system.
  • Quickly assemble and disassemble the device in less than three minutes without tools.
  • Equipped with portable backpack.

Comparison & specifications:

Frame Length Frame Wingspan MTOW Endurance Payload
VA25 VTOL UAV PlatformVA25 1.56m 2.5m 13kg ~210mins (1kg payload) 1.5kg
VA23 VTOL UAV PlatformVA23 1.25m 2.3m 12.5kg ~240mins (0kg payload) 2.5kg

Learn more about T-DRONES VA-Series VTOL Drones

High-Energy-Density Li-ion Batteries

Extend your drone flight time with a high-capacity battery

T-DRONES Lithium drone batteries
Smart battery
T-DRONES Lithium drone battery
ARES battery

Designed for a variety of small and medium drones, T-DRONES batteries provide greater capacity and can fly longer than traditional lithium batteries.

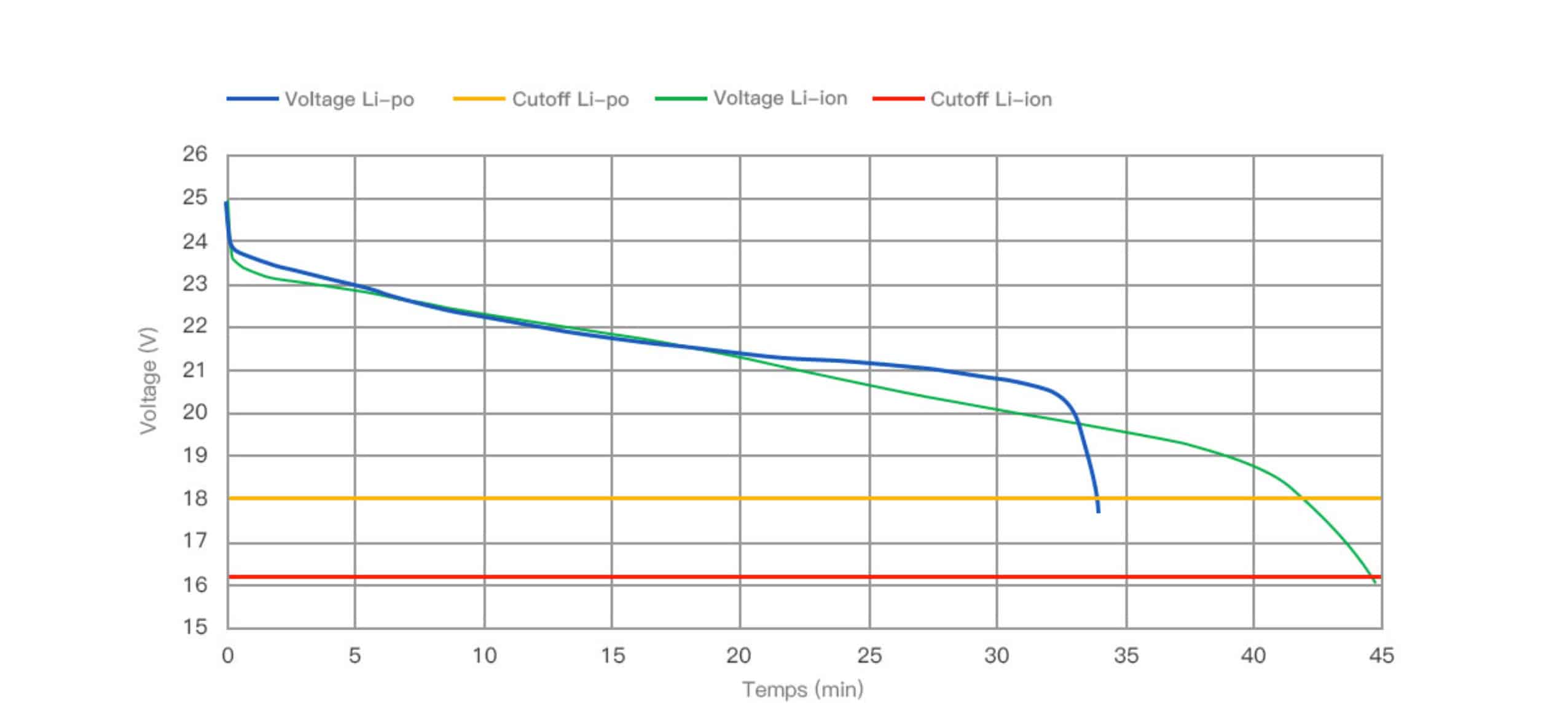

Comprehensive tests demonstrate that with the same payload and the same volume, T-DRONES high-capacity batteries will increase endurance for your drone motors. With a maximum 10C discharge rate, the stable discharge rate ensures the consistent and reliable power supply to your UAV platforms.

drone battery tests

Learn more about T-DRONES Li-ion Batteries

T-MOTOR Motors, Propellers & ESCs

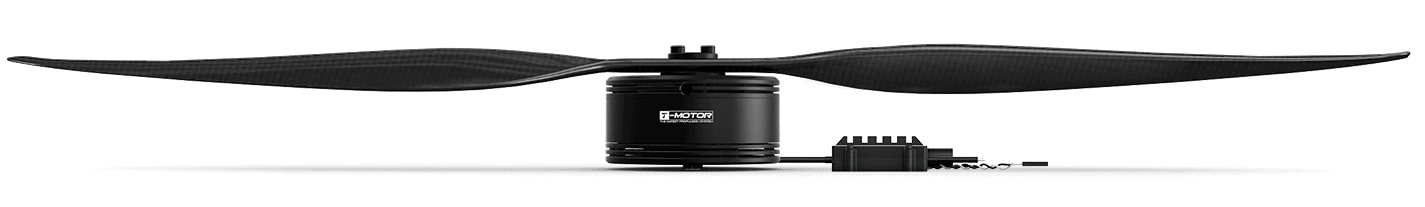

P-Series-UAV-Motor-WITH-PROPELLER

Further information about T-MOTOR, please contact us.

Multirotor & eVTOL Drone Motors

T-MOTOR has specialised in the design of propulsion systems for commercial and industrial VTOL platforms for over 13 years.

Developed with rigorous simulation, design analysis and testing, T-MOTOR multirotor motors are precision-machined to exacting tolerances. Within the range of the maximum thrust of a single motor 150 kg, T-MOTOR is committed to providing highly efficient brushless motors to the drone market.

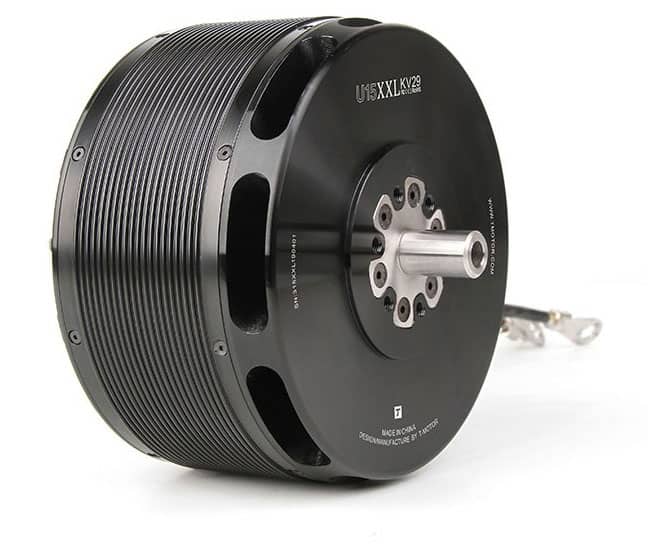

U15XXL Drone Motor

Learn more about T-MOTOR’s Multirotor Drone Motors

Drone Propellers for Multirotors

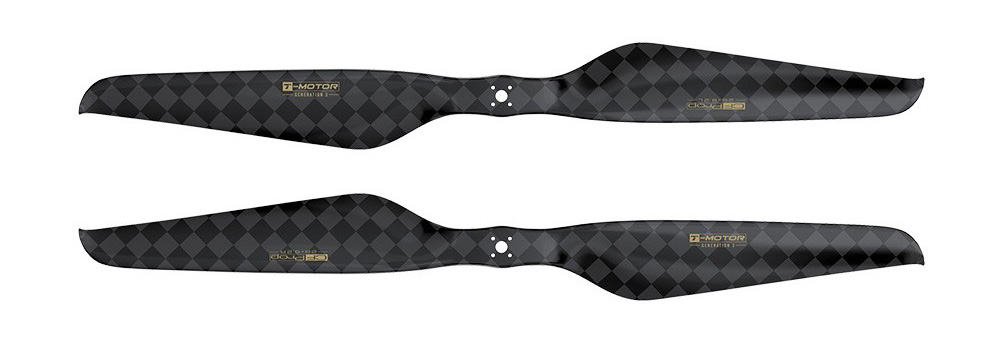

Carbon fiber drone propellers

T-MOTOR’s ultra-light carbon fiber propellers are ideal for industrial VTOL drones. They offer a range of propellers suitable for a range of requirements: ultra-light propellers providing a maximum thrust of 8kg or 10kg; or two- and three-blade glossy propellers that can provide a maximum thrust of up to 60kg. Foldable carbon props with decreased vortex design are also one of the most popular series. Currently available propeller diameter range:10-62 inches.

Following extensive development, the team at T-MOTOR also accepts ODM/OEM customized variable pitch propellers to prepare for a larger market trend.

Learn more about T-MOTOR’s multirotor propellers

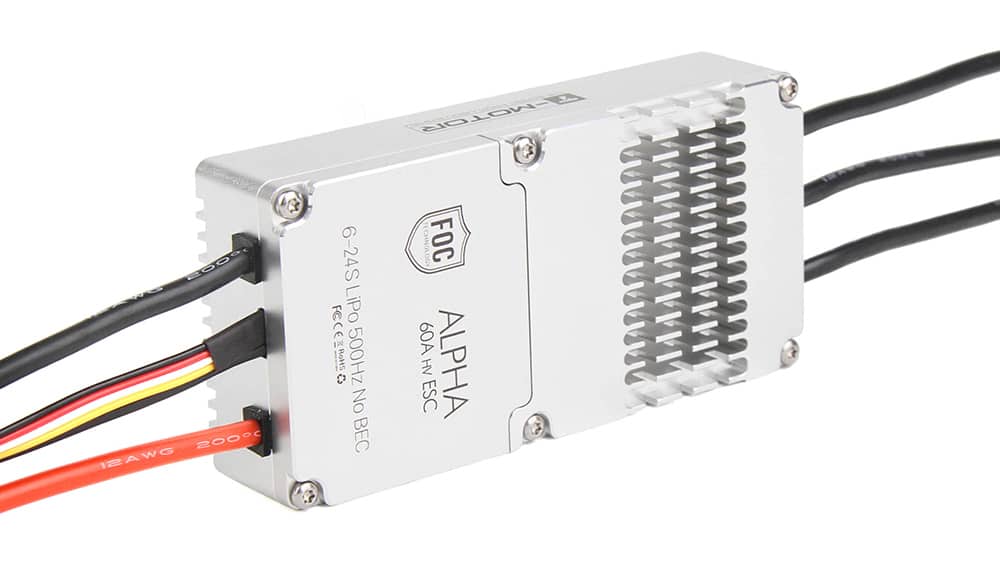

Electronic Speed Controllers (ESCs) for Multicopter Drones

T-MOTOR ESCs deliver high efficiency and superior flight times for multirotor and VTOL drones. A range of sophisticated safety features, including start-up, throttle signal loss, motor lock-up and overload protection make them an ideal choice for integration in drone flight control systems.

Drone ESC

Learn more about T-MOTOR’s Multirotor Drone ESCs

Powertrain Channel for Complete Industrial Drone Propulsion Systems

T-MOTOR’s unique Powertrain Channel provides complete powertrain solutions that include T-MOTOR Motors, ESCs, and Propellers, combined with T-DRONES batteries.

Aimed at wholesalers/distributors/trading companies, a professional customer-focused team is on-hand to offer an industrial drone propulsion system consulting service to match your requirements with advanced solutions and OEM customization.

Learn more about T-MOTOR’s Powertrain Channel
