Our multicopter aerial platforms feature an ultra-lightweight aluminium design for superior endurance, and T-MOTOR motors, ESCs (Electronic Speed Controllers) and propellers are ideal solutions for superior drone flight control, stability, and safety.
Our UAVs and drone propulsion products are widely used for a broad range of industrial and commercial applications, including aerial photography, mapping and surveying, and precision agriculture.
T-DRONES Quadcopter & Multirotor VTOL Drones

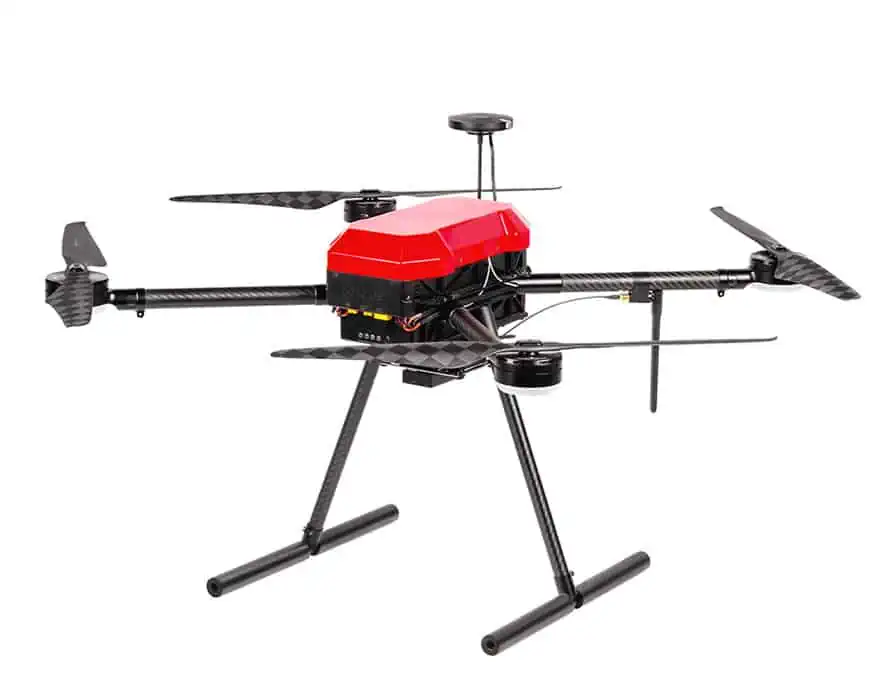

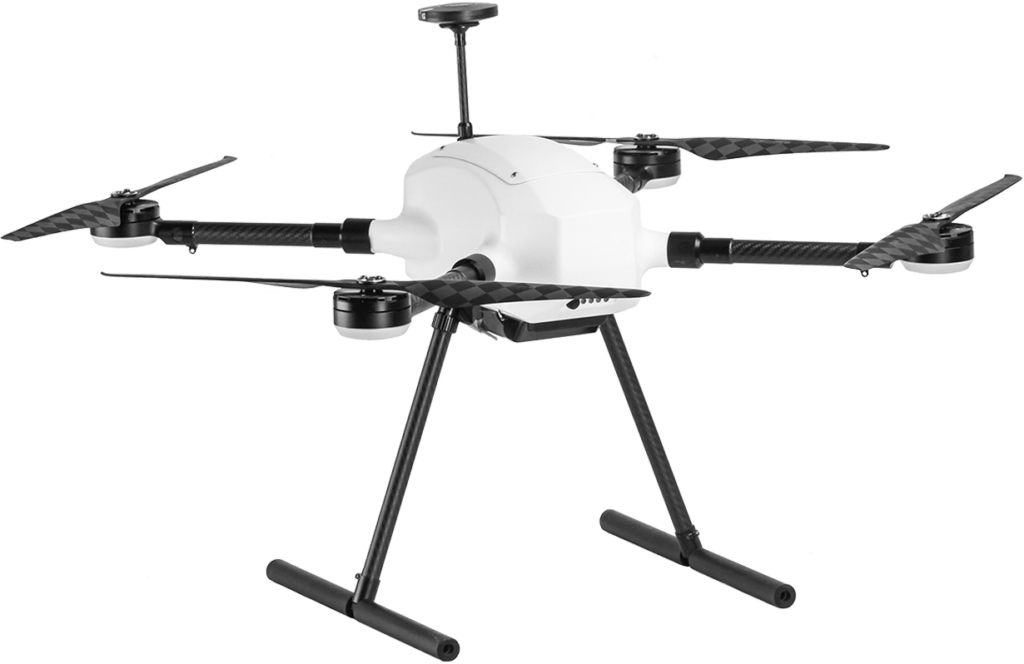

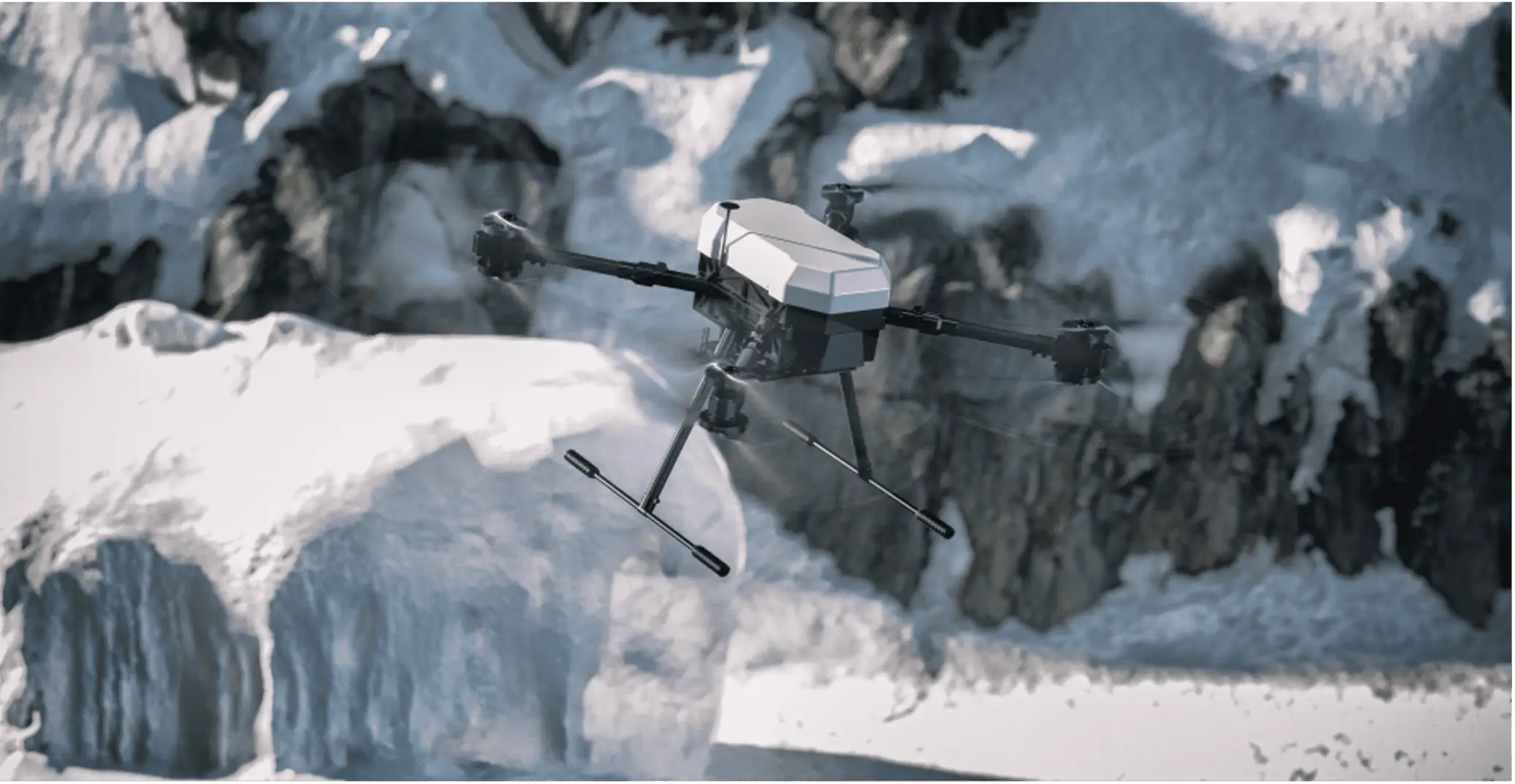

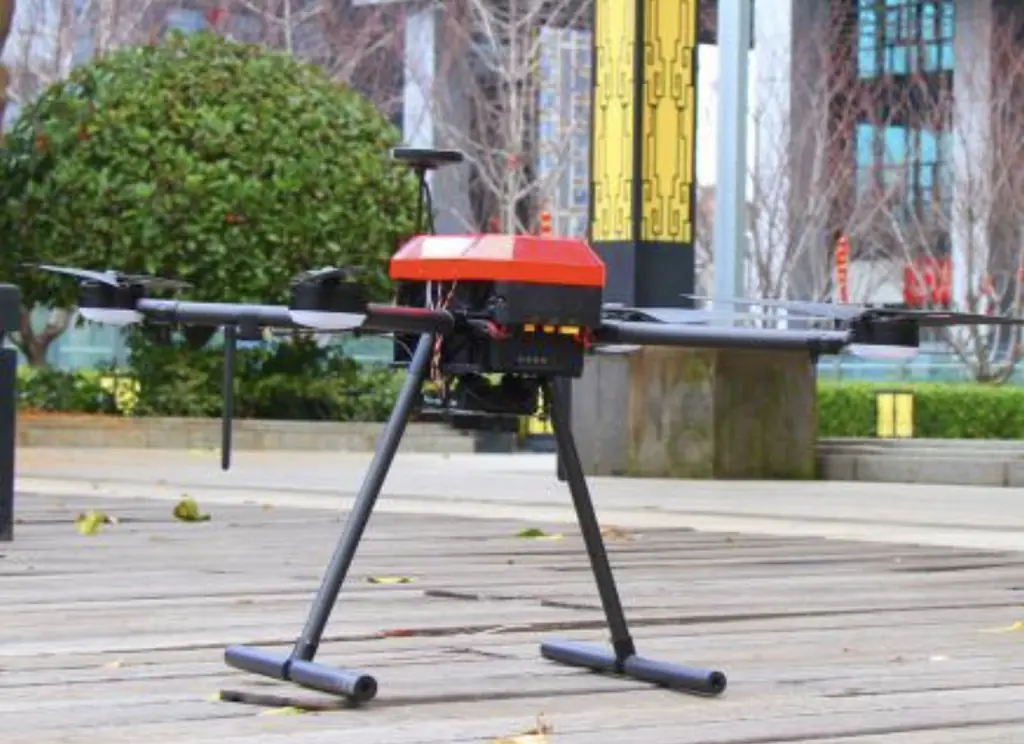

T-DRONES M-Series multirotor drones are efficient, reliable and compact aerial platforms. These VTOL drones have been developed with extensive flight tests and collaborative flight projects.
M-Series drones comply with military IPC3 and European DO-178 aviation standards. The frame uses American Cherry brand aviation standard riveting and, with a completely open Gimbal interface, the M-Series Gimbal frame offers flexibility for use with a wide range of payloads and equipment.
Suitable for multiple applications, with payloads of up to 10kg, M-Series quadcopter and multirotor drones have been designed for maximum performance.
All M-Series multirotor drones feature:
- T-MOTOR power system for long endurance, efficiency and reliability
- Lightweight aluminium design, for improved endurance capability – 30-37% increase compared to other drones of the same size and payload

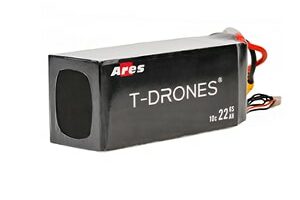

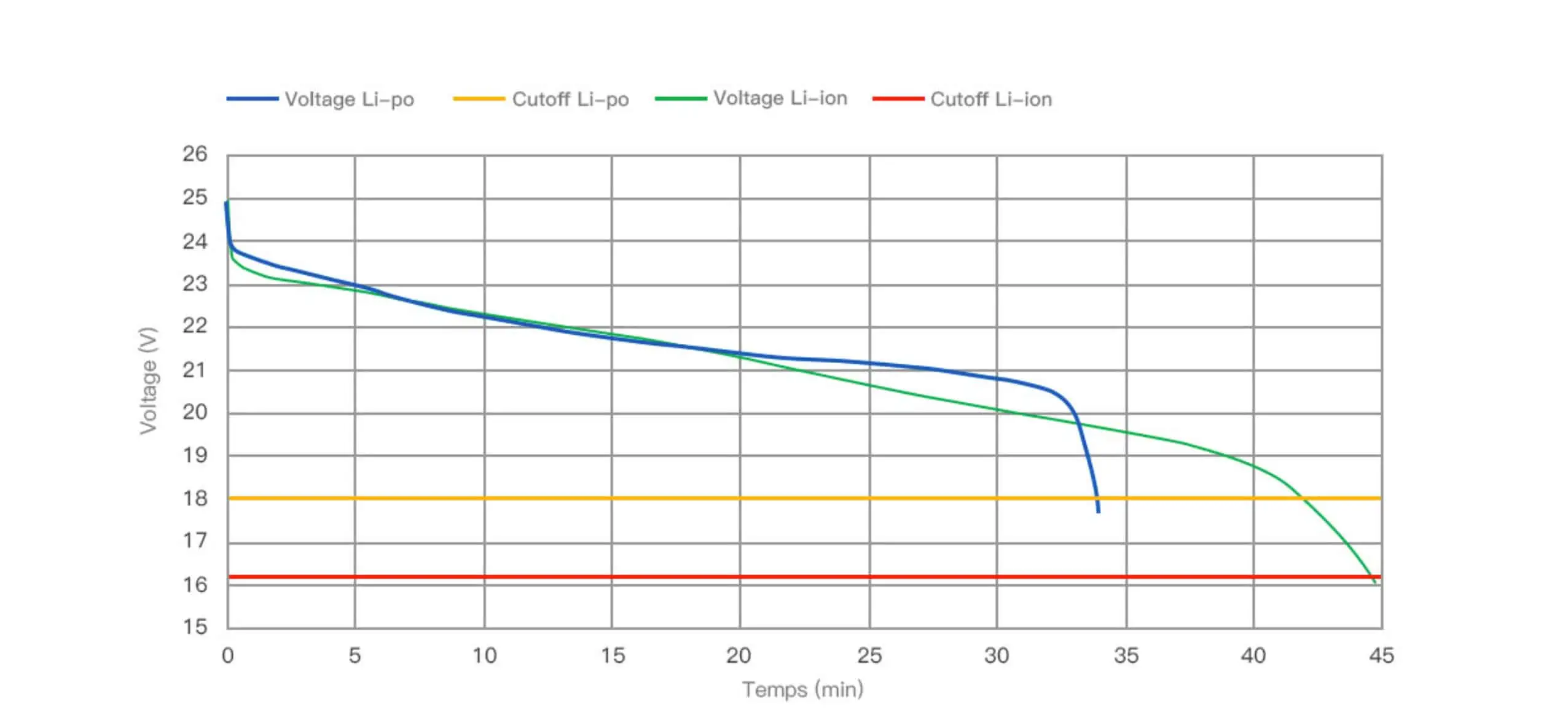

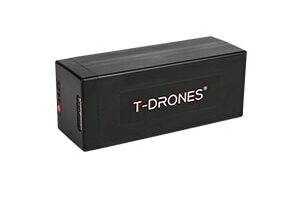

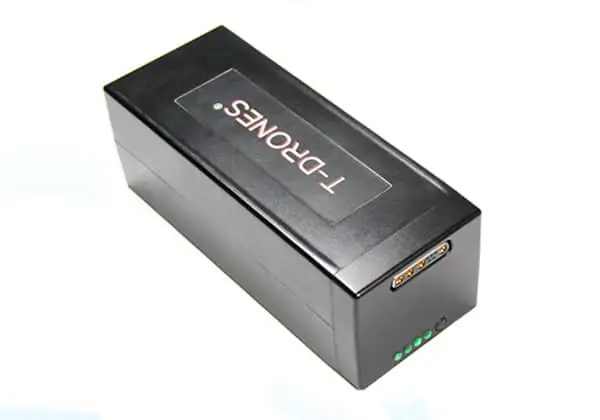

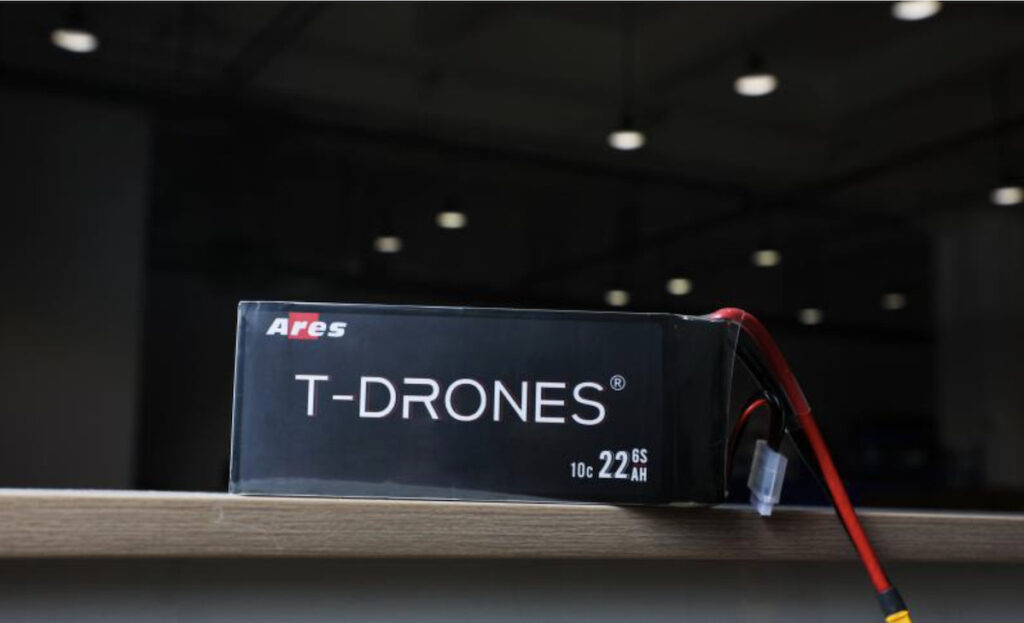

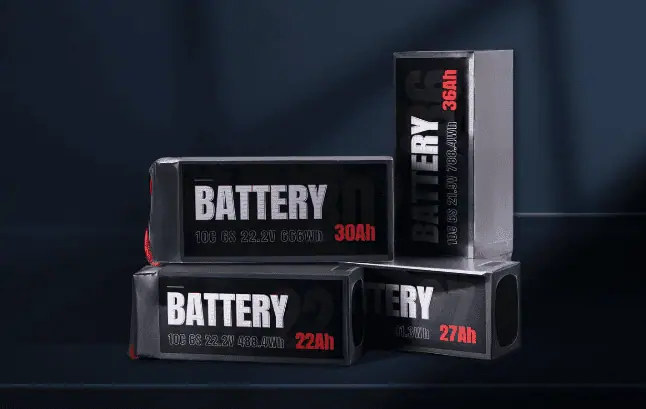

- High energy density Lithium battery for improved power management – can reach up to 72 minutes of flying
- Ultra-lightweight propellers
- Reliable Electronic Speed Controller
- Automatic LED lamp and motor debugging.
- 100-1000m Typical Altitude, 6500m asl. Max Altitude
- Force 5 (13m/s) Wind Resistance
- 10km Range
- 10~35km/h Typical Speed, 65km/h Max Speed
- T-MOTOR Power System

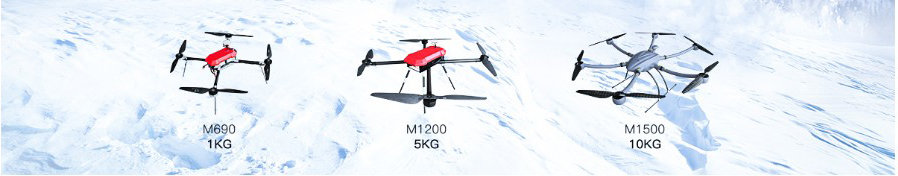

Comparison & specifications:
| Frame Size | MTOW | Flight endurance | Battery | Payload | |
 M690A |
690mm | 4.25kg | 0.5kg payload ≥ 71min 1kg payload ≥ 60min |
Smart 4S 30AH | 0.5~1kg |

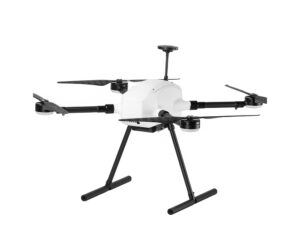

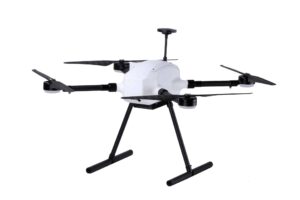

 M690 Pro |
700mm | 6kg | 1kg payload ≥ 55min 2kg payload ≥ 40min |
Smart 6S 22AH | 2kg |
 M1000 |
1000mm | 6.8kg | 1kg payload ≥ 62min 2kg payload ≥ 51min |
Smart 6S 30AH | 1~2kg |

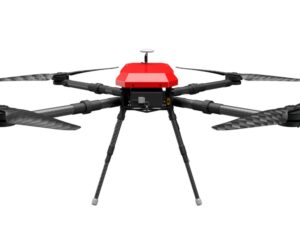

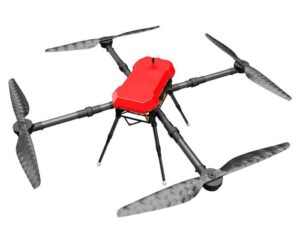

 M1200 |
1230mm | 18.5kg | 2kg payload ≥ 70min 5kg payload ≥ 60min |
Smart 12S 44AH | 2~5kg |
 M1500 |
1580mm | 23kg | 5kg payload ≥ 55min 10kg payload ≥ 41min |
Smart 12S 60AH | 5~10kg |
T-MOTOR Motors, Propellers & ESCs
Multirotor & Quadcopter Drone Motors
T-MOTOR motors for multirotor drones have been specially designed for commercial and industrial VTOL platforms.
Developed with rigorous simulation, design analysis and testing, T-MOTOR motors are precision-machined to exacting tolerances.
Drone Propellers – for multirotors and quadcopters
T-MOTOR’s high-efficiency, carbon fiber propellers are ideal for multirotor and quadcopter drones. They offer a range of propellers suitable for a range of requirements: ultra-light propellers providing a maximum thrust of 8kg or 10kg; or two- and three-blade glossy propellers that can provide a maximum thrust of up to 60kg.
Electronic Speed Controllers (ESCs) for Multirotor Drones
T-MOTOR ESCs deliver high efficiency and superior flight times for multirotor and VTOL drones. A range of sophisticated safety features, including start-up, throttle signal loss, motor lock-up and overload protection make them an ideal choice for integration in drone flight control systems.
