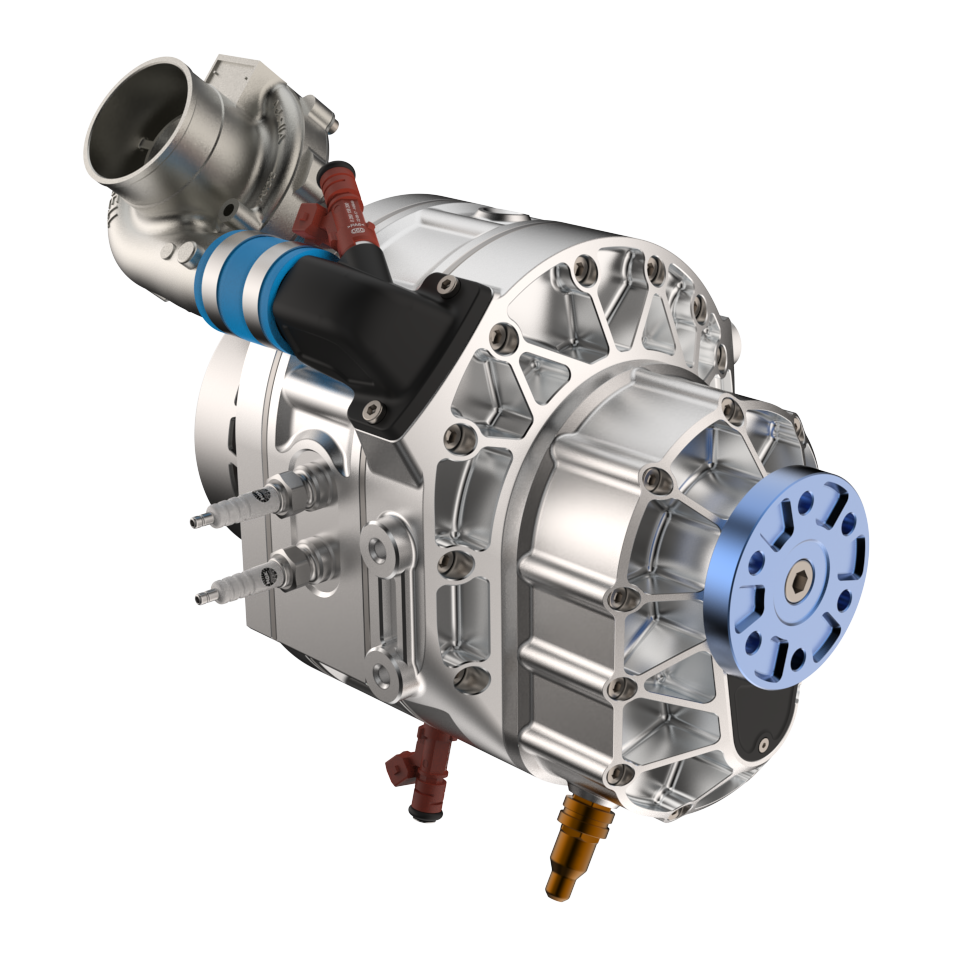

The RW1-300C is a hybrid drone propulsion unit featuring a Wankel rotary engine with integrated transmission and variable pitch propeller hub, as well as an 11kW generator and a reversible electric booster/starter. Providing low vibration and noise levels, the system is ideal for fixed-wing and VTOL UAVs with significant electrical power requirements.
The unit features twin fuel pumps and pressure regulators for enhanced reliability. The engine can run on a wide range of fuel grades, including aviation/automotive gasoline and heavy fuels such as aviation kerosene and jet fuel.
The use of modern materials and manufacturing processes in the RW1-300C has eliminated issues traditionally seen with Wankel rotary systems. The outer surfaces have been hard anodized and primed, and all connectors are sealed and mil-spec.
Specifications:
| Dimensions (L x W x H) | 330 x 280 x 280 mm |
| Weight | 17.7 kg |
| Displacement | 298 cc |
| Power | 62 hp @ 8000 rpm |
| Max Continuous Speed | 8000 rpm |
| Fuel Consumption | 200 – 220 g/kW/hr |
