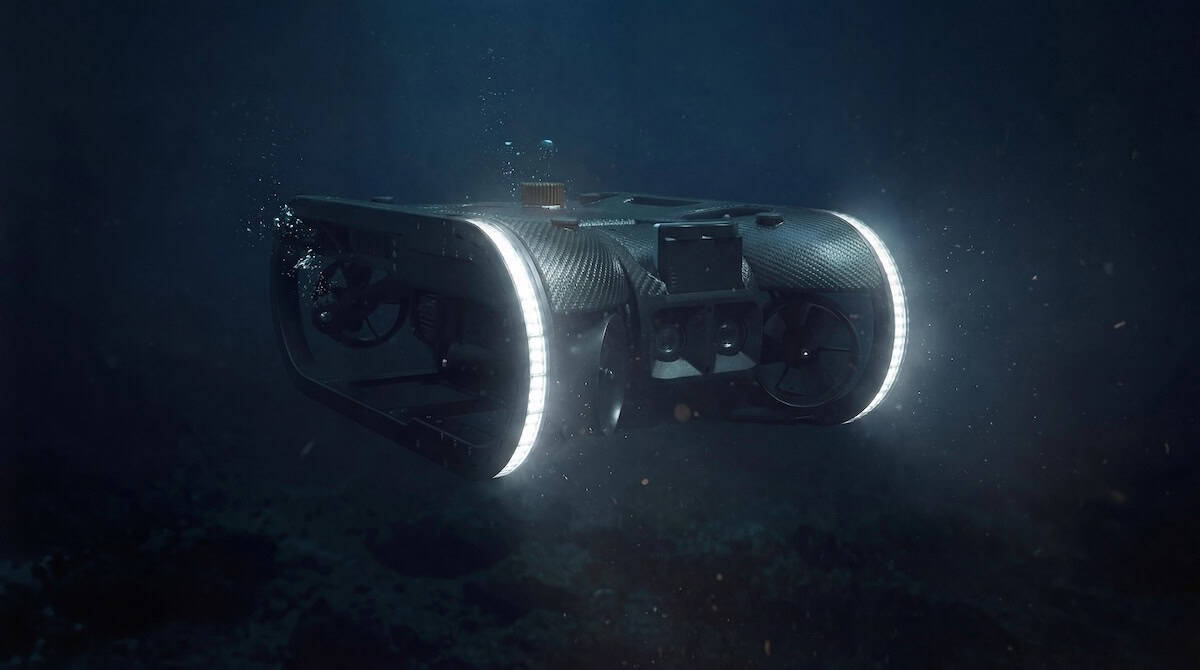

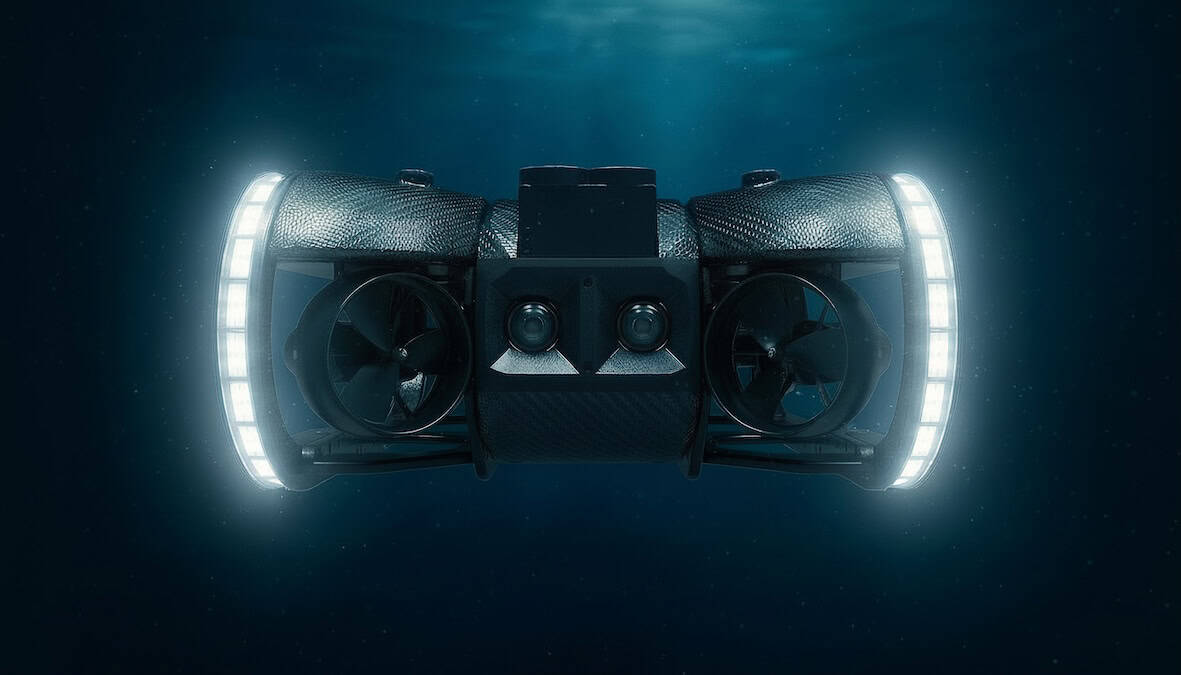

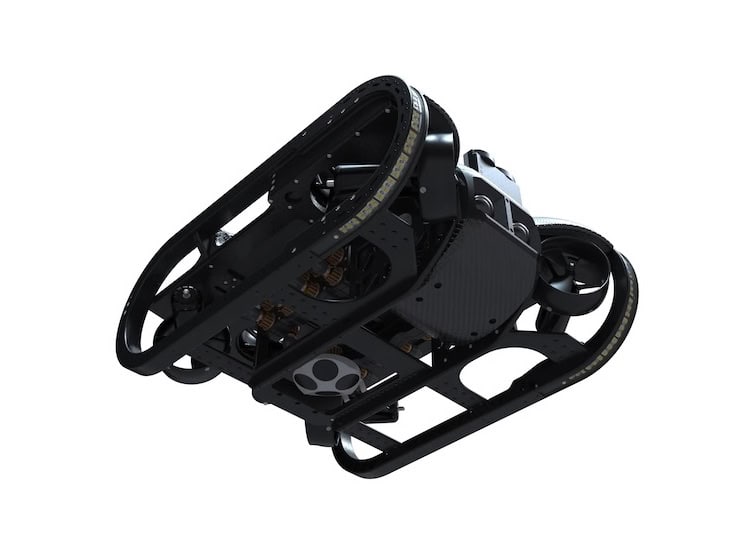

SPECTRA ROV is a remotely operated vehicle designed for offshore inspection, repair, and maintenance operations, supporting unmanned subsea missions at depths of up to 1,000 meters. The system delivers stable performance in currents up to 4 knots and is configured for rapid mobilization and modular servicing, enabling efficient deployment across extended inspection campaigns. Its compact form factor and thruster configuration support controlled maneuvering for inspection and survey tasks around subsea structures.
The vehicle integrates real-time 3D sonar SLAM with photogrammetry to enable 3D mapping, asset visualization, defect measurement, and change detection in GNSS-denied or low-visibility environments. Dual 4K stereo cameras and high-output lighting provide clear visual data capture, while onboard sonar systems support navigation and situational awareness. These capabilities enable repeatable survey workflows and consistent data acquisition for unmanned subsea inspection applications.
Specifications:
| Dimensions (L x W x H): | 790 x 586 x 296 mm (31.1 x 23.1 x 11.7 in) |
| Weight (in air): | 38 kg (84 lbs) |
| Depth rating: | 1,000 m (3,280 ft) |
| Operating temperature: | -10°C to 40°C (14°F to 104°F) |
| Camera system: | Dual 4K video with 12 MP imaging |
| Lighting: | Dual LED light frame, 300,000 lumens total |
