CM62

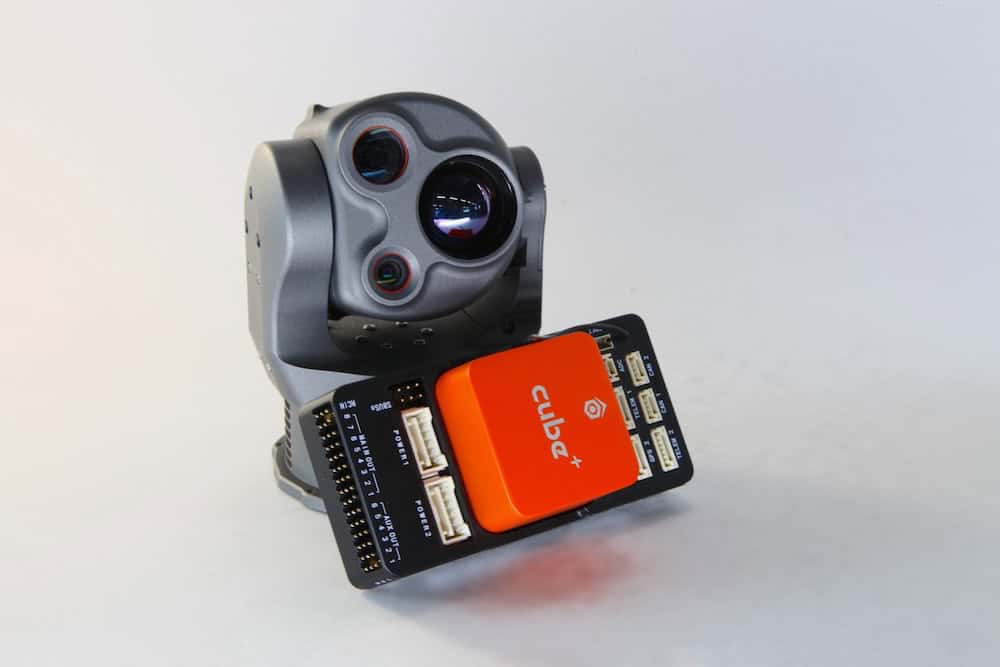

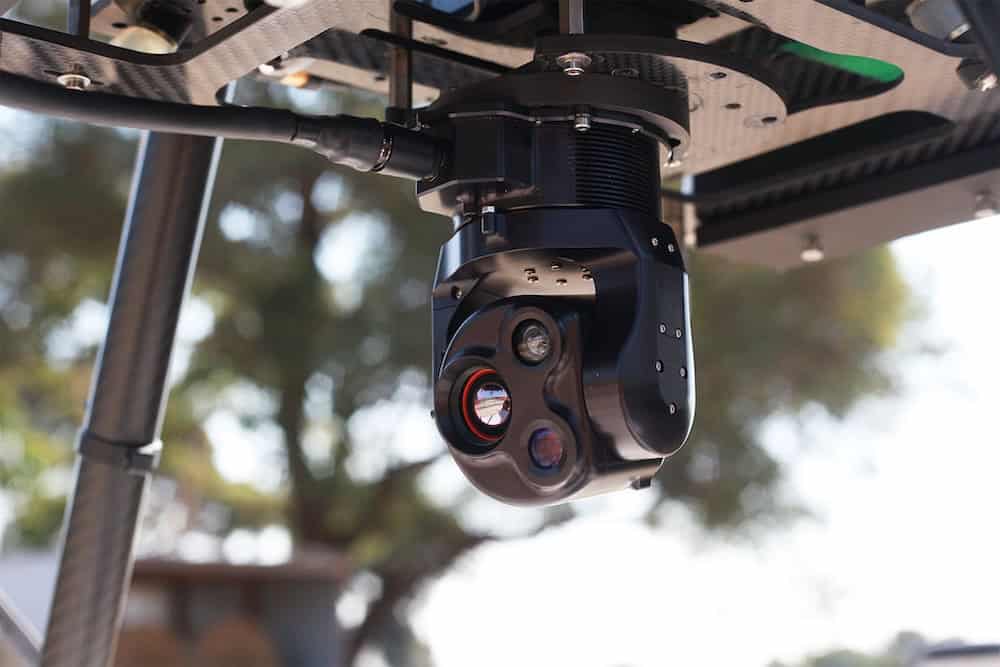

CACI International’s CM62 family of micro gimbals provides gyro-stabilized multi-sensor imaging for Group 1 and 2 UAS in an ultra-miniature package that weighs just 260 to 290 grams. Ideal for ISR (intelligence, surveillance and reconnaissance), the low-SWaP payloads are MAVlink-compatible, enabling easy integration into your drone platform and allowing autopilot and gimbal to be controlled from the same tablet.
CM62 gimbals are ruggedized to IP67 standards, and feature a comprehensive suite of onboard video processing features including automatic target identification, tracking, scene steering, e-stabilization and roll stabilization.

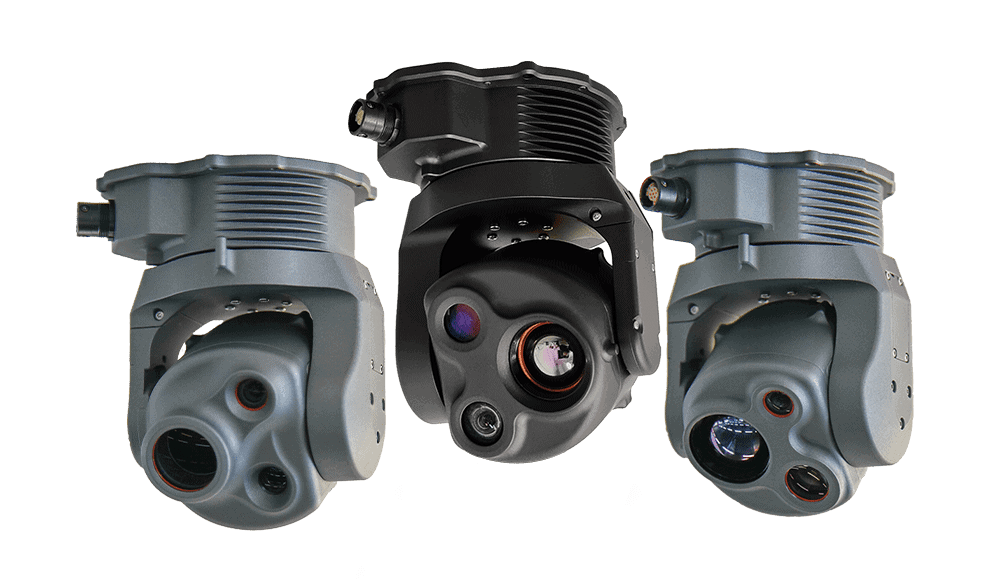

The product range includes:
- CM62 Standard – high-resolution EO & LWIR sensors
- CM62 Tri-Zoom EO+ – intermediate lens for enhanced mid-range daytime performance and a longer focal-length narrow lens for more pixels on target
- CM62 LWIR+ – 18° HFOV provides 84% more pixels on target than standard configuration
Specifications:
| Standard | LWIR+ | EO+ | |
| Weight: | 260g 0.57 lbs |
265g 0.58 lbs |
290g 0.64 lbs |
| Max Swept Diameter: | 76mm 3” |
76mm 3” |
78mm 3.1” |
| Ball Swept Diameter: | 65mm 2.6” |
65mm 2.6” |
65mm 2.6” |
| Height: | 103mm 4” |
103mm 4” |
103mm 4” |
| Elevation: | +90° - 210° from horizontal | +90° - 210° from horizontal | +50.5° - 210° from horizontal |
| Azimuth: | ±172° (Simulated 360° Continuous Rotation) | ±172° (Simulated 360° Continuous Rotation) | ±172° (Simulated 360° Continuous Rotation) |
| EO: | 1080p, 720p, 640x480 HFoV Continuous 56° to 1.2° 30 Hz frame rate |
1080p, 720p, 640x480 HFoV Continuous 56° to 1.2° 30 Hz frame rate |
1080p, 720p, 640x480 HFoV Continuous 56° to 0.8° Spotter 5° to 0.8° 30 Hz frame rate |
| LWIR: | 640x480 HFoV 32o 30 Hz frame rate |
640x480 HFoV 18o 30 Hz frame rate |
N/A |
