CM41

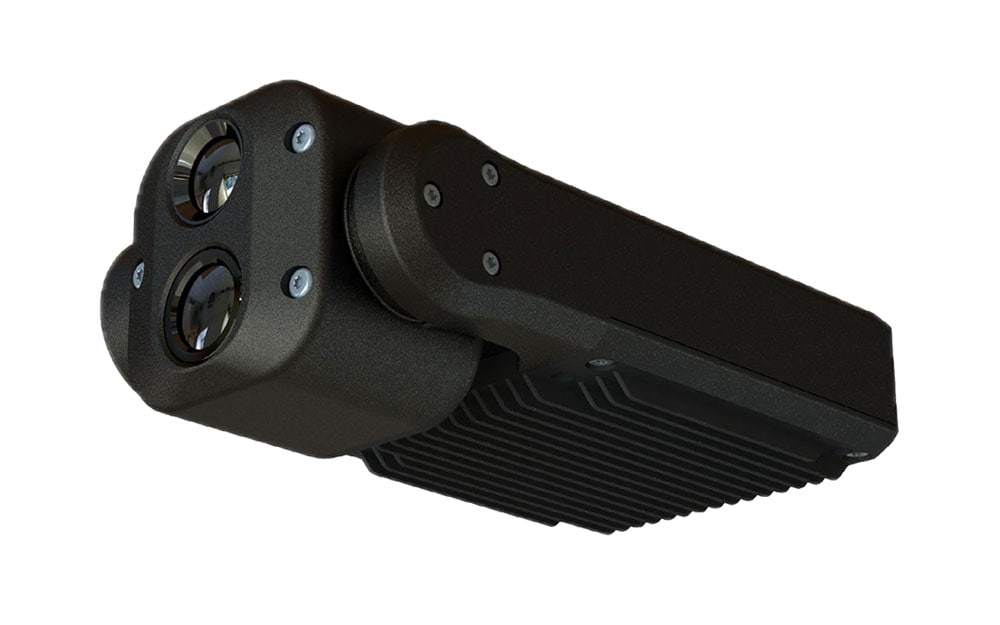

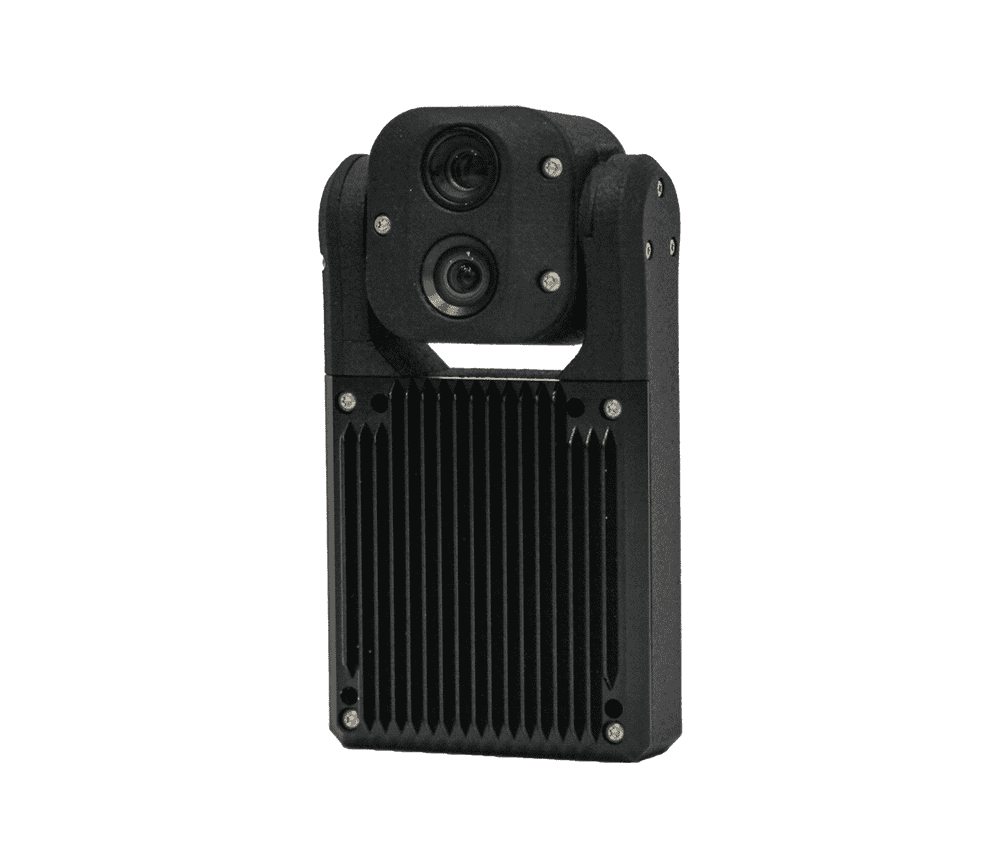

CACI International's CM41 is a compact and cost-effective EO imaging system that is designed for integration into small UAS. Weighing just 160g (0.35 lbs), it features full HD sensors with 18x zoom and tilt capability, and is compatible with MAVLink for versatile setup and easy integration.
Ideal for ISR (intelligence, surveillance and reconnaissance), the payload utilizes the latest H.264 and H.265 video encoding capabilities, and includes a comprehensive suite of on-board video processing features, including object detection and recognition, e-stabilization, and roll stabilization.
Specifications:
| Dimensions (D x L): | 48 x 114 mm 1.9 x 4.5” |
| Weight: | 160g 0.35 lbs |
| Elevation: | -66° / -180° from horizontal |
| Resolution: | 1080p, 720p, 640x480 |
| HFoV: | 56° to 3.36° |
| Frame rate: | 30 Hz |
