CM102

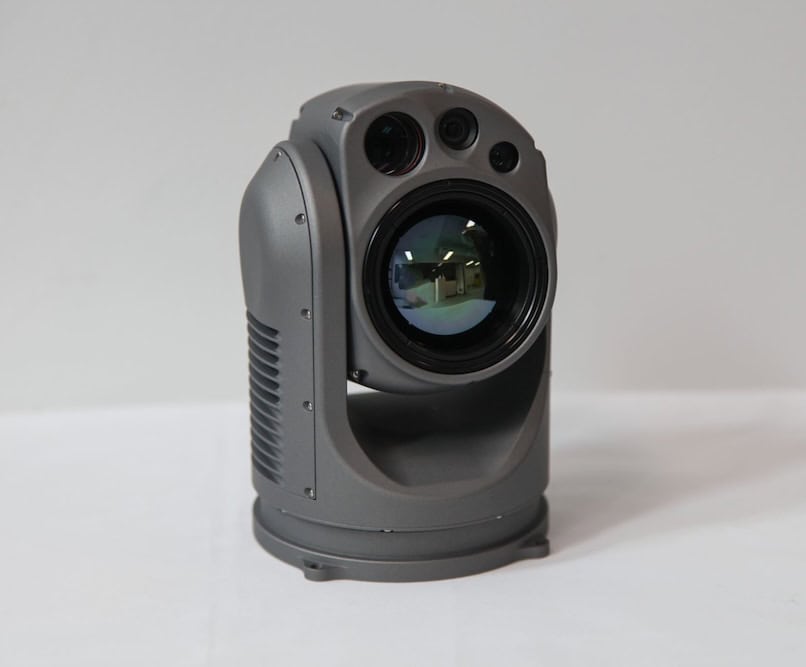

CACI International's CM102 gimbal combines high-definition EO and LWIR sensors in a compact two-axis stabilized package that is designed to provide long-range ISR capabilities for Group 1 and 2 UAS. Rated IP65 as standard with optional IP67 protection, the rugged payload is engineered to withstand the harshest of operating conditions.
Weighing less than 900g (2 lbs), the low-SWaP gimbal features fully integrated video processing and H.264/H.265 encoding, and offers a wide range of advanced features including target detection, recognition and tracking as well as e-stabilization and roll stabilization. MAVLink compatibility enables easy integration into a wide range of drone platforms.
Specifications:
| Dimensions (D x H): | 100 x 150 mm 3.94 x 5.9” |
| Weight: | <900g <1.98 lbs |
| Elevation: | +90° / -110° from horizontal |
| EO Sensor: | Color CMOS Resolution 1080p, 720p, 480p HFoV 56° to 0.8° (at 640x480 resolution) 75x Zoom Frame Rate 30 Hz @1080p |
| LWIR Sensor: | Uncooled LWIR Resolution 1280x1024 HFoV 17.6° (at 720p resolution) Focal Length 50mm Frame Rate 30 Hz @720p (configurable for 9Hz output) |
