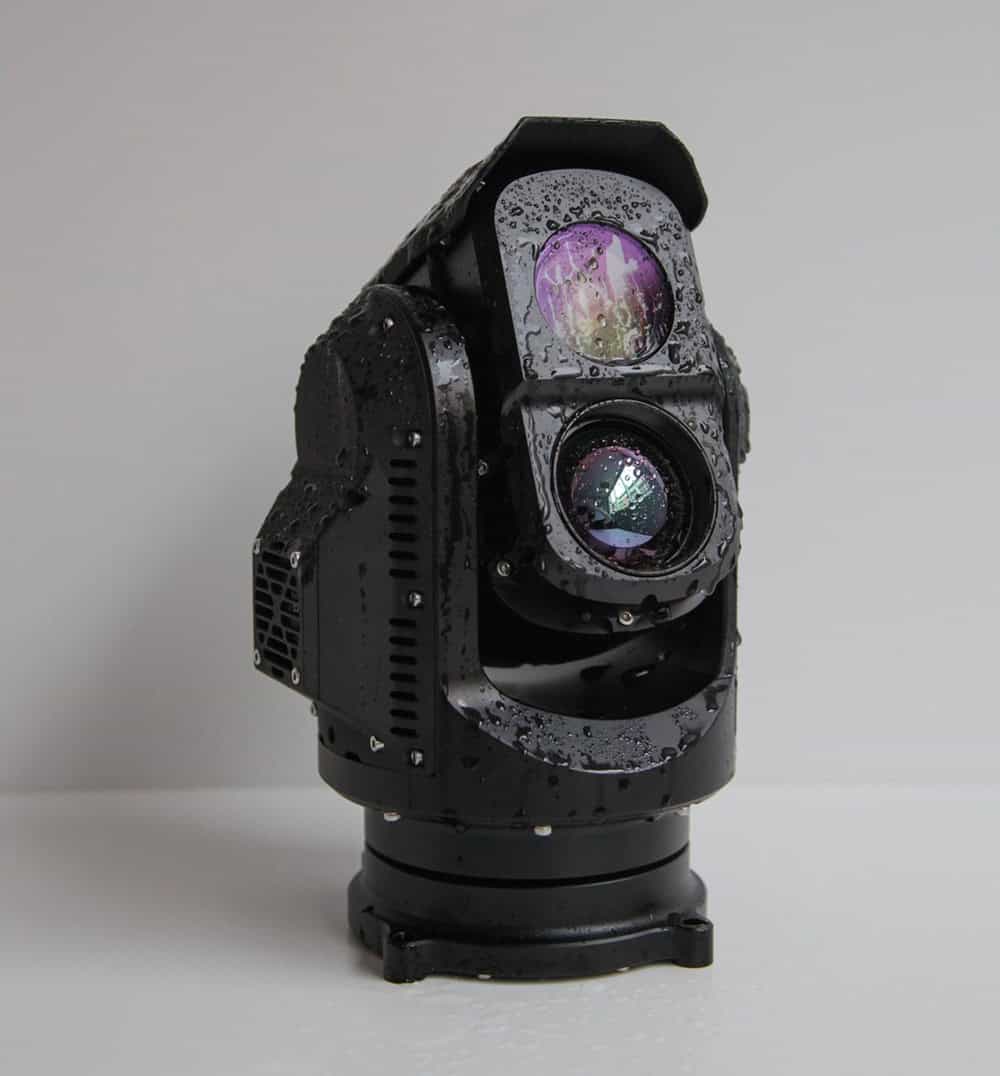

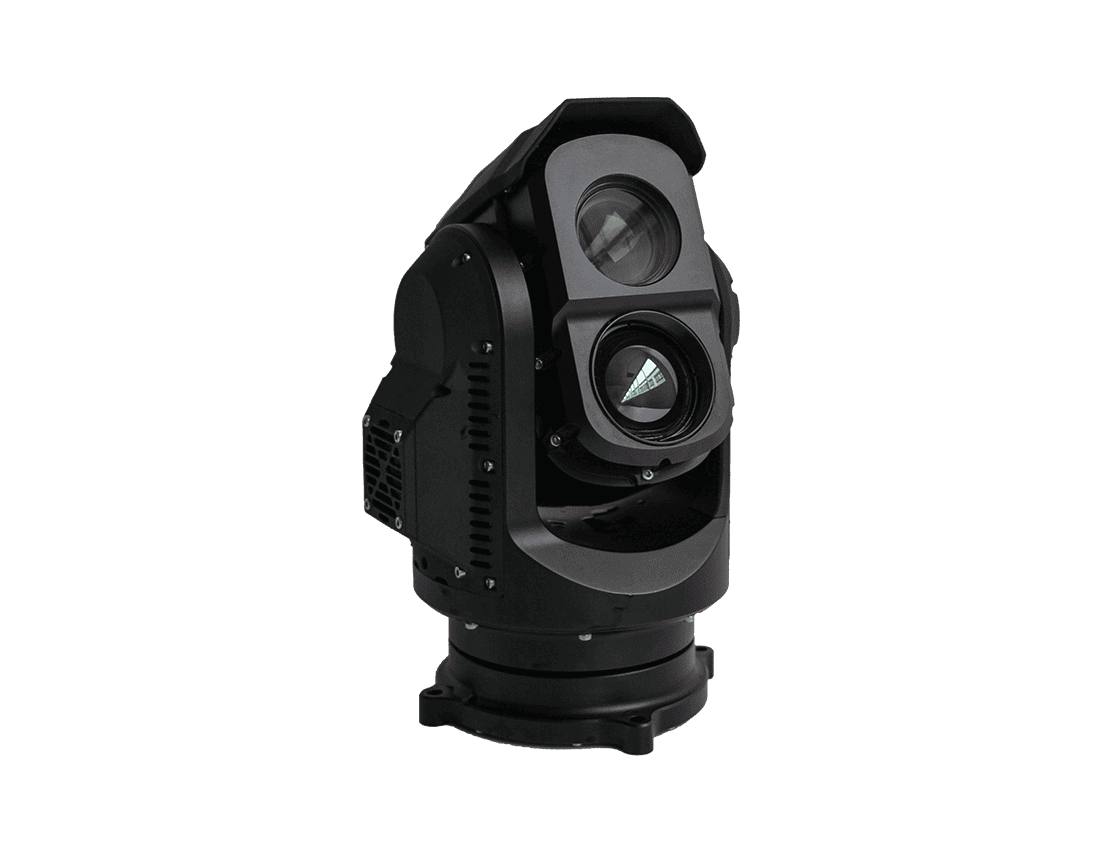

CACI International's CM102-MR gimbal has been specially designed to suit the requirements of marine and land-based unmanned systems platforms such as USVs (uncrewed surface vessels), ASVs (autonomous surface vessels) and UGVs (unmanned ground vehicles). Providing both high-definition EO and LWIR imaging capabilities with two-axis active stabilization, it delivers reliable results even in rough sea states.
The rugged payload is designed to MIL-STD-810H standards for salt fog resistance, and is also IP67-rated. Cutting-edge onboard AI and machine learning processing enables a range of advanced functionality including object detection, tracking, and recognition. MAVLink compatibility enables easy integration into a wide range of drone platforms.
Specifications:
| Dimensions (D x H): | 195 x 222 mm 7.67 x 8.74” |
| Weight: | 2.2 kg 4.85 lbs |
| Elevation: | +90° / -90° from horizontal |
| Azimuth: | 360o continuous |
| EO Sensor: | Color CMOS 1920 x 1080p HFoV 61.5° to 0.8° 83x Zoom Frame Rate 30 Hz @1080p |
| LWIR Sensor: | Uncooled LWIR Resolution 1280x720 HFoV 17.6° Focal Length 50mm Frame Rate 30 Hz @720p (configurable for 9Hz output) |
