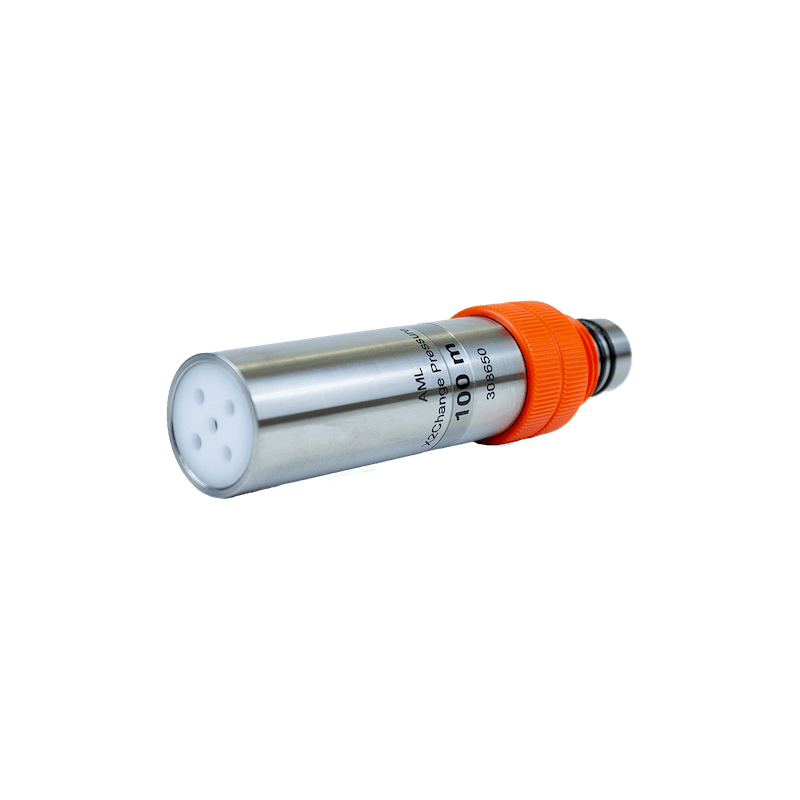

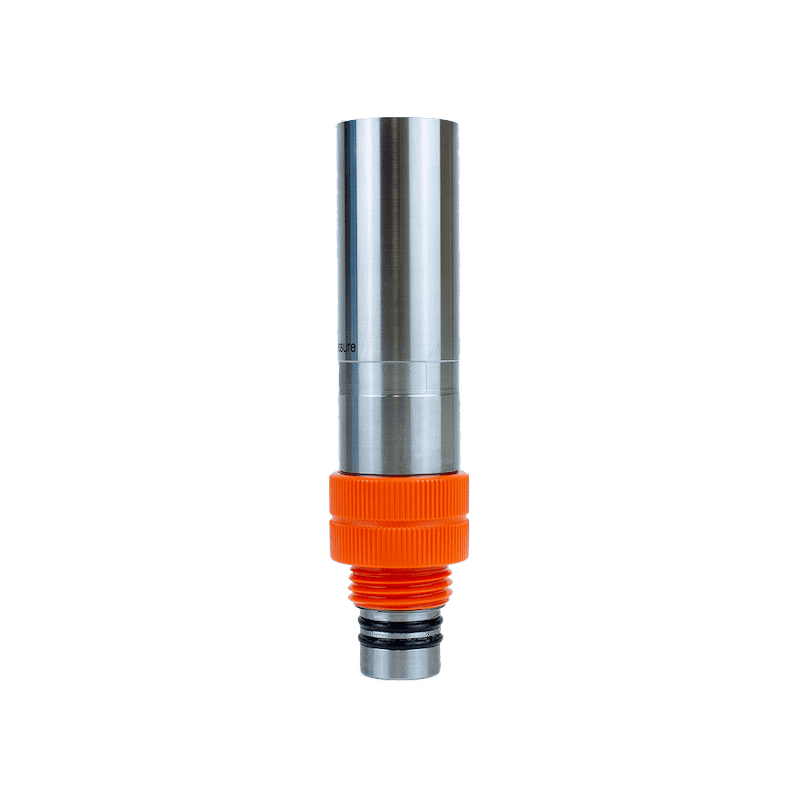

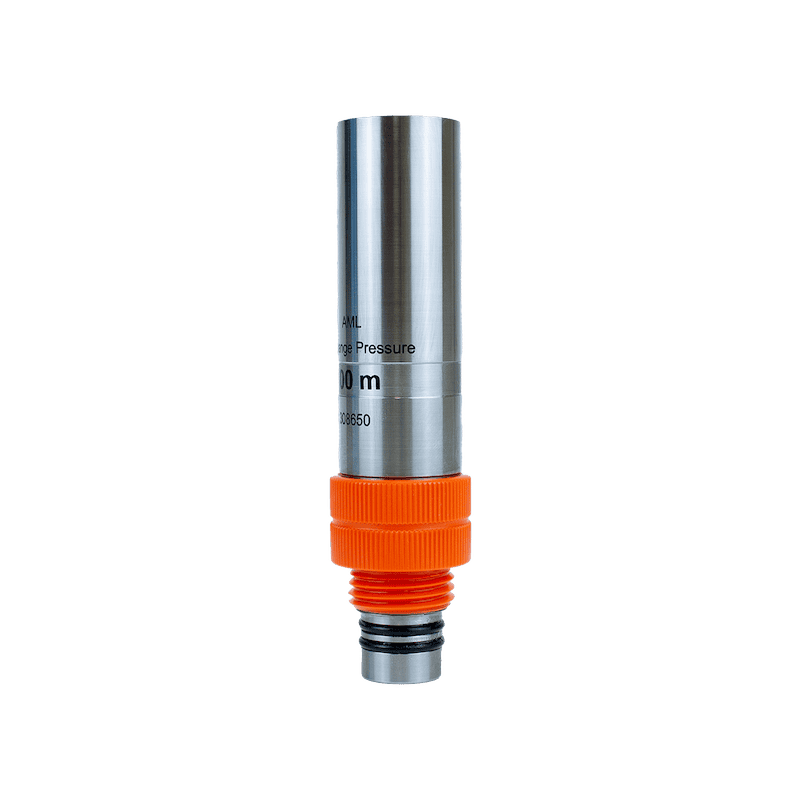

High-Accuracy Pressure Sensor
Part of the X2Change product range, AML's High-Accuracy Pressure Sensor is a field-swappable unit designed to be installed directly onto the end cap of the company's AML-1, AML-3, and AML-6 instruments, as well as into OEM and third-party equipment. The sensor is ideal for applications with minimal changes in the environment or in deep water when the full scale is larger.
Each sensor head contains its own embedded calibration, allowing it to be moved to different instruments without affecting accuracy. This approach reduces downtime, enabling organizations to efficiently keep their instruments field-ready by stocking spare calibrated sensor heads.
Specifications:
| Max Depth | 100 m - 6000 m |
| Range | 0 to 6000 dBar |
| Precision (+/-) | 0.01 % FS |
| Accuracy (+/-) | 0.01 % FS |
| Resolution | 0.01 % FS |
| Response Time | 10 ms |
