Custom & COTS Hardware & Software Products for UAVs & Unmanned Systems

allocortech, a leading developer of custom and COTS hardware and software solutions designed for incorporation into next-generation unmanned systems in all domains, is a trusted and valued supplier partner on Unmanned Systems Technology.

As a continued supplier partner, UST is highlighting the company’s unique solutions and capabilities via the allocortech supplier profile, showcasing their product portfolio as well as their bespoke design and development services, which can take even the most unique projects from concept to reality.

Read on to find out more:

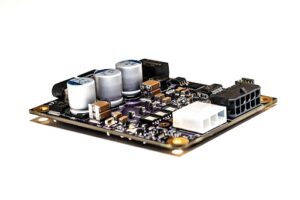

Taurus BLDC motor controllers utilize full four-quadrant Field Oriented Control (FOC) and Space Vector Pulse Width Modulation (SVPWM) to achieve the utmost in efficiency. All models also offer customized control loops for speed, torque, voltage, power, and other more advanced modes, as well as bi-directional communications.

The controllers support active regenerative braking, and can also be integrated into a generator system to form the basis of a hybrid electric powertrain.

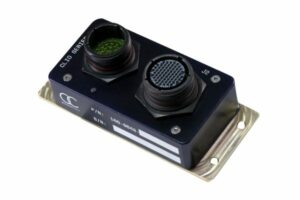

Clio Series B Power & Data Hub is an all-in-one computation, communications, and power distribution hub designed to save harness weight and space in constrained vehicle designs. It can be utilized as a high-powered flight computer or just a low-power data and power switch, and is provided with our board support and application framework to allow developers to utilize only the functionality that they need.

Based around a STM32H7 microcontroller and Xilinx Spartan 7 FPGA, Clio runs FreeRTOS as standard with lwIP integration, and provides 2 Ethernet and 17 serial ports, 9 switched power outputs and various GPIO with an array of customizable options.

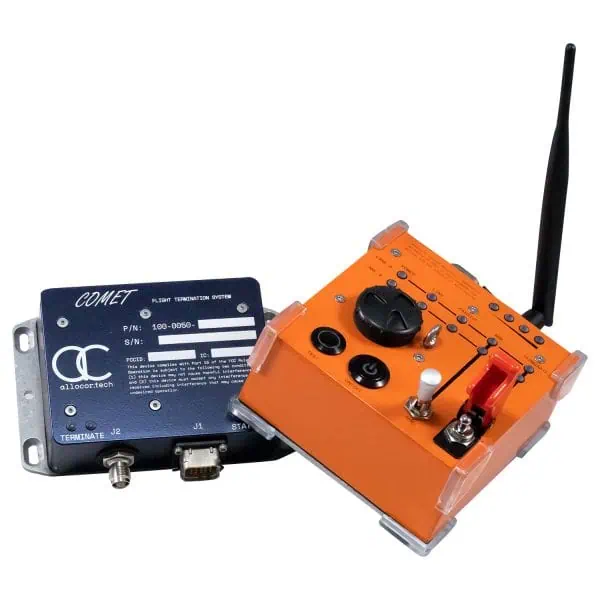

Comet is a radio-linked remote-stop and flight termination system that has been rigorously designed to ensure that no single failure causes termination. The solution consists of a Vehicle unit and an Operator unit, and includes dual redundant processing and redundant termination circuits, as well as dual Ethernet or dual CAN-FD telemetry links.

One Vehicle unit can support up to two Operator units as standard in line-of-sight operation, and options are available for BVLOS (beyond visual line of sight) operation as well as support for up to eight Operator units.

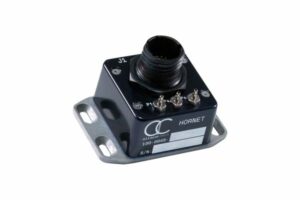

The Hornet is a versatile and low-SWaP sensor hub that offers a diverse set of functionality including differential and barometric pressure sensing, Outside Air Temperature (OAT), RTD, Angle-of-Attack (AoA), and Sideslip sensor interfaces, as well as dual magnetometers, dual accelerometers and dual gyroscopes.

Powered by an ARM Cortex-M4 processor, the Hornet delivers real-time sensor data processing and reporting. The system is provided with an open-platform C++ SDK that allows it to be configured to your exact requirements.

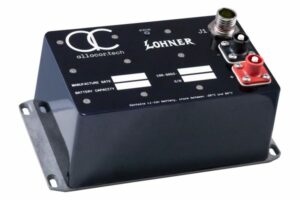

Lohner is a high energy density LiPo smart battery solution designed to provide high-availability standby power for mission-critical UAVs and unmanned systems. The unit offers a full-featured monitoring and control system, as well as an externally-visible LED for at-a-glance status display.

With an 8000 mAh capacity and 18 to 25.2V output voltage, the Lohner Smart Battery is rated to deliver 50A until battery depletion, or up to 100A for 30 seconds.

To find out more about allocortech and their custom and COTS hardware and software solutions for drones and unmanned systems, please visit their profile page:
https://www.unmannedsystemstechnology.com/company/allocortech/
