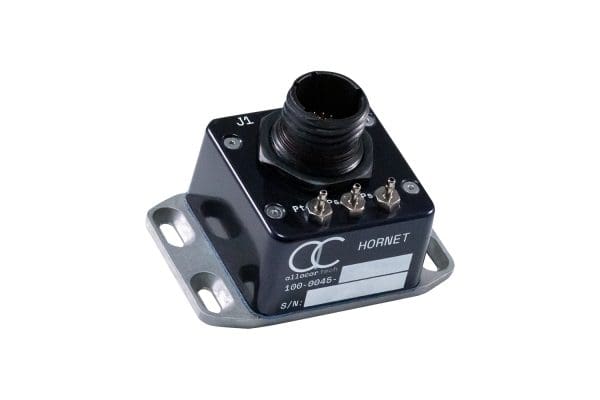

Hornet Sensor Hub
The Hornet is a compact and lightweight sensor hub measuring just 3 x 2 x 2", offering a diverse set of functionality including differential and barometric pressure sensing, Outside Air Temperature (OAT), RTD, Angle-of-Attack (AoA), and Sideslip sensor interfaces, as well as dual magnetometers, dual accelerometers and dual gyroscopes.
Powered by an ARM Cortex-M4 processor, the Hornet delivers real-time sensor data processing and reporting, supporting both CAN 2.0 and full-duplex RS-422 for versatile telemetry capabilities. The system is provided with an open-platform C++ SDK that allows it to be configured to your exact requirements.
Specifications:
| Dimensions: | 3 x 2 x 2” |
| Weight: | 125g |
| Power Consumption: |
5-48V 1W typical, 1.6W max |
| CPU: |
STMicro STM32F427II 180MHz 32-bit ARM® Cortex®-M4 with FPU 2MB Internal Flash 256KB Internal RAM |
| Communications: |
CAN 2.0, 1Mbps Max Bitrate RS-422 Full-Duplex, 1Mbps Max Bitrate |
| Static Pressure Sensors: |
0 – 103.4kPa 24-bit resolution ±0.25% or 250Pa |
| Differential Pressure Sensors: |
±6kPa 24-bit resolution ±0.25% or 15Pa |
| Outside Air Temperature Sensors: |
100Ω RTD 3- or 4-wire |
| Angle-of-Attack & Sideslip Inputs: |
DC: 0.5V-4.5V 12-bit FM: 1Hz – 5kHz PWM: >= 200µs |
