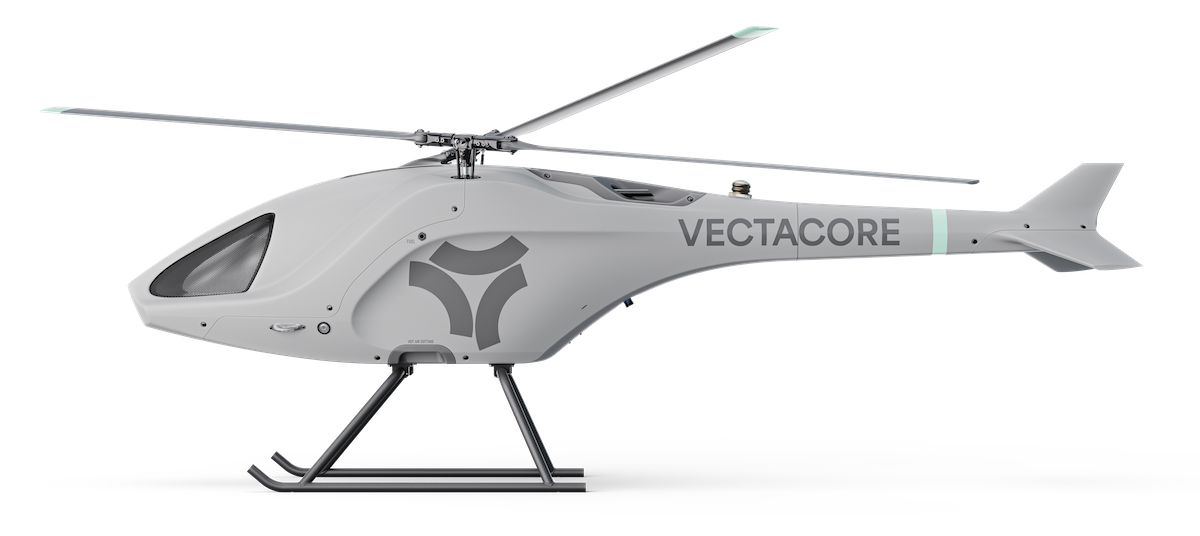

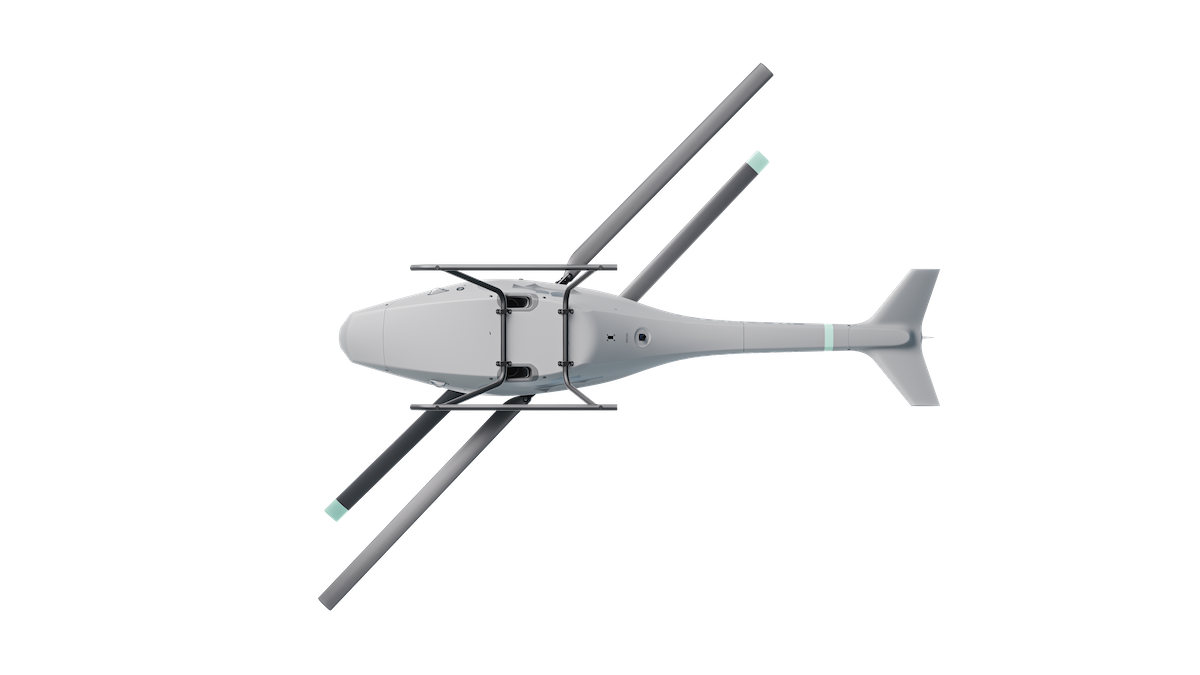

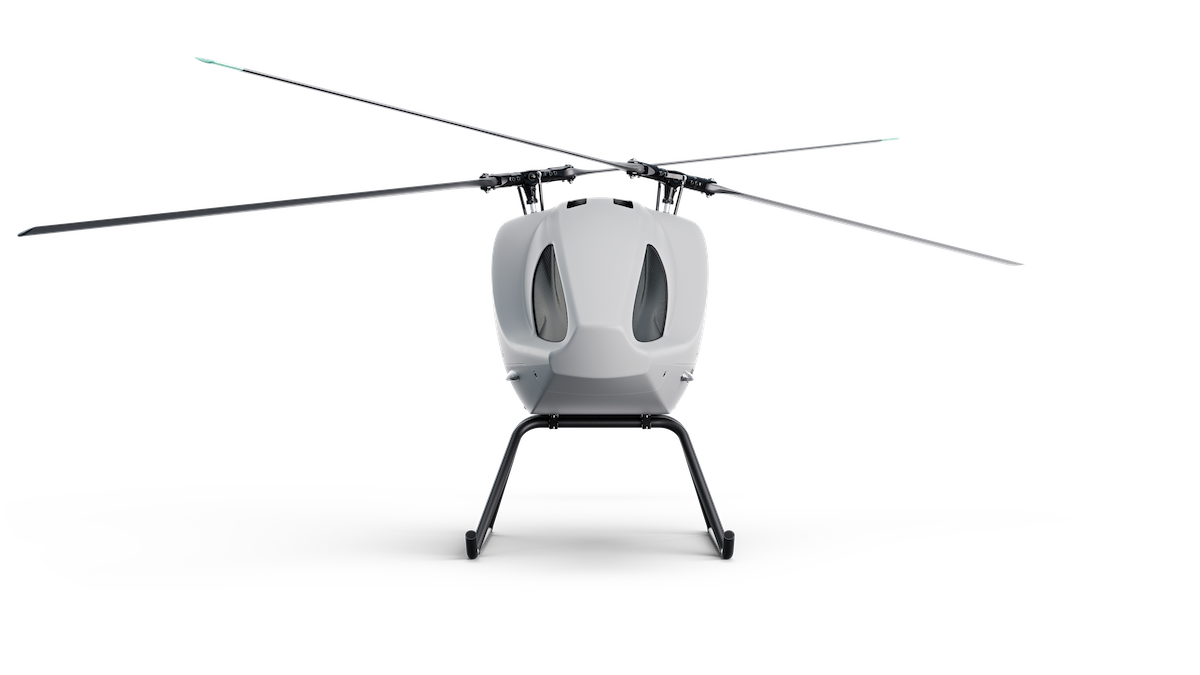

The VC-35 is an integrated unmanned aircraft system combining the VC-35G helicopter, VC-DLR-X long-range data link and VC-GCS-TAC rugged ground control station. Powered by an efficient gasoline boxer engine, the aircraft delivers 3 to 6 hours of endurance and a maximum payload capacity of 35 kg. Its synchronized Flettner double rotors maintain stable flight in winds of up to 40 km/h, making it ideal for offshore cargo delivery and demanding industrial and public safety missions.
Four payload mounting positions accommodate a wide range of equipment including cargo boxes, inspection cameras and scanners, and LiDAR equipment for geospatial data collection. The aircraft supplies up to 800 W of external power for onboard equipment.
The VC-DLR-X provides real-time communications over distances of up to 200 km, with L-, S- and C-band configurations available. A compact ground or vehicle module offers a typical 10 km range, and a tripod- or mast-mounted radome enables longer-range links.
Housed in two protective carry cases, the VC-GCS-TAC provides mission planning. Operators can monitor live telemetry and override or abort automated missions.
Specifications:
| Aircraft Dimensions (L x W x H) | 2.98 x 2.99 x 1.25 m |
| Aircraft Weight | 48–53 kg, depending on configuration |
| Maximum Payload | 35 kg |
| Flight Endurance | 3–6 hours |
| Maximum Flight Speed | 108 km/h |
| Wind Tolerance | Up to 40 km/h |
| Fuel Capacity | 6–9 L; gasoline mix 1:50 |
| Payload Mount Capacities | Nose: 1 kg; side: 20 kg symmetrical; belly / landing skid: 30 kg; tail: 5 kg, excluding counterbalance |
| Onboard Voltage | 14 / 28 / 48 V |
| External Power Available | Up to 800 W |
| Data Link Range | Ground / vehicle module: typically 10 km; radome configuration: up to 200 km |
| Data Link Bandwidth | 1.25 / 2.5 / 5 / 10 MHz |
| Ground Control Station Weight | Up to 30 kg |
| Ground Control Station Displays | 14–15.6 inches; brightness up to 1,000 nits |
| Ground Control Station Input | External 12 VDC |
