The HD59 from Trillium Engineering is a compact 5.8-inch EO/IR gimbal developed for sUAS, mid-sized platforms, and launched effects. Designed to meet low SWaP constraints, it supports long-range reconnaissance, medium-range ISR, and multi-domain operations. All models incorporate onboard AI/ML processing, precision geopointing, and multi-sensor payloads tailored for situational awareness in environments where GPS may be denied or degraded.

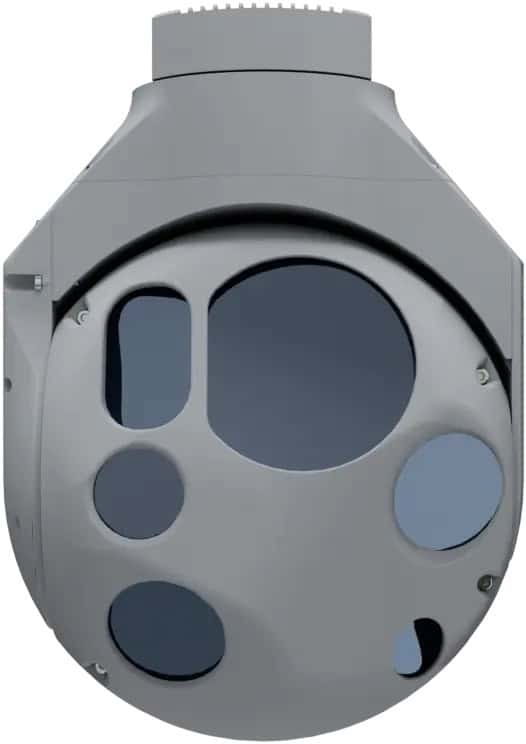

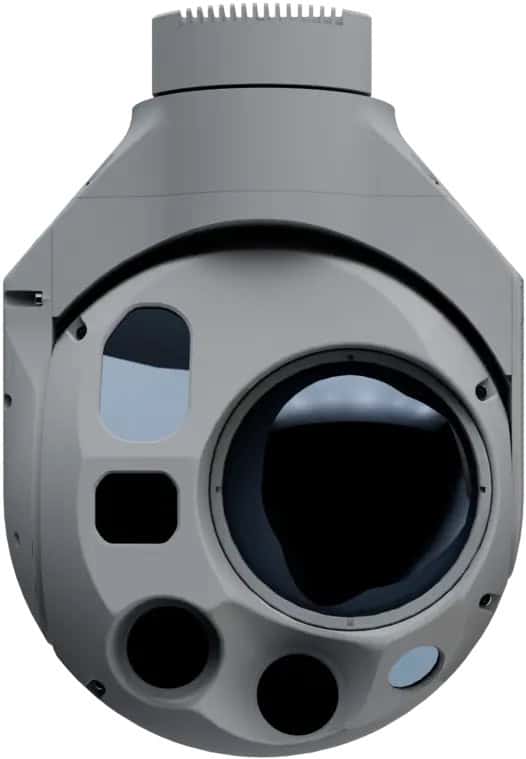

The series includes three configurations aligned with diverse mission requirements. The HD59-LLVV features dual LWIR and dual EO sensors with 180x visible zoom, optimized for daylight and nighttime operations. The HD59-MLVV introduces MWIR capability for extended-range identification, while maintaining visible and infrared coverage. The HD59-MLVS integrates MWIR, LWIR, EO, SWIR, and a 50 mJ laser designator in a unit weighing under 2 kg. Each variant supports ISR tasks such as border security, maritime domain awareness, infrastructure monitoring, and extended defense operations requiring a reliable, low SWaP-C imaging solution.
Specifications:
| HD59-LLVV | HD59-MLVV | HD59-MLVS | |
| Dimensions (D x H) | 5.8 x 7.9 in | 5.8 x 7.9 in | 5.8 x 7.9 in |
| Weight | 1600 g | 1850g | 1900 g |
| Power Consumption |
20W average 100W peak |
20W average 100W peak |
20W average 100W peak |
| Cameras |
LWIR 640 x 512 LWIR 640 x 512 Visible 1920 x 1080 |
MWIR 640 x 512 LWIR 640 x 512 Visible 1920 x 1080 |
MWIR 1280 x 1024 LWIR 640 x 512 Visible 1920 x 1080 SWIR 640 x 512 |
| FOV/DFOV |
29° - 5.9° - 3° 32° - 16° 45° - 1.5° - 0.3° |
21.7° - 2.2° - 1.1° 32° - 16° 45° - 1.5° - 0.3° |
5.6° - 1.4° 18.2° - 9.1° 16.9° - 3.5° - 0.6° 5.7° - 2.9° |
