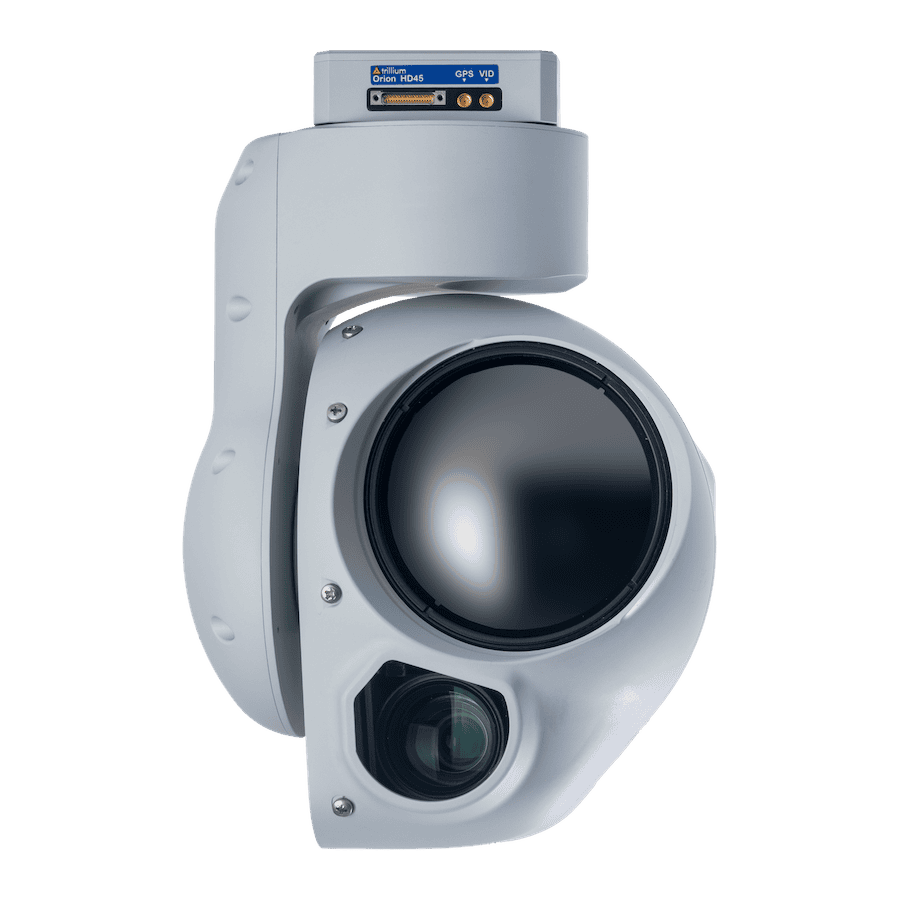

HD45 Drone Camera Gimbal
The HD45 is a lightweight and compact EO/IR drone gimbal housed in a machined magnesium enclosure with robust environmental sealing. Delivering 720p HD digital H.264-compliant video output, it is available with a 5x optical zoom uncooled LWIR camera and either 5x or 10x optical zoom visible camera. It also incorporates an 850 nm night vision-compatible laser pointer.
The onboard GPS-aided INS is co-located with the cameras and allows the gimbal to provide real-time geopointing and geolocation for high-accuracy targeting. Advanced embedded video processing features include scene tracking and target tracking. The gimbal can be controlled via Ethernet or serial, and video can be output via Ethernet or analog interface.
| HD45-LV-CZ | HD45-LV-CZ-GS | |
| Dimensions (D x H) | 5.3 x 7.3” | 5.3 x 7.3” |
| Weight | 1280g | 1330g |
| Power Consumption | 15W average, 75W peak | 15W average, 75W peak |
| Cameras |
720p 3x zoom Rolling Shutter Visible LWIR 640 with 5x continuous zoom lens |
720p 10x zoom Global Shutter Visible LWIR 640 with 5x continuous zoom lens |
| FOV | Visible: 47.7° – 1.8° |
Visible: 54° – 4.9° Thermal: 18.2° |
| Export | BIS-controlled | BIS-controlled |
