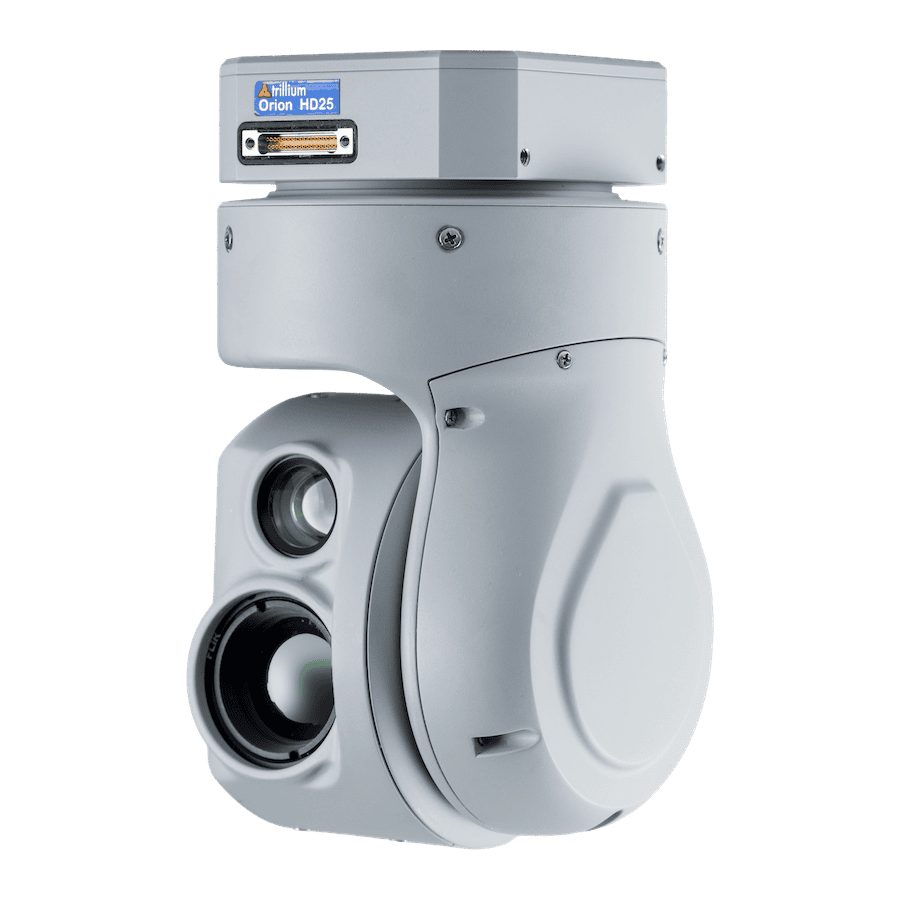

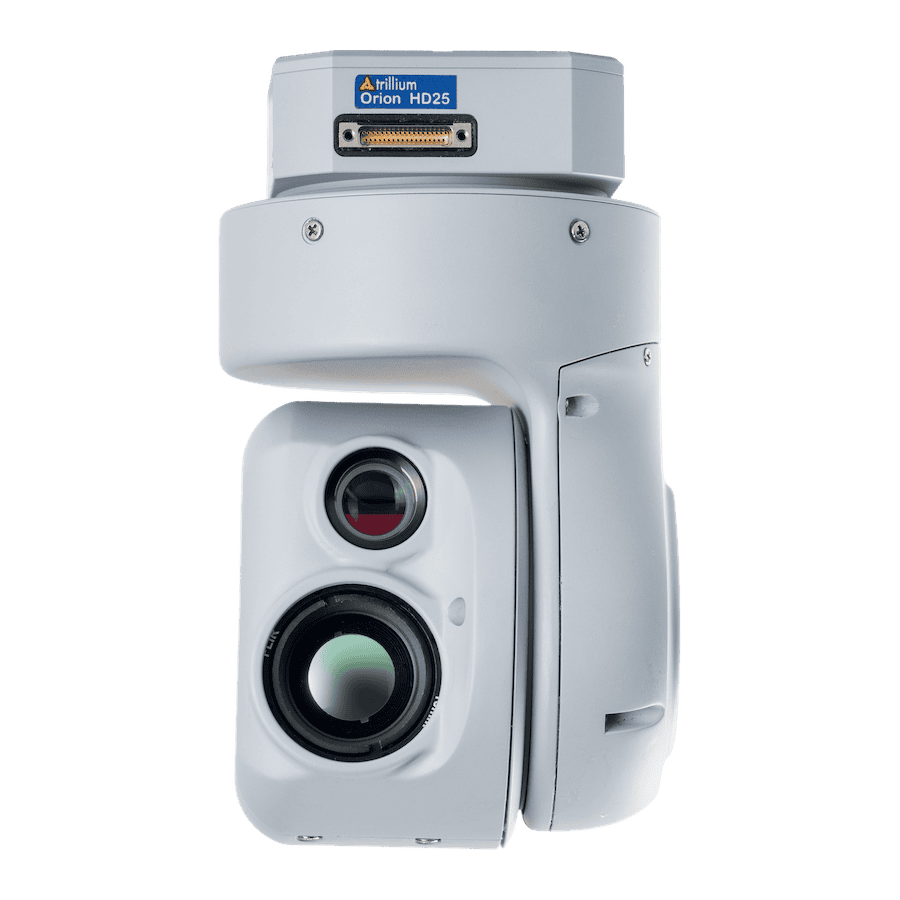

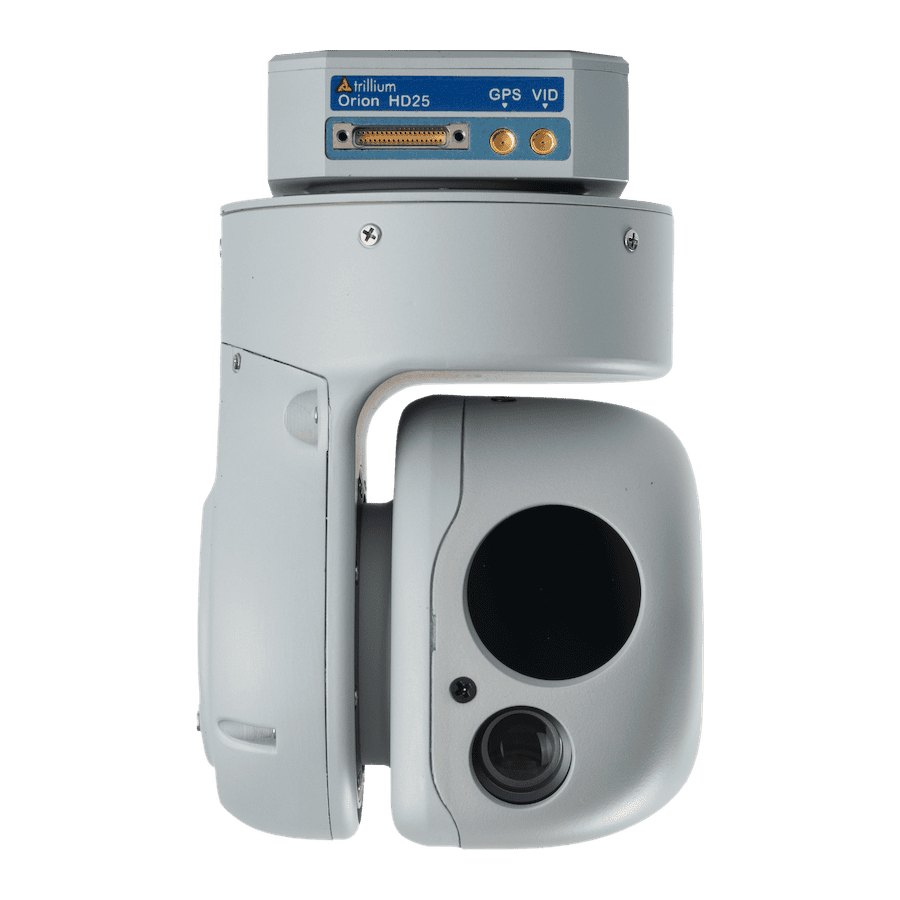

HD25 Drone Camera Gimbal
The HD25 is a lightweight and compact drone gimbal housed in a machined magnesium enclosure with robust environmental sealing. Delivering 720p HD digital H.264-compliant video output, it incorporates a 3x optical zoom visible camera and optional fixed focal length uncooled LWIR camera.
The onboard GPS-aided INS is co-located with the cameras and allows the gimbal to provide real-time geopointing and geolocation for high-accuracy targeting. Advanced embedded video processing features include scene tracking and target tracking. The gimbal can be controlled via Ethernet or serial, and video can be output via Ethernet or analog interface.
| HD25-XV | HD25-LV | |
| Dimensions (D x H) | 2.8 x 4.3” | 2.8 x 4.3” |
| Weight | 340g | 360g |
| Power Consumption | 15W average, 75W peak | 15W average, 75W peak |
| Cameras | 720p Rolling Shutter Visible |
720p Rolling Shutter Visible LWIR 640 with 18mm lens |
| FOV | Visible: 13.7° – 4.6° |
Visible: 13.7° – 4.6° Thermal: 24.1° |
| Export | BIS-controlled | BIS-controlled |
