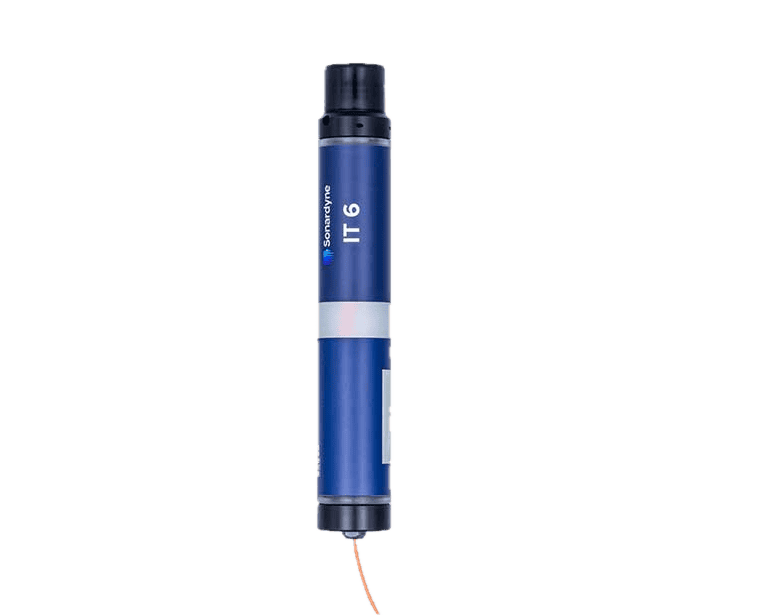

The IT 6 is a compact, field-proven acoustic initiation transponder engineered to safely and remotely trigger mine neutralisers and Explosive Ordnance Disposal (EOD) devices from a secure distance. Designed for use by ROVs, clearance divers, and naval mine countermeasure teams, IT 6 delivers reliable, wireless initiation capability for underwater operations where safety, precision, and control are paramount. Operating in the Medium Frequency acoustic band (20–34 kHz), it enables non-electric initiation of shock tube-based systems such as ECS Viper without the need for hardwired connections or surface relay buoys.
Built on Sonardyne’s 6G hardware and Wideband 2 digital signal architecture, IT 6 ensures robust command transmission and compatibility with the Ranger 2 USBL family for tracking and location monitoring. Multiple safety layers, including a hydrostatic arming switch, configurable timeouts, and independent firing circuits, protect against accidental activation. The IP67-rated Deck Topside controller with touchscreen interface and manual arm/fire controls allows operation from small craft in all weather conditions. Compact, lightweight, and rated to 300 meters, IT 6 supports high and low order detonation modes, improving the safety and efficiency of UXO clearance, MCM, and subsea EOD missions.
Specifications:
| Type 8373 | |
| Depth Rating | 300 m |
| Operating Frequency | MF (23–31 kHz) |
| Transducer Beam Shape | Hemispherical |
| Transmit Source Level (dB re 1 µPa @1 m) | 184 dB |
| Operating Range | >1000 m |
| Hydrostatic Switch | 0 m, 2 m and 8 m options available |
| Subsea Status Indicators | LEDs and acoustic communication |
| Shock Tube Outer Diameter Accepted | 3 mm |
| Operational Battery Life (Alkaline) |
>45 days in not ready to arm state >22.5 days in ready to arm state |
| Storage Battery Life | >3 years |
| Repeat Firings with Firing Pin | >10 |
| Mechanical Construction | Acetal |
| Operating Temperature | -20 to 55ºC |
| Storage Temperature | -20 to 55ºC |
| Maximum Dimensions (Length x Diameter) | 357 x 55 mm |
| Weight in Air/Water | 0.85 kg / 0.10 kg |
| Export Status | Controlled under PL8001.a.3 |
| Standards | UKCA |
