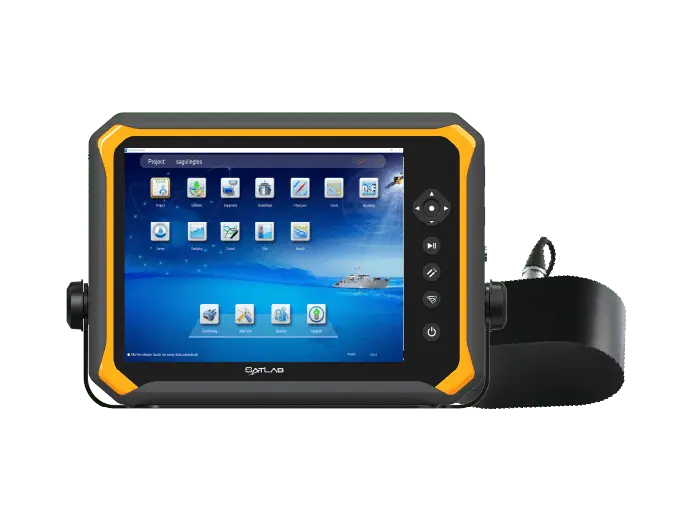

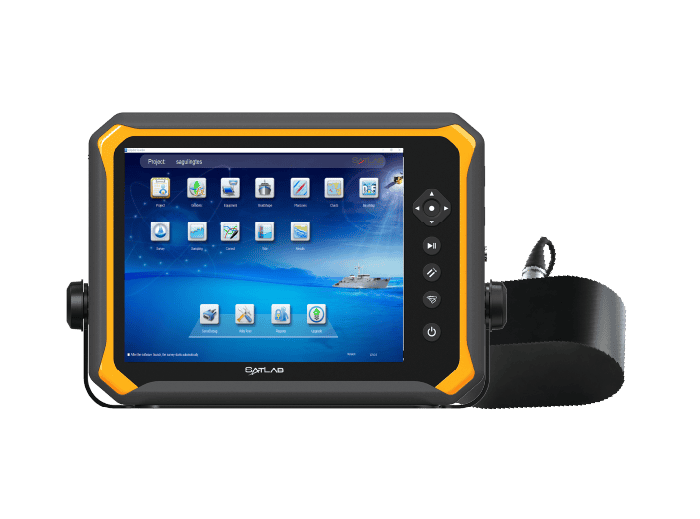

HydroBeam S2 Echo Sounder
The HydroBeam S2 is a dual-channel echosounder that provides simplified bathymetric survey capabilities for USVs. The system features an IP66-rated powerful Windows 10-based acquisition unit with 1TB of storage and running Satlab's SLHydro Sounder software. The high-precision transducer includes an integrated temperature sensor for accurate real-time sound velocity calculation.
Providing a complete workflow for the acquisition, processing, correction and exporting of data, the HydroBeam S2 is ideal for a wide range of applications including deep-water exploration, reservoir assessment, and dredging.
Specifications:
| Dimensions: | 441 x 105 x 324 mm |
| Weight: | 8.1 kg |
| Power Consumption: | 50W |
| Computing Specs: |
15" 1280 x 1024 screen 2.0GHz Quad-core CPU 16GB RAM 128GB + 1TB SSD storage |
| Ping Rate: | 50 Hz |
| Transducer Frequency: |
High Channel: 100 kHz – 1 MHz Low Channel: 10 kHz – 50 kHz |
| Depth Range: |
High Channel: 0.15 ~ 300m @200kHz Low Channel: 1~ 2000m @24kHz |
| Accuracy: |
High Channel: ±0.01m ± 0.1% of depth @200kHz Low Channel: ±0.1m ± 0.1% of depth @24kHz |
| Resolution: |
High Channel: 1cm @200kHz Low Channel: 10cm @24kHz |
