MEMS Inertial Measurement Units
Micro-Magic's cost-effective MEMS IMUs combine three axes of accelerometers and gyroscopes with sophisticated Kalman filtering to provide comprehensive real-time data on orientation, velocity, and acceleration. Certain models also offer accelerometers and barometers, as well as IP67 or IP68-rated ingress protection against dust and moisture.
Specifications:
| U300-A | U300-B | U3000 | U3500 | |
| Dimensions: | 59.6 x 59 x 23.5 mm | 22 x 22 x 7.4 mm | 59.6 x 53.4 x 24 mm | 22 x 22 x 10 mm |
| Weight: | 120g | 7g | 120g | 8g |
| Max Gyro Range: | ±100o/s | ±250/500/1000o/s | ±100o/s | ±400o/s |
| Max Accelerometer Range: | ±10/20/40g | ±6/12/24g | ±10/20/40g | ±12/16/24g |
| Gyro Bias In-Run Stability: | 5o/hr | 7o/hr | 3o/hr | 5.1o/hr |
| Accelerometer Bias In-Run Stability: | 0.05 mg | 0.08 mg | 0.05 mg | 0.06 mg |
| Gyro Bias In-Run Repeatability: | 5o/hr | 7o/hr | 3o/hr | 7o/hr |
| Accelerometer Bias In-Run Repeatability: | 0.12 mg | 0.18 mg | 0.12 mg | 2.52 mg |
| Gyro Random Walk: | 0.12o/√hr | 0.12o/√hr | 0.09o/√hr | 0.36o/√hr |
| Accelerometer Random Walk: | 0.03 m/sec/√hr | 0.09 m/sec/√hr | 0.03 m/sec/√hr | 0.08 m/sec/√hr |

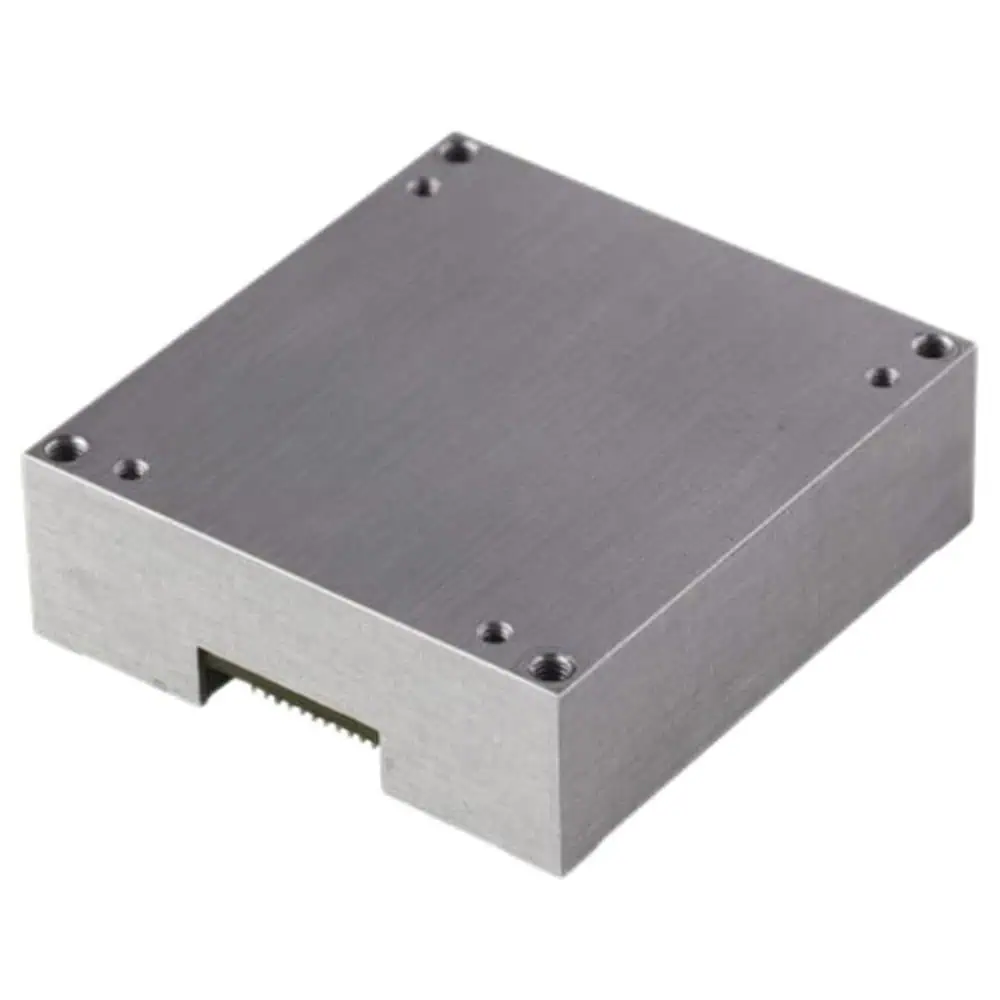

| U5000 | U6488 | U7000 | |
| Dimensions: | 44.8 x 38.6 x 21.5 mm | 47 x 44 x 14 mm | 44.8 x 38.6 x 21.5 mm |
| Weight: | 60g | 50g | 55g |
| Max Gyro Range: | ±400o/s | ±450o/s | ±400o/s |
| Max Accelerometer Range: | ±30g | ±16/20g | ±30g |
| Gyro Bias In-Run Stability: | 0.5o/hr | 1o/hr | 0.1o/hr |
| Accelerometer Bias In-Run Stability: | 0.01 mg | 0.02 mg | 0.015 mg |
| Gyro Bias In-Run Repeatability: | 3o/hr | 3o/hr | 1o/hr |
| Accelerometer Bias In-Run Repeatability: | 0.01 mg | 0.01 mg | 0.015 mg |
| Gyro Random Walk: | 0.08o/√hr | 0.09o/√hr | 0.05o/√hr |
| Accelerometer Random Walk: | 0.17 m/sec/√hr | 0.01 m/sec/√hr | 0.01 m/sec/√hr |
