Otter USV

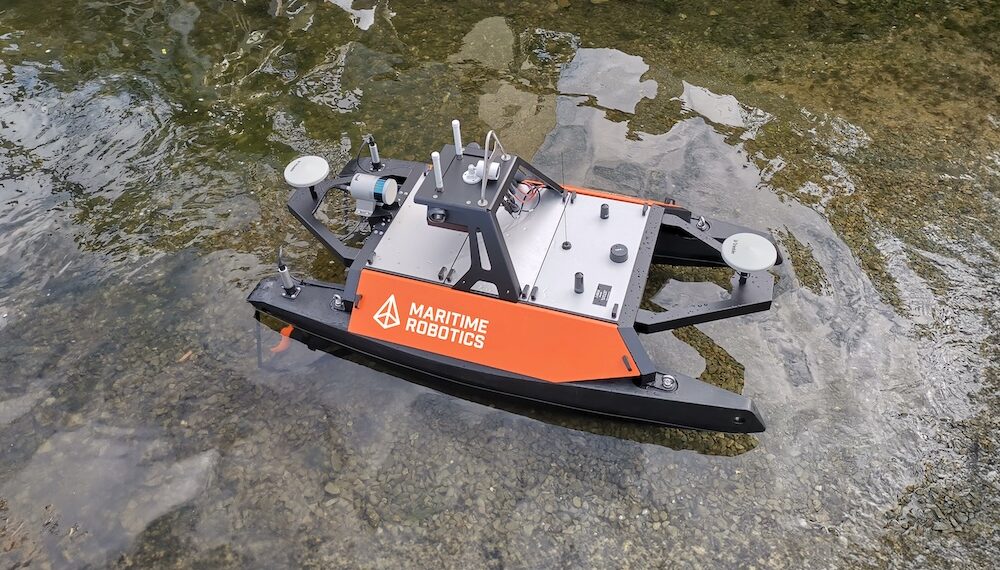

The Otter is a highly portable catamaran USV designed for ultra-efficient bathymetric and hydrographic surveying, scientific data collection, environmental monitoring, and surveillance. With two electric thrusters powered by four battery packs, it offers zero-emission long-endurance operations of up to 20 hours at 2 knots.

The vessel's lightweight and robust construction makes it ideal for operation in sheltered, coastal and shallow areas. It can be quickly assembled or disassembled by a single operator and easily transported in a small van.

The versatile USV has been designed with a plug-and-play payload interface and can be equipped with a wide variety of sensors and auxiliary equipment to fulfil a range of requirements.

Specifications:

Dimensions (L x W x H): 2000 x 1080 x 1065 mm
Weight: 62 kg dry
85 kg with batteries
Payload Capacity: 30 kg
Endurance: 20 hrs at 2 kts
Top Speed: 6 kts
Sea State (Beaufort Scale): 2
