KATFISH

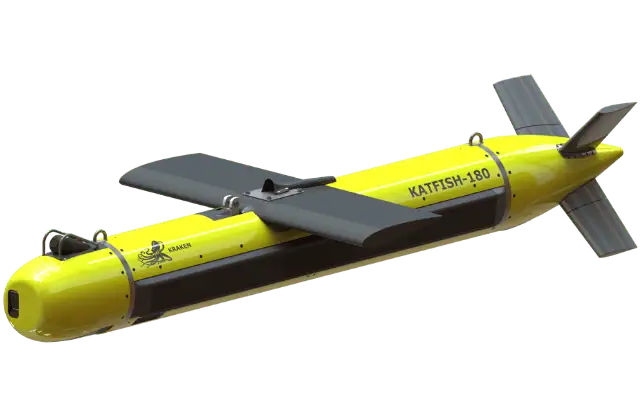

KATFISH is an actively stabilized Synthetic Aperture Sonar towfish that provides industry-leading resolutions of 2 x 2 cm SAS imagery with co-registered 3D bathymetry. With speeds of up to 10 knots, the system offers a significant advantage over slower-moving ROV and AUV-based systems, offering unparalleled Area Coverage Rates (ACR) and reducing survey times and operating costs.

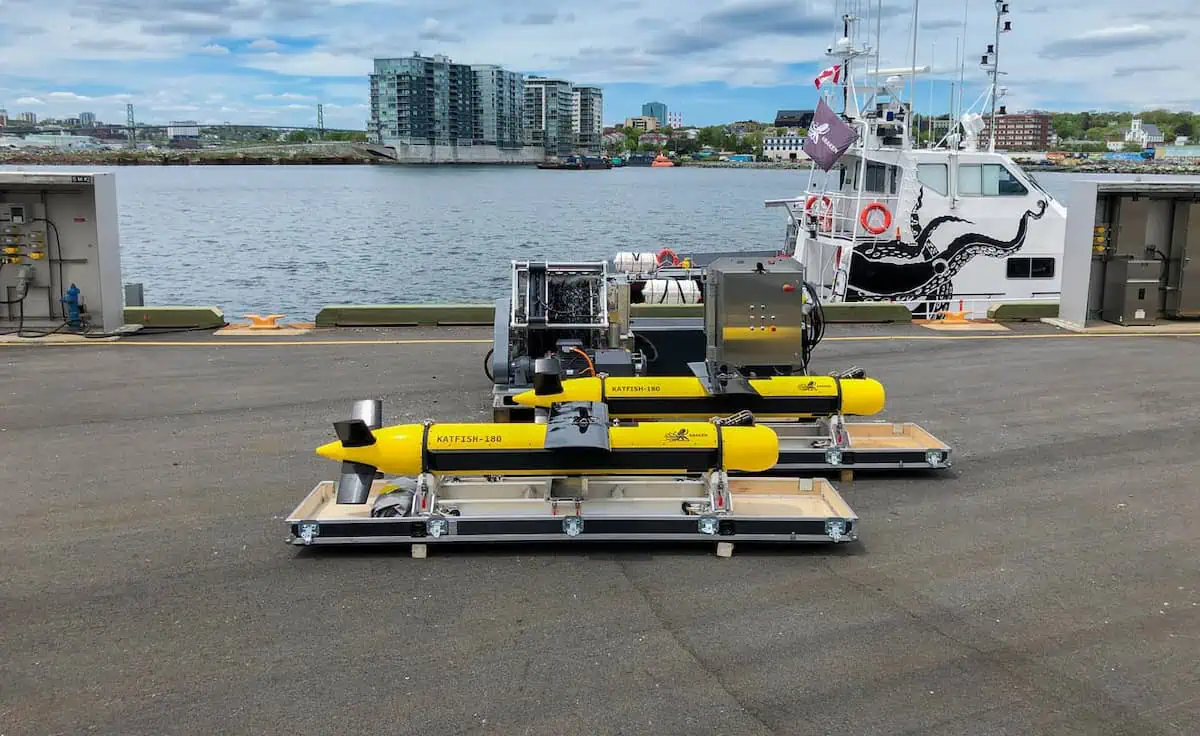

KATFISH allows 3 x 3 cm resolution data to be viewed in real time on board the towing vessel, or sent remotely to a mothership or shore-based command station. It can be safely and rapidly deployed from a variety of vessels of opportunity with the use of an autonomous LARS (launch and recovery system) in either small USV or ISO20 form factors.
Specifications:
| Vehicle Dimensions (L x D): | 2.9 x 0.3 m |
| Vehicle Wingspan: | 1.2 m |
| Weight: | 200 kg in air |
| Survey Altitude: | 5 – 30 m |
| Max Depth Rating: | 300 m |
| SAS Pulse: |
Length 1 - 16 ms configurable Bandwidth 40 kHz Pulse Center Frequency 337 & 105 kHz |
| SAS Resolution (along x across) |
3 x 3 cm real-time 2 x 2 cm post-processed |
| Bathymetry Resolution: | 25 x 25 cm |
