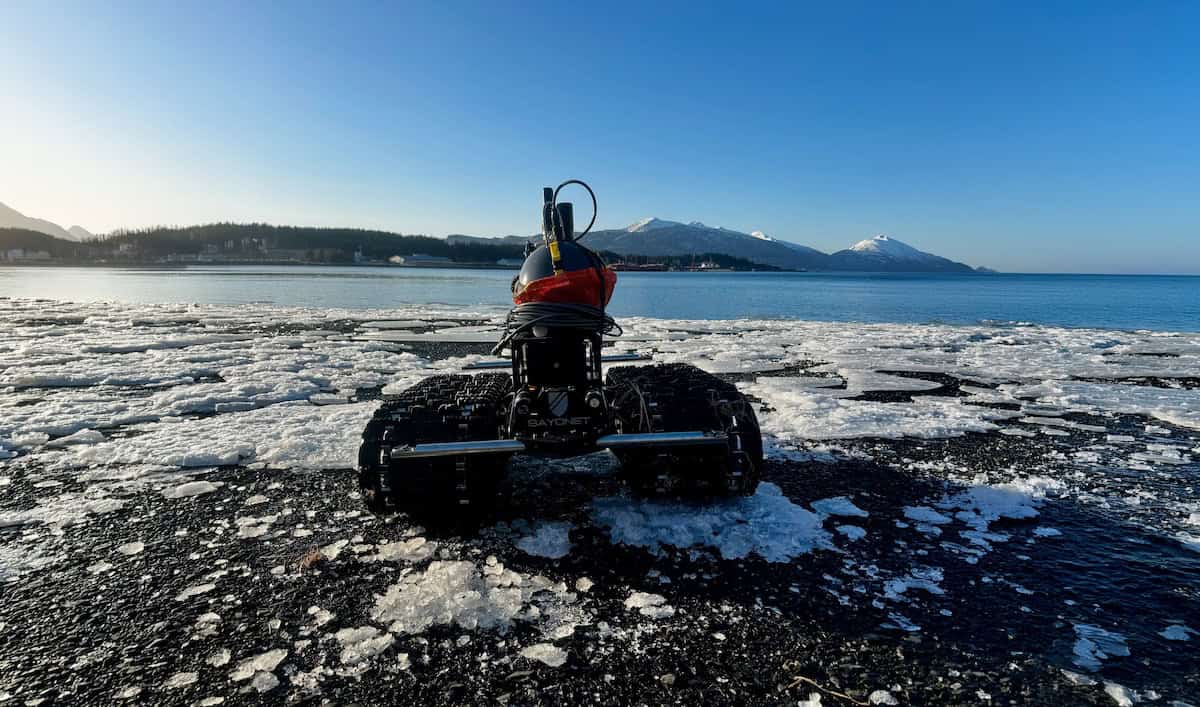

Bayonet 250 Amphibious Crawler
The Bayonet 250 is a rugged amphibious crawler designed for land and undersea operations in a range of challenging conditions. Designed to be two-person-portable and one-person-operable, it can be programmed for fully autonomous operation or controlled via tether or RF link buoy.
The subsea crawler utilises a fusion of single or dual RTK-capable GNSS receivers with advanced inertial navigation to provide precise navigation even when submerged. The built-in inclinometer and pressure sensor deliver high-accuracy depth measurements.
The Bayonet 250 can be equipped with a variety of sensor and payload packages, and custom integrations can also be performed.
Specifications:
| Dimensions: | 48 x 52 x 14 inches |
| Standard Open Deck Space: | 33 x 14 inches |
| Weight (With Batteries): | 250 lbs |
| Range (dry/wet): | 24 miles / 10 miles |
| Deck Capacity: | 250 lbs (113kg) |
| Ground Pressure (dry/wet) | 0.39 psi / 0.20 psi (10’ track) 0.26 psi / 0.13 psi (15’ track) |
| Power Available: | 5V (500mA), 12V (3A), 24V (3A), 48V |
| I/O: | 2x RS232 1x RS485 2x non-isolated analog input 2x non-isolated analog output 2x isolated digital input 2x isolated digital output 4x Ethernet |
