SPECTRUM 1650LR Light-weight 3-sensor Gimbal ISR system with Full HD 30x optical zooming
SPECTRUM 1650LR

Light-weight 3-sensor Gimbal ISR system with Full HD 30x optical zooming

Visit Website Contact
Saved
Save
SPECTRUM 1650LR

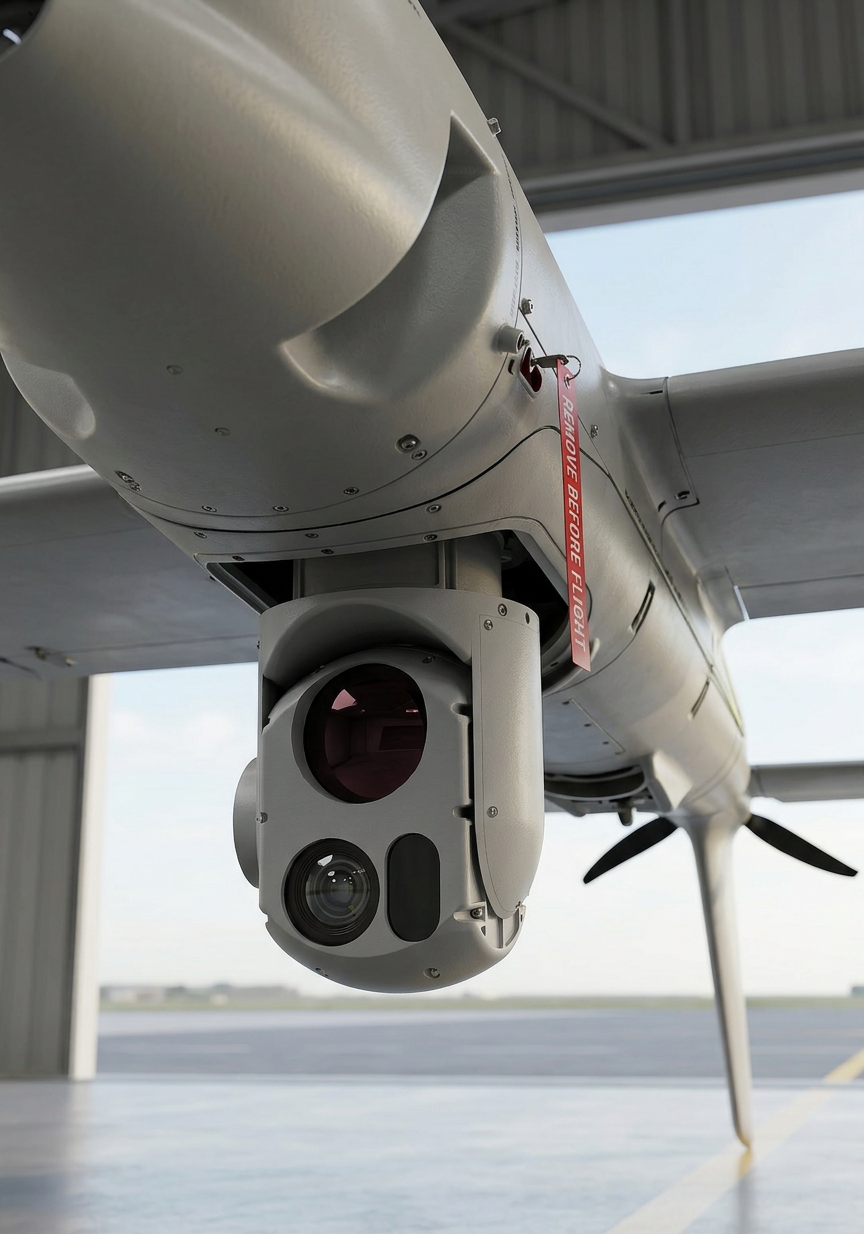

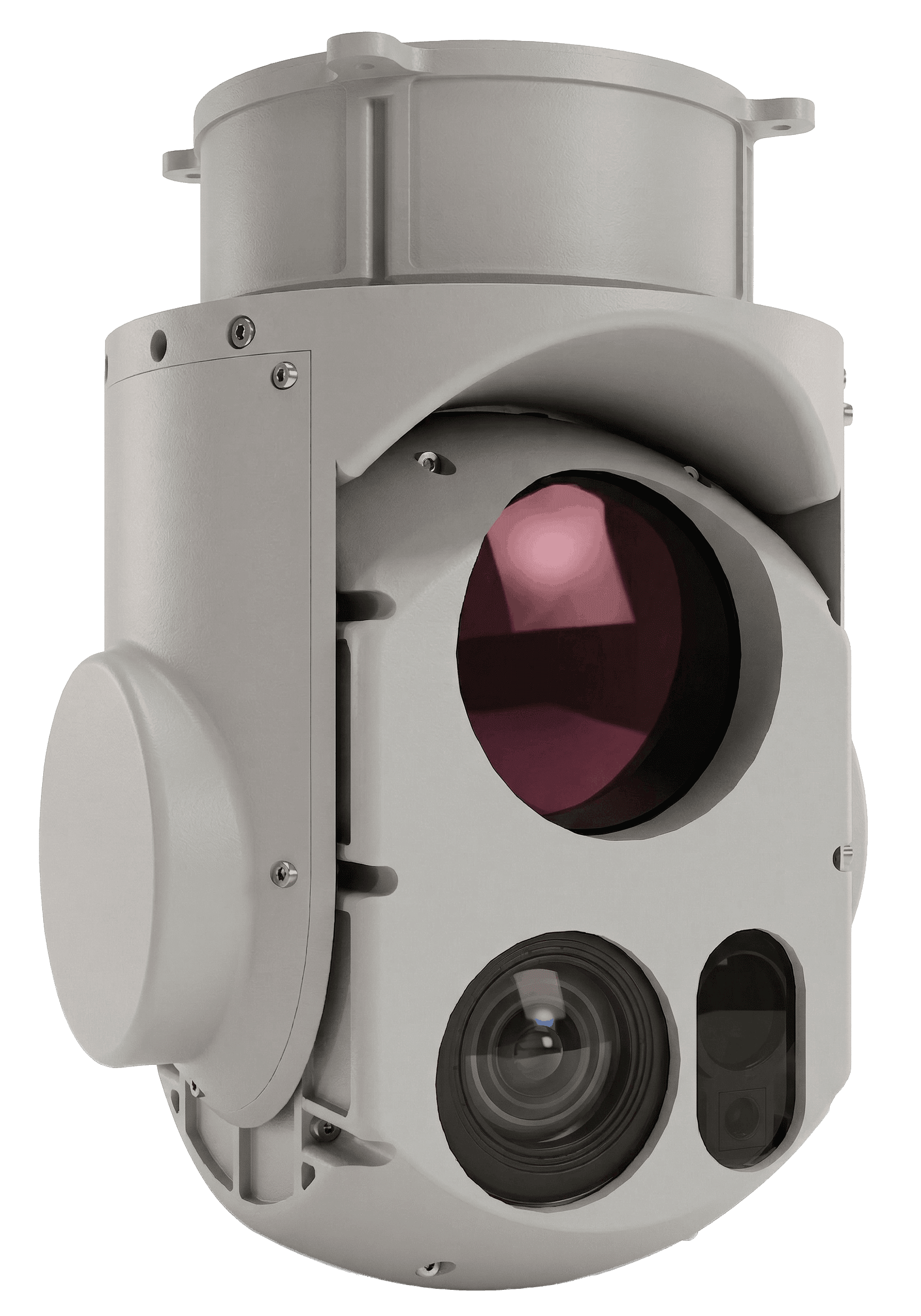

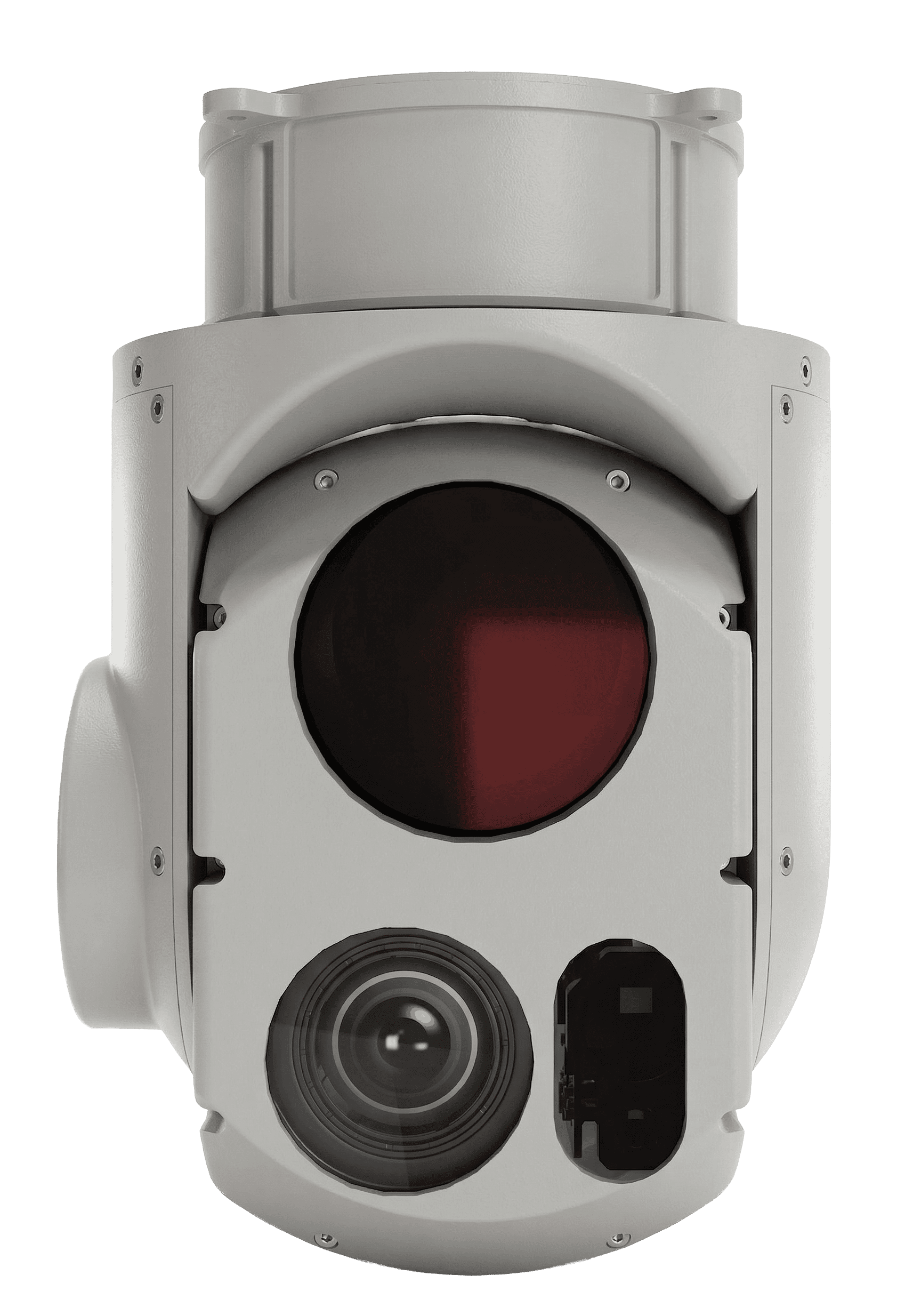

The SPECTRUM 1650G2 is a robust 3-sensor gimbal payload designed for advanced operational needs. Weighing 1.7 kg (3.7 lb.), it integrates a 1920 x 1080 px EO (Electro-Optical) sensor for high-resolution imaging, a 640x512 LWIR (Long-Wave Infrared) sensor 5x Optical Zoom for thermal imaging, and a Laser Rangefinder for precise distance measurement up to 5 km. Engineered for reliability and precision, the SPECTRUM 1650LR is an excellent solution for reconnaissance, surveillance, and mission-critical operations.

Size (Height/Diameter) 25 cm / 17 cm (9.84 / 6.7 inch)
Weight 1700 g (3.3 lb.)
IP Level IP66
EO Resolution 1920 x 1080 px
EO Zoom 120x
IR Camera LWIR (VoX)
IR Zoom 10
IR Resolution 640 x 512p
Range Finder 3 km
