Shadowfax UAS is a leading developer of rugged and reliable hybrid VTOL UAS (unmanned aerial systems). UST is delighted to welcome Shadowfax on board as a supplier partner, and we will be highlighting their unique solutions and capabilities across our channels over the next 12 months.
We’ve just launched Shadowfax’ UST supplier profile, which has been written and built by our team in collaboration with the company. The Silver profile showcases their SF30 UAS, which has been designed to provide long-endurance surveillance and reconnaissance capabilities under the most extreme conditions.
Read on to find out more:

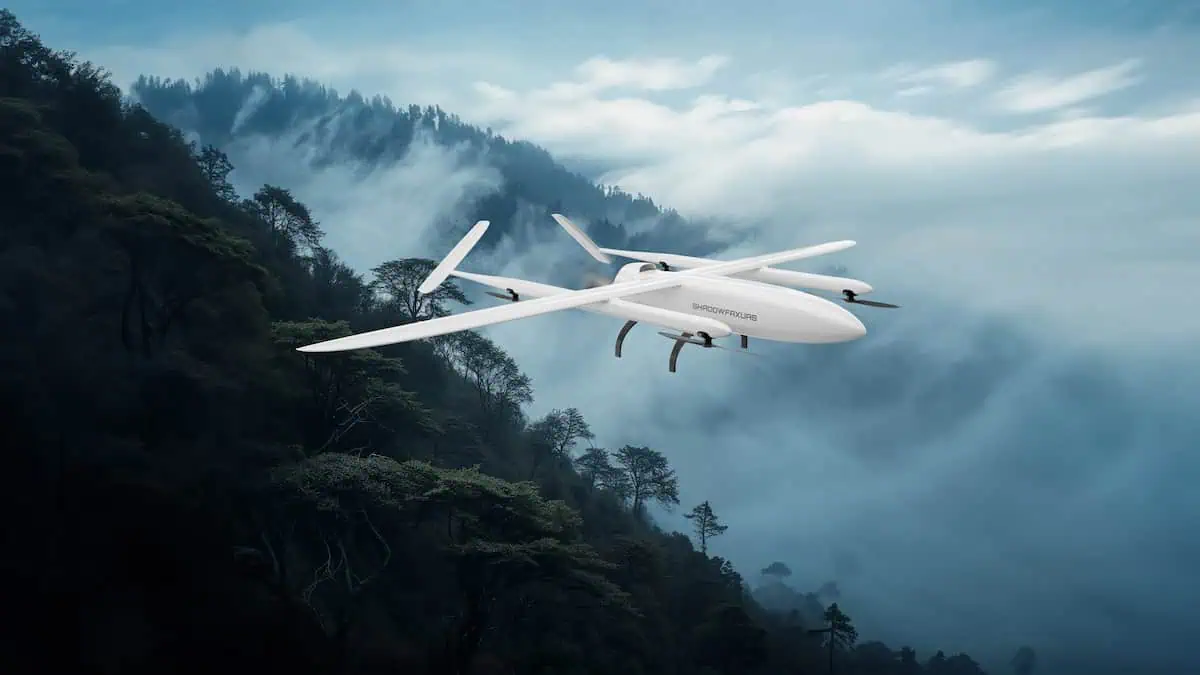

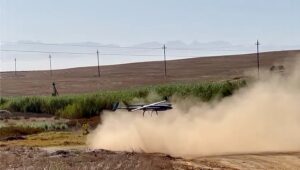

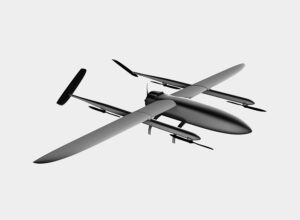

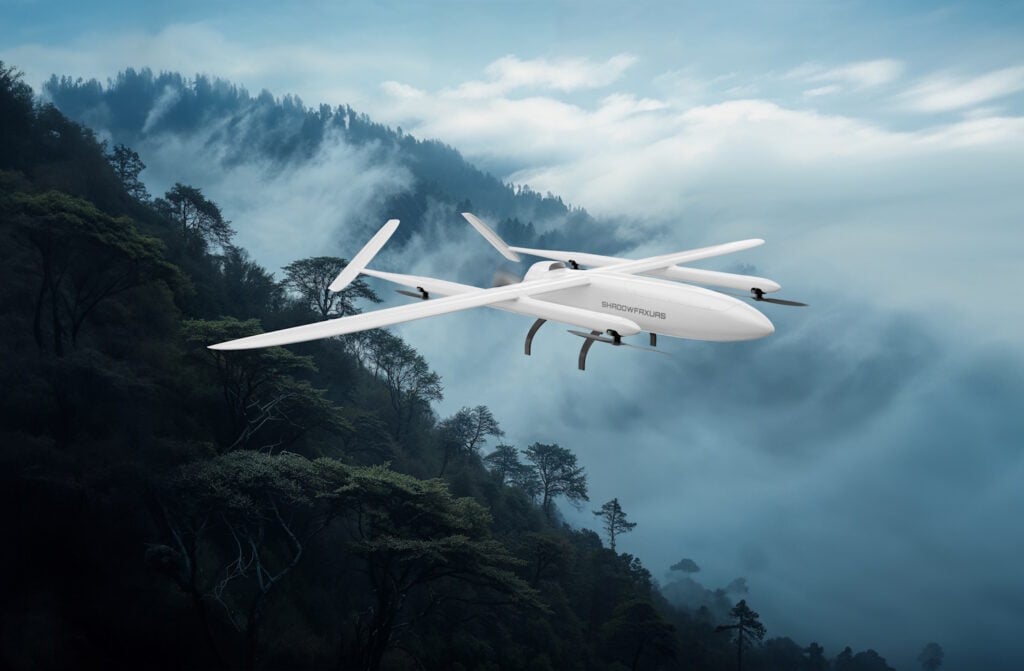

The SF30 is an ITAR-free hybrid fixed-wing drone platform that has been designed from the ground up to provide a unique surveillance and reconnaissance capability with unmatched persistence. The VTOL capability allows it to operate with a low logistical footprint in highly demanding environments, with no need for runways or complex launching equipment. The entire system can be stored and transported in a single box, and assembled with a single tool in only 30 minutes.
The highly aerodynamic aircraft uses a sophisticated system of position locking motors to reduce drag in flight, and features fully autonomous landing for maximum safety even in the event of a propulsion or communications failure.
The SF30 is powered by a field-swappable propulsion unit, based around a fuel-efficient four-stroke internal combustion engine with optional electronic fuel injection. The modular unit can be swapped out in seconds, enabling easy maintenance and repair and massively reducing downtime.
An onboard generator provides up to 100W of clean DC power at user-selectable voltages, allowing it to power a variety of onboard systems and equipment. The integrated fuel level sensor provides real-time data on fuel level and flow rates, which can be transmitted back to the ground control station.
The versatile platform has been designed with a spacious modular payload bay that accommodates up to 5 kg. Cameras, sensors, and other mission-critical equipment can be rapidly swapped out in the field, providing easy reconfiguration for true multi-mission capabilities.
The SF30 can also be equipped with a range of communications options, including SATCOM terminals, 4G cellular modems, and tactical MIMO radios. This ensures critical redundancy as well as enabling long-range and BVLOS (beyond visual line of sight) operations in areas with limited communications infrastructure.
To find out more about Shadowfax UAS and the SF30, please visit their profile page:
https://www.unmannedsystemstechnology.com/company/shadowfax-uas/
