Inertial Labs incorporates accelerometers into its products to deliver precise motion sensing and navigation solutions.
By combining accelerometers with other sensors like gyroscopes and magnetometers, Inertial Labs devices provide accurate measurements of position, velocity, and orientation.
This integration is essential for applications in unmanned aerial vehicles (UAVs), marine navigation, and robotics, where precise motion tracking is critical, even in challenging environments or when GPS is unavailable.
The Benefits of Accelerometers
Accelerometers are essential in inertial navigation and motion detection. These advanced devices measure non-gravitational acceleration, detecting and quantifying changes in an object’s velocity. Their capability is critical in various applications, from drone stabilization to precise tracking of human movements.
At their core, accelerometers feature a mass connected to a spring, encased within a housing. When the device experiences acceleration, the mass moves, compressing or stretching the spring, and the displacement is measured to gauge acceleration.
Different technologies, such as piezoelectric, capacitive, and MEMS (Micro-Electro-Mechanical Systems) sensors, apply this fundamental principle.
MEMS technology has significantly advanced the accelerometer industry. By incorporating microscopic structures into silicon, MEMS accelerometers deliver high precision in a compact format, making them ideal for smartphones, automobiles, and medical devices where space and accuracy are crucial.
How Accelerometers Work
Understanding accelerometers begins with their basic function: measuring acceleration forces. These forces can be static, like gravity, or dynamic, caused by the movement or vibration of the accelerometer.
Accelerometers sense acceleration using a mass (seismic mass) suspended within a casing. This mass is either connected to a mechanical spring or held in place by electrical forces. When the device accelerates, the mass moves, and its deflection is measured to determine acceleration.
Various accelerometer types operate on this basic concept:
- Piezoelectric Accelerometers: Utilize materials that produce an electrical charge when subjected to acceleration forces.
- Capacitive Accelerometers: Measure changes in capacitance between microstructures within the sensor as they move relative to each other.
- Hall-effect Accelerometers: Detect acceleration by measuring shifts in the magnetic field around a semiconductor when the sensor moves.
In modern consumer electronics like smartphones and wearables, MEMS accelerometers are predominant.
These accelerometers use tiny structures etched onto silicon wafers that move in response to acceleration. These movements are detected and converted into electrical signals, then processed to provide motion data.
Functions of Accelerometers
Their functionality extends well beyond basic motion detection. Accelerometers are crucial for orientation sensing, stability control, and precise navigation. Key applications include:
- Orientation Detection: In devices like smartphones and tablets, accelerometers determine the device’s orientation, enabling the screen to rotate automatically based on how it is held.
- Stability Control: In automotive safety systems, accelerometers detect sudden changes in vehicle motion, triggering airbags during collisions. They are also integrated into electronic stability control systems to help prevent rollovers.
- Navigation: Accelerometers are integral to inertial navigation systems when GPS is unavailable. These systems use data from accelerometers to track a vehicle’s or person’s position over time, a process known as dead reckoning.
In consumer electronics, accelerometers enhance gaming controllers, fitness trackers, and digital cameras by stabilizing images. In industrial settings, they monitor machinery health by detecting vibrations that could indicate potential failures. They also contribute to seismic monitoring in buildings, supporting earthquake safety systems.
Inertial Labs Products with Accelerometers
Inertial Labs integrates accelerometers into their devices to deliver comprehensive motion analysis by combining data from multiple sensors. Inertial Labs products with accelerometers includes:
Inertial Navigation Systems (INS)
Inertial Labs INS integrate accelerometers, gyroscopes, and magnetometers to provide precise position, velocity, and orientation data under challenging conditions. They are widely used in UAVs, marine navigation, and land vehicle navigation, where accelerometers enable accurate linear motion detection.
Motion Reference Units (MRUs)
Designed for marine applications, these Inertial Labs MRUs measure pitch, roll, heave, surge, and sway. By combining accelerometers with gyroscopes, MRUs accurately track ship and underwater vehicle movements, ensuring stability and precise navigation.

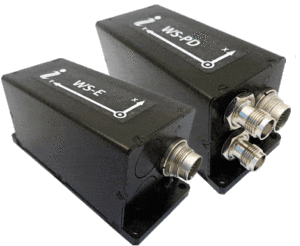

Wave Sensors (WS)
Inertial Labs wave sensors use accelerometers to measure wave height and direction, essential for oceanographic research, coastal engineering, and offshore operations. The data provided by accelerometers is vital for safe and efficient marine activities.

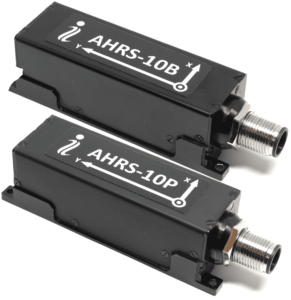

Attitude and Heading Reference Systems (AHRS)
Inertial Labs AHRS units combine accelerometers, gyroscopes, and magnetometers to provide 3D orientation, including roll, pitch, and yaw. This is crucial in robotics, where precise orientation is necessary for navigation and task execution.
Applications of Inertial Labs Products
Each product utilizes accelerometers in unique ways:
UAVs – Inertial Labs INS ensures stable flight and accurate payload delivery, even in GPS-denied environments, crucial for military drones.
Marine Vessels – MRUs measure heave, pitch, and roll, enabling safer navigation through rough seas and accurate seabed mapping.
Wave Monitoring – Accelerometers in Wave Sensors precisely measure wave dynamics, aiding the construction and maintenance of maritime structures.
Robotics – AHRS units provide precise orientation data, enabling tasks ranging from industrial automation to exploration in GPS-denied environments.
Accelerometers’ integration into these devices underscores Inertial Labs’ dedication to offering advanced solutions across various industries, from stabilizing cameras on film sets to monitoring critical infrastructure.
From precise navigation in Inertial Labs products to their ubiquitous presence in consumer electronics, accelerometers are at the core of motion sensing technology. As they continue to evolve, so will the capabilities of the devices and systems they enhance, driving us toward an increasingly dynamic and automated future.
