HOBBYWING P-Series high-voltage electric propulsion systems are engineered for heavy-lift multirotor, VTOL, and cargo eVTOL UAV platforms operating in mission-critical environments.
Built on a high-voltage architecture, the P-Series is designed for demanding applications including logistics transportation, crucial materials lifting, firefighting, and emergency response, delivering powerful thrust, high efficiency, and exceptional system reliability.
Automotive-Grade Safety Architecture
The software adopts a rigorous modular design. Meanwhile, the hardware implements a fully isolated architecture, separating high-voltage power circuits, low-voltage signal circuits, and protective earthing (PE). This ensures reliable data transmission and enhanced operational safety for both personnel and connected system.
Control & Communication Redundancy
Sensorless FOC as primary control with sensor-based FOC backup, enabling real-time switching to improve propulsion system reliability. P series also supports multiple throttle combinations: PWM + CAN (default), PWM + RS485 (optional), CAN + RS485 (optional).
High Insulation & Robust Protection
· 2000V–2700V insulation withstand capability
· 200°C high-temperature resistant enameled wires
· IPX5 protection rating
· 1000-hour aging test verification
P115M
Hobbywing P115M.
Industry-leading 800V coaxial integrated propulsion system, designed for firefighting tethered drones and heavy-lift cargo eVTOLs
It delivers stable operation especially in high temperature, high humidity, dust, and powder environments such as firefighting scenarios.
· Rated thrust: 115 kg
· Max thrust: 240 kg / 232 kg
· Input Voltage: 500-850V
· Propeller: MSC 73×21 / MSC 64×23

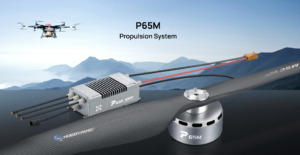

P65M – Designed for heavy-lift multirotor UAV platforms
P65M Propulsion System Hobbywing.
· Rated thrust: 65 kg
· Max thrust: 138 kg
· Input Voltage: 280V-450V
· Propeller: MSC 72×25 / MSC 64×20
P65V – For large VTOL fixed-wing UAVs and eVTOLs
· Rated thrust: 65 kg
· Max thrust: 116 kg
· Input Voltage: 280V-450V
· Propeller: VSC 60×20 / USC 54×23

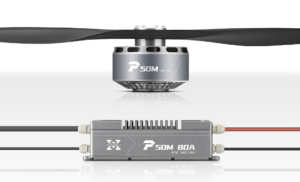

P50M from Hobbywing.
P50M – Featuring a thrust of 50kg per axis for multirotor drones
· Rated thrust: 50 kg
· Max thrust: 116 kg
· Input Voltage: 280V-450V
· Propeller: MSC 64×20 / USC 54×23
Find out more about the P Series high-voltage electric propulsion systems on the HOBBYWING website.
