M Series Motors
HOBBYWING's M Series brushless motors ensure stable and ultra-efficient operation for industrial multirotor drones, engineered with robust aviation-grade materials and offering options to suit a wide range of platforms from small quadcopters through to heavy-lift cargo delivery platforms.
The M Series offers two types of motor - UL (Ultralight) models feature a hollowed-out design for minimal weight and enhanced flight times, and HP (High Protection) motors are housed in a semi-enclosed structure for robust protection against dust and debris.
Specifications:
| Recommended Battery | KV | Thrust per Rotor | Total Weight | Ingress Protection | |

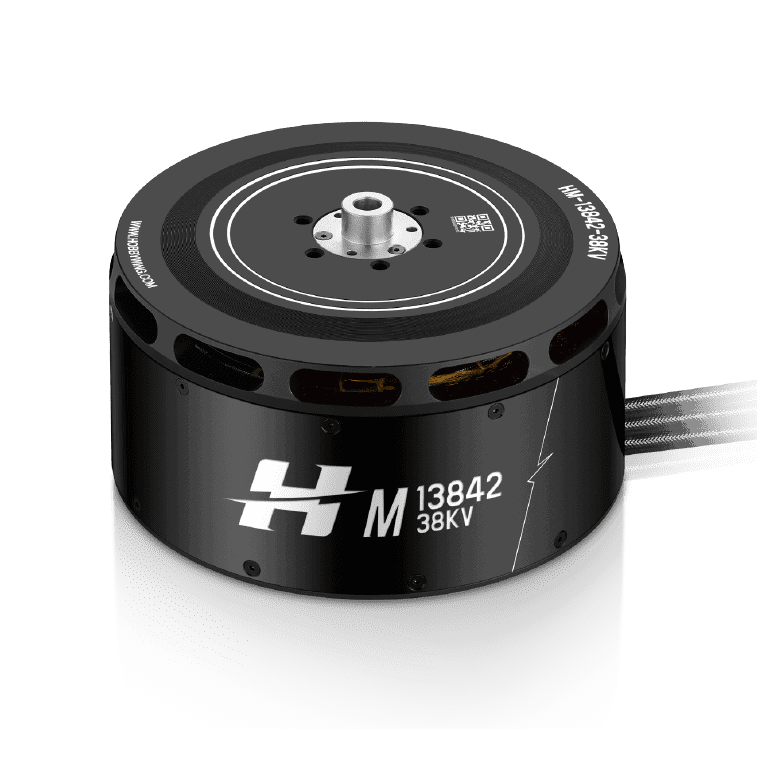

| M13842 HighProt | 24S | 34KV / 38KV | 35 – 40 kg | 3900 / 3930 g | IPX5 |

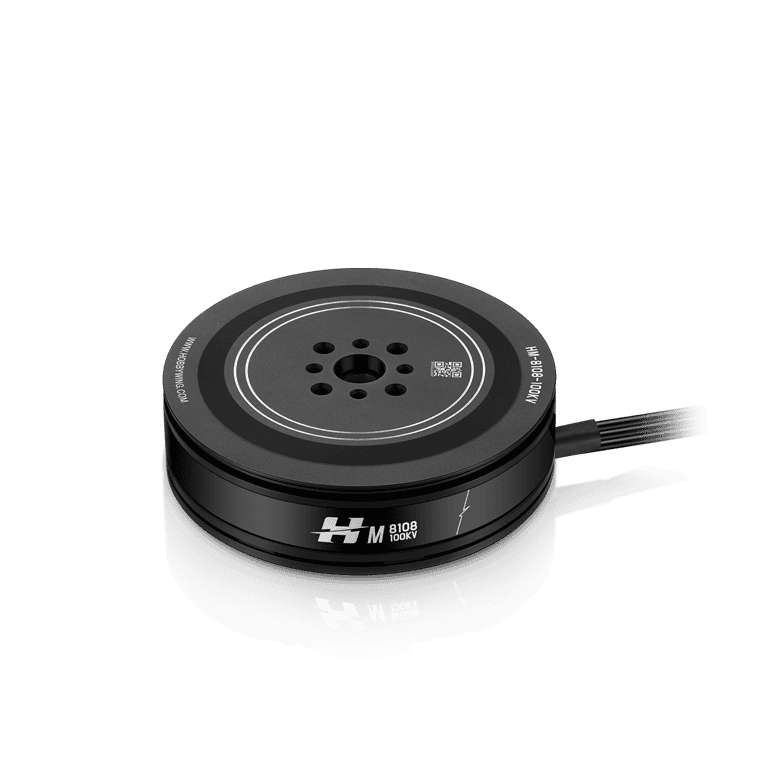

| M8108 HighProt | 12S | 85KV / 100KV | 2.5 – 3.5 kg | 270 / 271 g | IP45 |
| M8110 HighProt | 12S | 95KV / 110KV | 3 – 4 kg | 315 / 317 g | IP45 |
| M6210 HighProt | 12S/6S | 170KV / 320 KV | 2.2 – 2.7 kg | 231 / 239 g | IP45 |
| M6215 HighProt | 12S/6S | 160KV / 320 KV | 2.5 – 3.5 kg | 307 / 308 g | IP45 |
| M5208 HighProt | 6S | 320KV / 380KV | 1.4 – 1.6 kg | 166 / 165.5 g | IP45 |
| M4006 HighProt | 6S | 330KV | 0.6 – 1.0 kg | 72 g | IPX5 |
| M8108 Light | 12S | 85KV / 100KV | 2.5 – 3.5 kg | 270 / 271 g | IPX5 |
| M8110 Light | 12S | 95KV / 110KV | 3 – 4 kg | 315 / 317 g | IPX5 |
| M6208 Light | 12S/6S | 155KV / 310KV | 2.0 – 2.5 kg | 165 / 169 g | IPX5 |
| M5208 Light | 6S | 340KV / 380KV | 1.4 – 1.9 kg | 153.8 / 156.5 g | IPX5 |
| M4006 Light | 6S | 350KV | 0.6 – 1.0 kg | 66.1 g | IPX5 |
