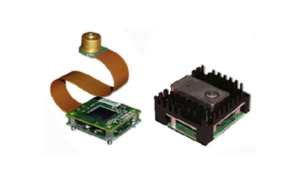

Analog Modules highlights the AMI Series of Rangefinder Receivers with Processors, a compact, high-performance solution designed to deliver precise and reliable range data for advanced sensing applications.
The 7558A and 7555 Series integrate proven Model 758A or 755A receivers with streamlined support electronics, enabling calibrated serial output that leverages patented technology to correct range errors caused by signal amplitude variations.
Engineered for exceptional sensitivity, down to 3 nW in the 7558 Series, these modules support low-power laser operation while maintaining long-range capability. Advanced features include time-programmed gain with noise tracking threshold, high-speed range counting, and selectable first, last, or strongest pulse detection, ensuring optimized performance in multi-target environments.
The 7558 Series further enhances functionality with a TE cooler controller and heatsink, improving stability in demanding conditions. Additional capabilities such as adjustable APD bias, range gating, and false alarm rate provide flexibility, while the compact design allows placement directly at the optics, minimizing system size. Custom configurations are also available for tailored integration.
