Drone Wind Sensors & Weather Stations

Find Wind Sensor manufacturers and suppliers of weather stations & meteorological devices for UAV and unmanned systems including drone anemometers & weather measurement instruments for UAS, UGVs, USVs and Ground Control Stations (GCS)
Overview Drone Wind Sensors & Weather Stations
By Technology Editor Last updated: October 20th, 2023

Meteorological Devices for UAV

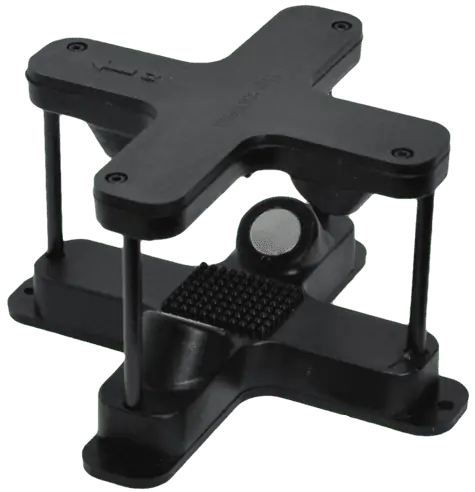

Ultrasonic Anemometer by Anemoment

Ultrasonic Anemometer by Anemoment

Weather and wind sensors are typically used for several UAV (unmanned aerial vehicle)-related applications. Meteorology sensors may be mounted on or around a UAV ground control station (GCS) or launch area in order to gather data on local weather conditions, so that pilots can ascertain whether it is safe to fly.

Drone Mounted Weather Sensors

Weather measurement instruments may also be mounted on the UAV itself, weather drones can be used to collect data for applications such as environmental monitoring, climate change research, and precision agriculture. They can also be used to support accurate hovering and station-keeping for multirotor drones.

Drone Anemometers

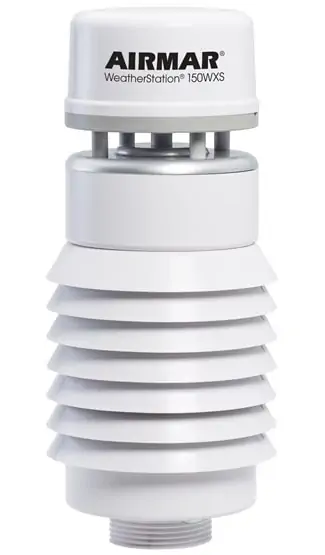

Meteorology Sensor by Airmar

Meteorology Sensor by Airmar

One of the most common weather measuring instruments is the anemometer, which measures wind speed and direction. The simplest anemometer designs are mechanical, using a mechanism such as a series of cups that turns a shaft at a rate proportional to the speed of the wind. Most mechanical anemometers cannot measure wind in three dimensions, and have a slow response time to sudden changes and gusts of wind due to the inertia of the mechanism.

Ultrasonic Wind Sensors

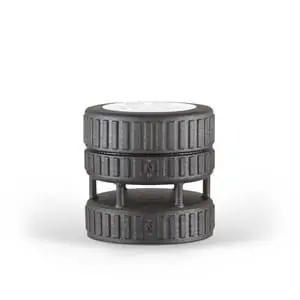

FT205 Surface Mount UAV Wind Sensor

FT205 Wind Sensor by FT Technologies

Ultrasonic anemometers are a better choice for UAV applications. They typically work by firing ultrasonic pulses between pairs of transducers, and measuring the time of flight of the pulse, which is affected by and can thus be used to calculate the wind speed. Direction can be calculated by comparing times between pairs of transducers. Another form of ultrasonic anemometer resonates ultrasound waves inside a cavity. As wind passes through the cavity, this affects the phase of the sound waves, and this phase shift can be measured and used to calculate wind speed and direction.

Ultrasonic Anemometers & Weather Stations

Ultrasonic anemometers can be manufactured with a very small footprint and light weight, making them ideal for SWaP (size, weight and power)-constrained drones. Ultrasonic wind sensors contain no moving parts and are thus less susceptible to shock and vibration. Some anemometers contain temperature-controlled de-icing mechanisms that allow them to function even in extremely cold conditions.

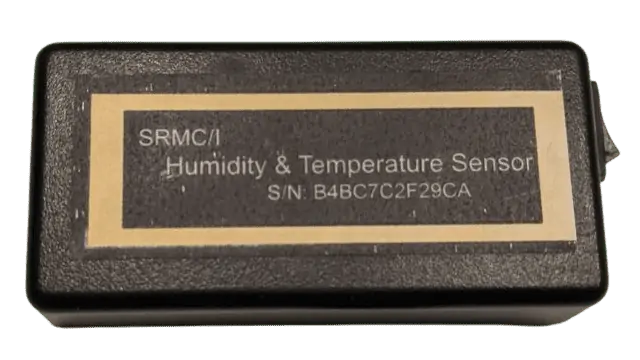

Bluetooth temperature and humidity drone sensor

Bluetooth temperature and humidity drone sensor by Intelesense

Anemometers and weather stations may also incorporate other meteorological sensors, allowing them to collect other data in addition to wind speed and direction. These may include relative humidity, pressure and temperature sensors. UAV anemometers intended to be mounted on drones and other moving platforms may have built-in inertial sensors such as accelerometers in order to measure the yaw, pitch and roll of the platform.
