The FT602-SM is a compact and lightweight ultrasonic wind sensor that measures wind speeds of up to 75m/s and provides full reliable 360° direction measurement. Thanks to FT Technologies' revolutionary Acu-Res® technology, it delivers an excellent signal-to-noise ratio and high levels of data availability even under challenging environmental conditions.
Constructed from an industrial-grade polymer, the robust unit's low profile makes it physically strong. It is sealed to IP67 standards, can withstand impacts of up to 50g, and also features a built-in compass, pressure sensor and tilt sensor.

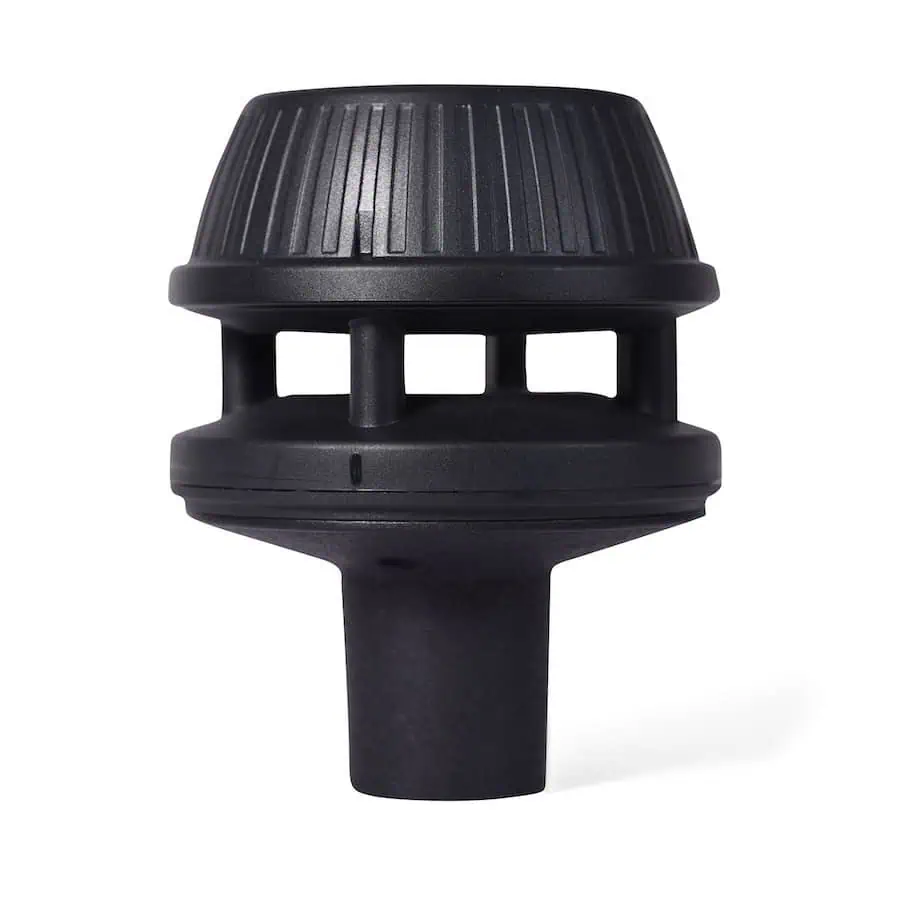

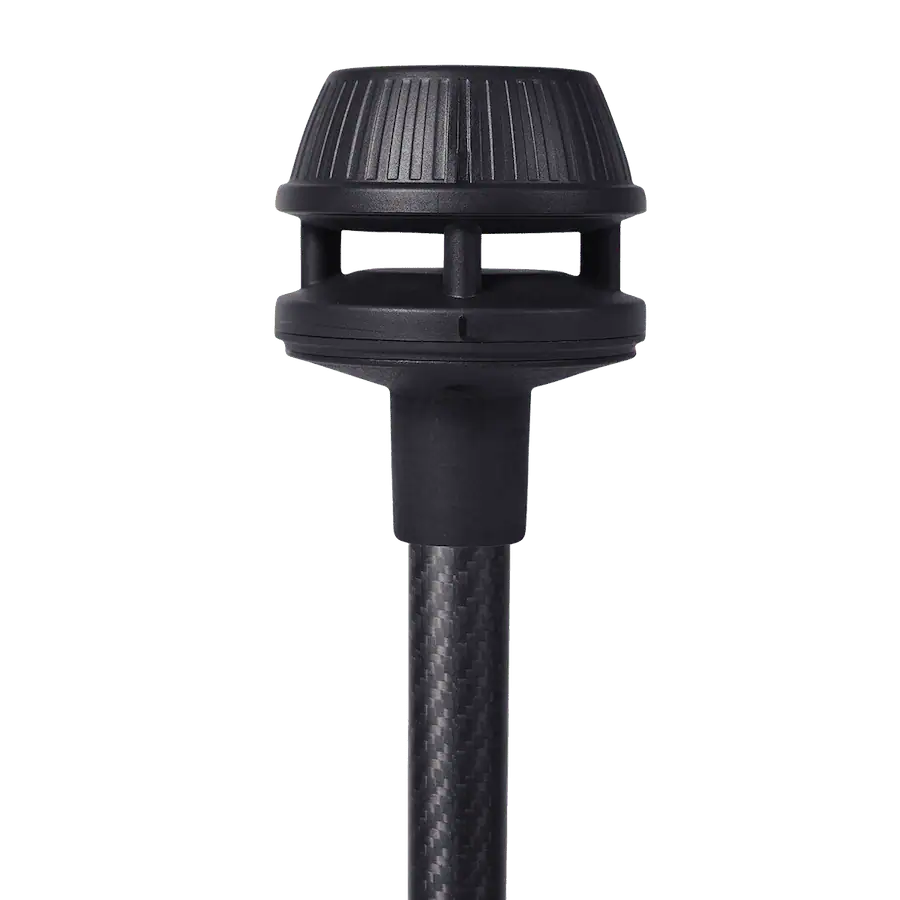

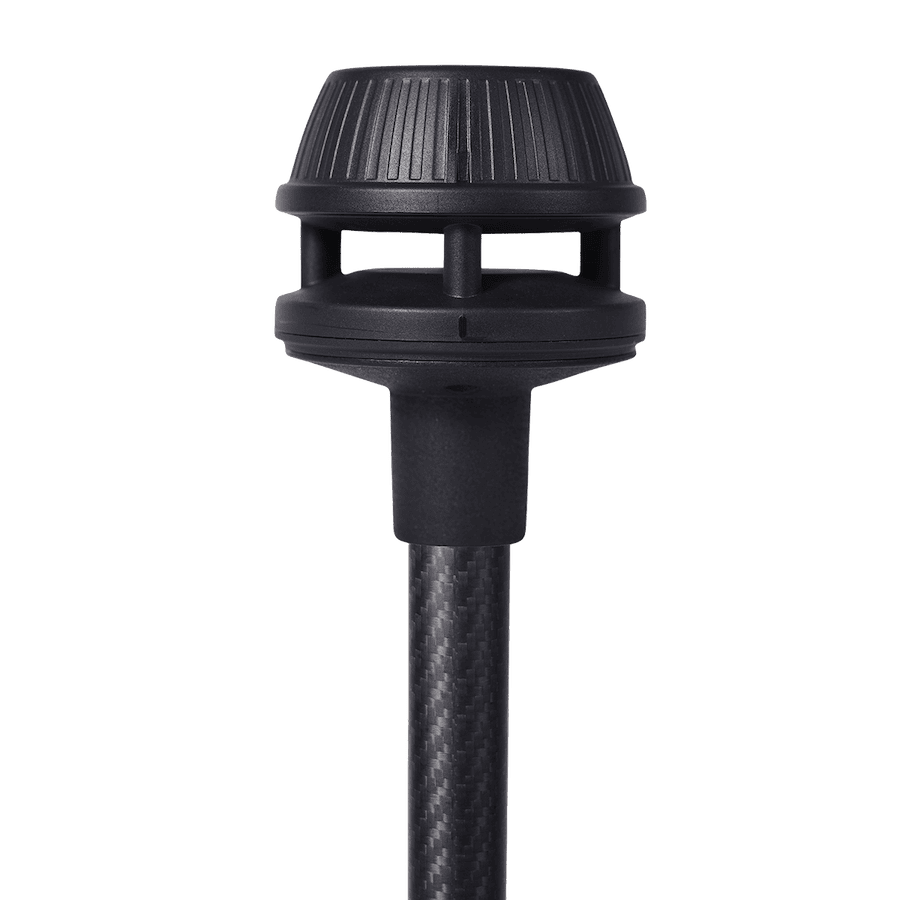

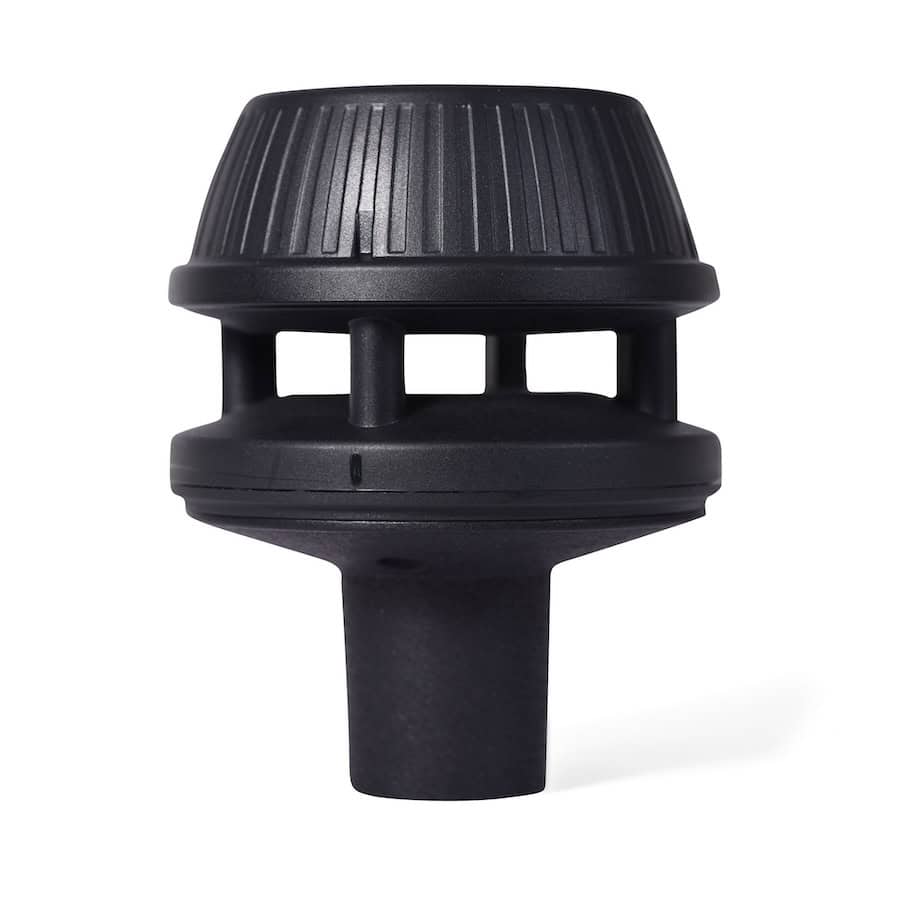

The versatile unit is designed to be surface-mounted, with an adapter for easy pipe-mounting. It can be powered by 5V USB, and interfaces with industry-standard autopilots, data loggers, control systems and displays without the need for an external converter.
Weighing just 170g with a low profile, the FT602-SM is ideal for flight control and environmental monitoring applications on SWaP-limited drone platforms.
| Dimensions (D x H): | 77.2 x 57.5 mm |
| Weight: | 170g |
| Supply Voltage: | 5 – 24 VDC |
| Current: |
28 mA nominal (24 VDC) 40 mA (5 VDC) |
| Wind Speed Measurement: |
Range 0 - 75m/s Resolution 0.1m/s Accuracy ±1% (at 25m/s at datum) |
| Wind Direction Measurement: |
Range 0 to 360° Resolution 1° Sensor Accuracy ±1° (at 25m/s at datum) Compass Accuracy 5° RMS |
| Acoustic Temperature Measurement: |
Range -20 to +60°C Resolution 0.1° Accuracy ±2° (at 21°C) |
| Pressure Measurement: |
Range 540 - 1200hPa Resolution 0.0001hPa Accuracy ±0.25% |
| Tilt Measurement: |
Range -40 to +40° Resolution 0.1° Accuracy ±7.5° |
| Data Update Rate: | Up to 10 Hz |
