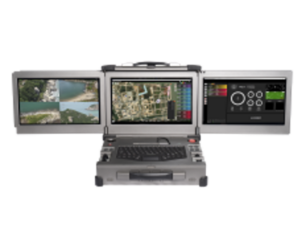

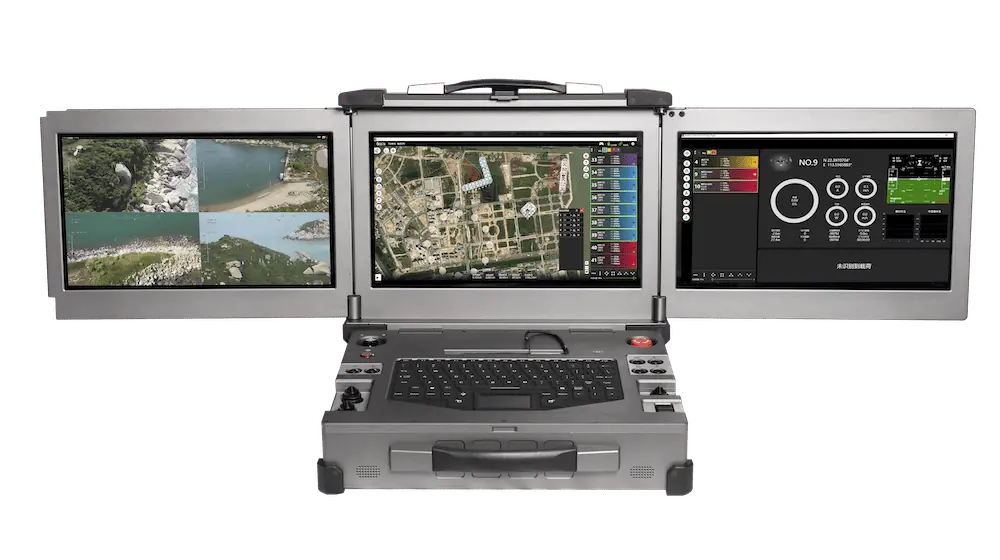

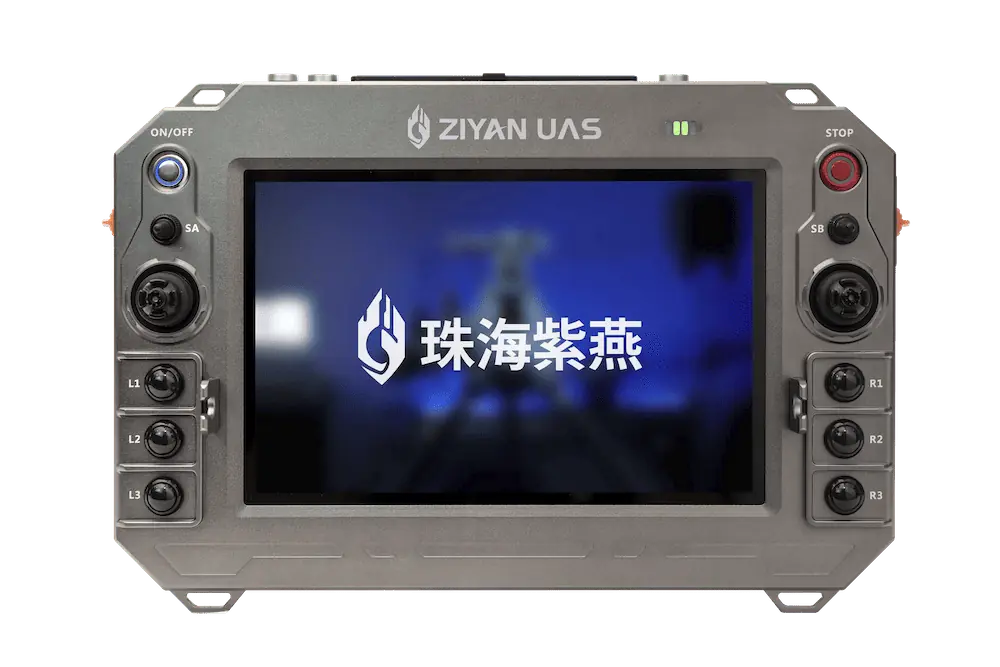

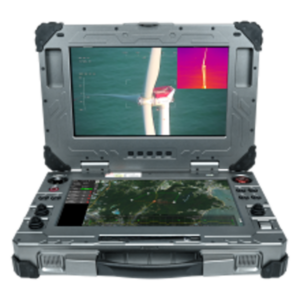

Ziyan GCS (Ground control station) is a rugged, military standard command center for unmanned aircrafts. The ground control station features multiple variations that include the portable handheld ground control station with control sticks, buttons, knobs and switches, dual-screen laptop type ground control station with control sticks, buttons, knobs and switches and the tri-screen laptop type ground control station with keyboard, control sticks, buttons, knobs and switches.
The GCS is portable and easy to transport. The ground station also comes with the GCS software, which is used to connect with the unmanned aircraft and provide real time control over the unmanned aircraft. The GCS software comprises of all the telemetry data, mission planning, flight commands & control, fail safe, aircraft settings and parameters.
Specifications
| Handheld Ground Control Station | Dual Screen Ground Control Station | Tri-Screen Ground Control Station | |
 |
 |
 |
|
| Battery | 3h | 6h | 6h |
| Operating Temperature | -20°C ~ +55°C | -20°C ~ +50°C | -20°C ~ +50°C |
| Storage Temperature | -25°C ~ +60°C | -25°C ~ +60°C | -25°C ~ +60°C |
| Battery Capacity | 6400mAh | 10050mAh | 16850mAh |
| Energy | 97.72wh | 148.74wh | 247.9wh |
| I/O Interface | Network port*2; USB*4; HDMI*1; COM*1; Audio*1; SIM*1; 19V power supply*1 |
Network port*2; USB*4; HDMI*1; SIM*1; COM*1; Audio*1; 19V power supply*1 |
Network port*1; USB*4; HDMI*1; SIM*1; audio*1; WIFI/4G antenna*2; BNC antenna*4; 19V power supply*1 |
| Number of Channels | 17 channel | 16 channel | 16 channel |
