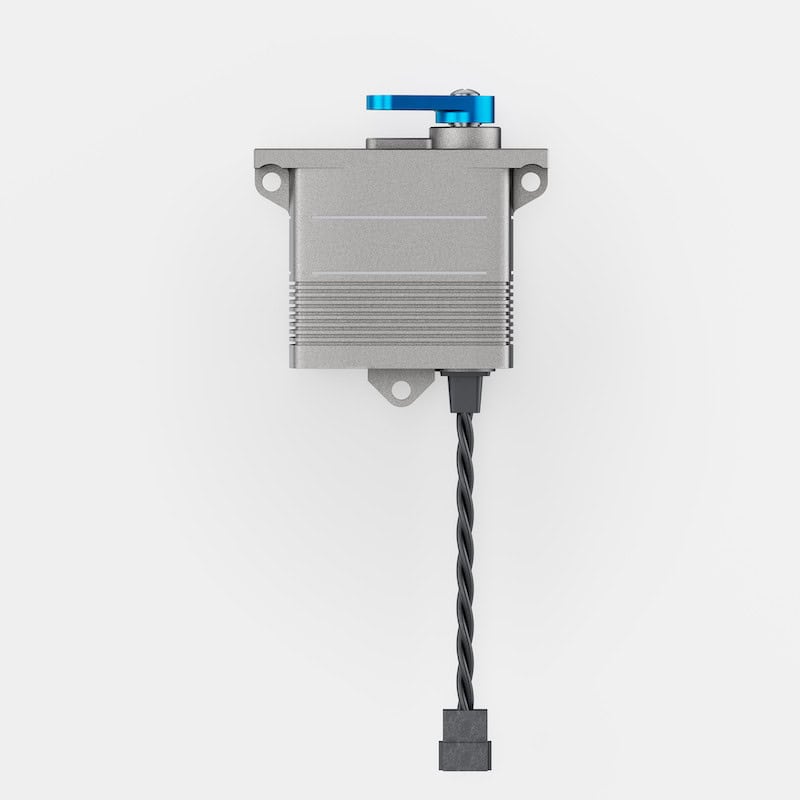

The Volz Servos DA 15 actuator is engineered for UAV applications that demand reliable operation under extreme environmental conditions. Developed to meet stringent requirements for durability and protection, the DA 15 extends the proven DA 13 series with enhanced sealing, a solid aluminum housing, and integrated electromagnetic shielding. Machined from a single block of saltwater-resistant aluminum alloy, the case achieves IP67 compliance, providing complete dust protection and resistance to temporary water exposure.
The DA 15 actuator features an all-steel gear train, fully programmable electronics, and integrated mounting options for both horizontal and vertical installation. Available in both high-speed (DA 15-05-32) and high-torque (DA 15-05-60) configurations, the series provides versatile performance for a range of airborne control functions. The actuator can be supplied with either an integrated M5 round connector system or a pigtail connector, with optional position feedback available for precision monitoring in advanced UAV platforms.
Specifications:
| Width: | 15 mm |
| Supply Voltage (Rated): | 5 VDC |
| Rated Current: | 0.3 A |
| Peak Current: | 0.9 A |
| Interface: | PWM |
