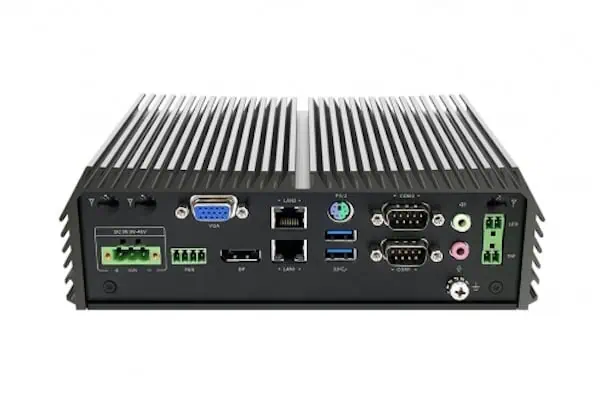

The F-600 is Videosoft's most powerful and versatile video recorder, offering four direct IP camera inputs or up to eight with a switch, and delivering up to eight simultaneous streams for the utmost in situational awareness. Featuring a suite of NVR capabilities, it also offers a local user interface option for easy viewing, control, and review of cameras and recordings through a connected monitor.
The system is based around Videosoft's revolutionary video compression and transmission technology, providing reliable and low-latency streaming that adapts dynamically to changing network conditions. Encoding can be performed at bitrates of as low as 1 kbps and up to 3Mbps with full HD.
The rugged unit is MIL-STD-810G-rated with an operating temperature range of -40 to 70°C for operation in harsh field environments.
Specifications:
| Dimensions (L x W x D): | 203 x 142 x 66.8 mm |
| Weight: | 1.94 kg |
| Power Consumption: | 27W @ 24 VDC (no PoE) |
| Camera Inputs: | 4 direct IP, up to 8 with switch |
| Stream Outputs: | 1, 2, 4 or 8 simultaneous stream output options at full rate |
| Encoding: |
1kbps low-res to 3Mbps high-res 1080p 30fps transcoded or unlimited Native mode |
| Interfaces & Connectors: |
4x RJ45 PoE 2x RJ45 2x USB-A 3.2 Gen2 2x USB-A 3.2 Gen1 2x USB-A 2.0 Internal 1Tb (optional 2Tb) or external media 4G LTE cellular modem w/GPS, external Full SIM Push-Push slot (use slot 1 only) 3x SMA Female – LTE Main, LTE Aux & GPS |
