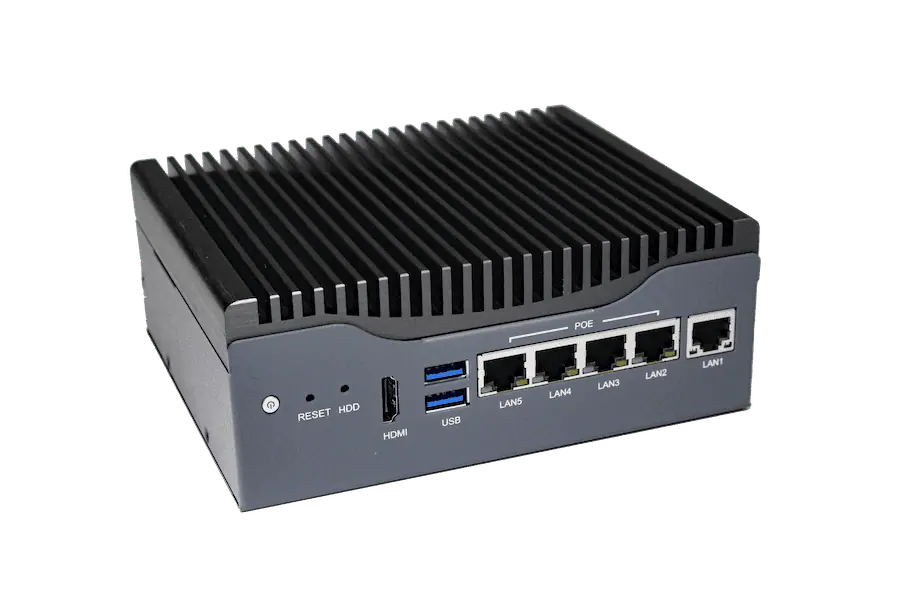

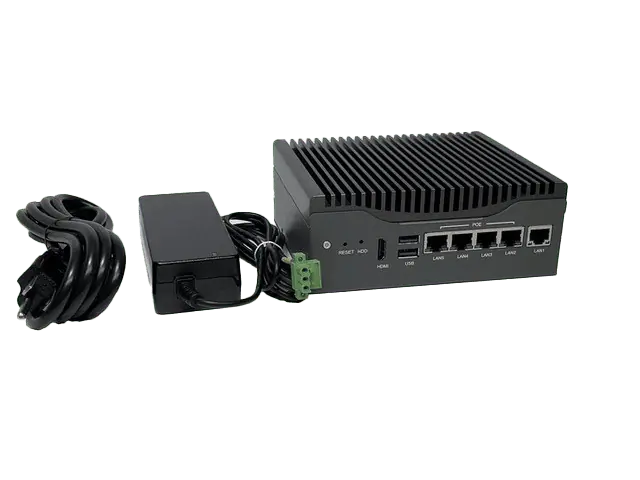

FireBird F-300 Video Encoder

The FireBird F-300 is a versatile video gateway offering four PoE ports for direct connection of IP cameras, and delivering up to four simultaneous streams at full HD. The rugged unit is certified to MIL-STD-810G, making it highly suited to demanding UAV, UGV and USV deployments in harsh environments.

The system is based around Videosoft's revolutionary video compression and transmission technology, providing reliable and low-latency streaming that adapts dynamically to changing network conditions. Encoding can be performed at bitrates of as low as 1 kbps and up to 3Mbps with full HD.

The unit provides local storage for recording, as well as a GPS receiver and a 4G LTE cellular modem.

Specifications:

Dimensions (L x W x D): 160 x 134 x 62 mm
Weight: 1.5 kg
Power Consumption: 12W @ 12 VDC (no PoE)
Camera Inputs: 4 direct IP
Stream Outputs: 1, 2 or 4 simultaneous stream output options at full rate
Encoding: 1kbps low-res to 3Mbps high-res 1080p 30fps transcoded or unlimited
Native mode
Interfaces & Connectors: 4x RJ45 PoE
1x RJ45
2x USB-A 3.2 Gen 1
Internal 1TB (2TB optional), or external storage
4G LTE cellular modem w/GPS, external MicroSIM push-push slot
3x SMA Female – LTE Main, LTE Aux & GPS
