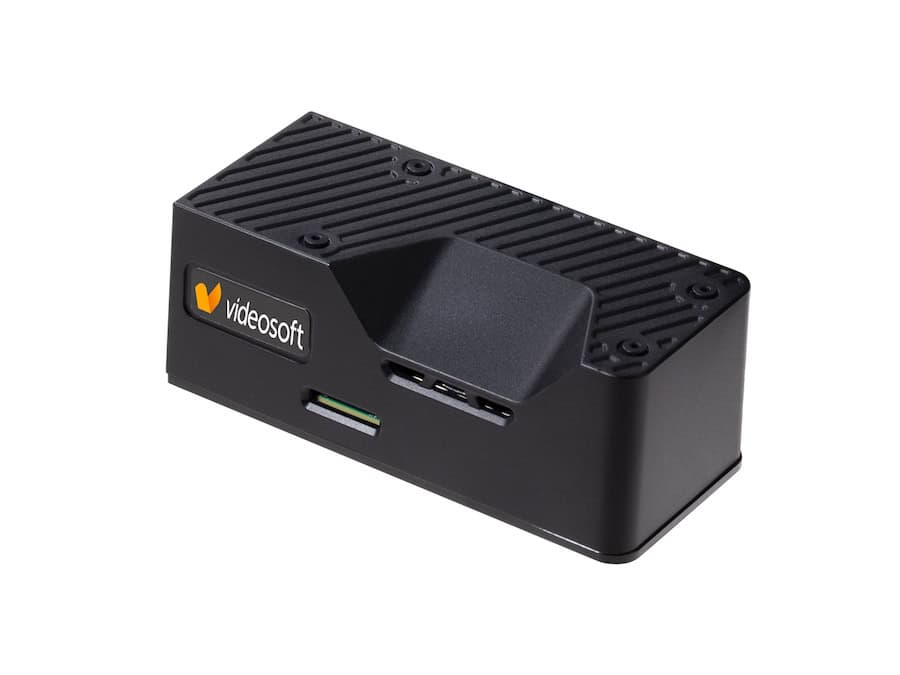

The FireBird™ F-100 5G is a compact video encoder designed for real-time video transmission using cellular, satellite, or mesh networks. It integrates a 5G/4G modem with GPS, low-bandwidth video compression, and support for simultaneous streams. The encoder is purpose-built for video monitoring, drones, UAVs and USVs, which require fast setup, high mobility, and connectivity even in low-bandwidth and congested environments.
The device comes pre-installed with FireLight™, our bandwidth efficient video encoding software, providing reliable and low-latency streaming that adapts dynamically to changing network conditions. Encoding can be performed at bitrates as little as 1 kbps while maintaining usable image quality to high resolution, up to 30fps full HD.
Total Recall™, our highlighted unique feature, can retrieve high-resolution pixels from selected areas of interest within the low-resolution stream. It’s built for operations where detail, clarity, and key information validation are non-negotiable.
Specifications:
| Dimensions (L x W x H): | 93.30 x 49.50 x 35 mm |
| Weight: | 0.13 kg |
| Power Consumption: | ~4W |
| Camera Inputs: | 1 Ethernet, 1 USB-C Ethernet adapter or 1 USB camera with UVC, up to 4 with switch |
| Stream Outputs: | Up to 2 simultaneous stream outputs in full HD |
| Encoding: | 1 kbps low-res to 3Mbps full HD transcoding and Native mode |
| Interfaces & Connectors: |

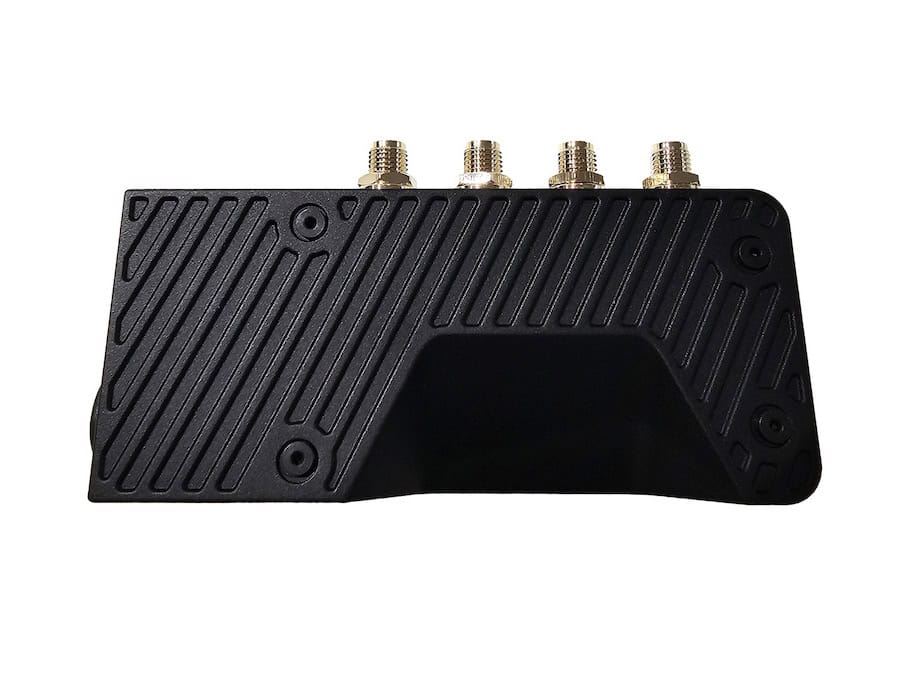

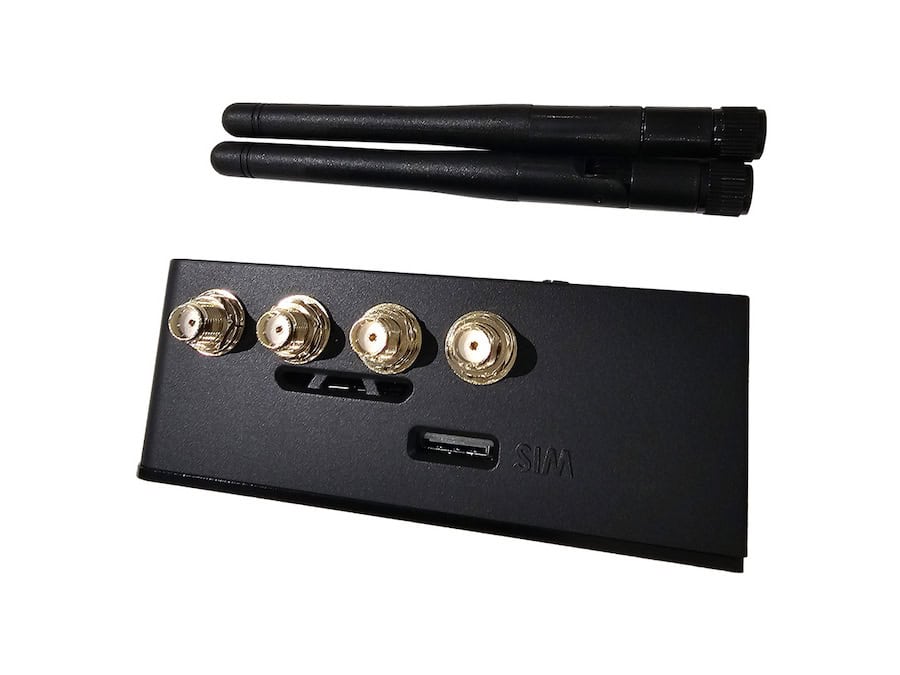

1x RJ45 1x USB-OTG (Type C) Micro SD card slot (up to 1Tb) or external storage 5G LTE cellular modem w/GPS Micro SIM Push-Push slot 2x SMA Female – LTE Main and GPS (LTE Aux optional to replace GPS) |
