UXV Technologies is a leading developer of professional agnostic robotic technologies such as Ground Control Systems (GCS), handheld controllers, and FOC ESC (Field-Oriented Control ESC). Our agnostic products enhance the capabilities of a wide variety of robotic platforms and provide systems integrators with trusted solutions, allowing them to focus on their core business.

All our products feature a variety of customization options, and can be specifically fine-tuned to exact requirements suited to unique robotic and unmanned platforms including UAVs (unmanned aerial vehicles), UGVs (unmanned ground vehicles) and UUVs (unmanned underwater vehicles).

Custom Ground Control Stations (GCS)

Ground Control Systems for Drone Command and Control

Our software and radio agnostic Ground Control Stations and handheld controllers are based on open industry standard interfaces, allowing developers to easily design and test custom applications. All our GCS solutions are provided as custom packages, allowing you to choose operating systems, input device positions, specific communications protocols and methods, and more.micronav Ground Control System

The rugged ground control systems are ideal for intuitive drone command and control including ROVs (remotely operated vehicles), UGVs and other robotic vehicles. With high reliability and built-in environmental protection, they are designed to support a range of professional applications in challenging conditions, including law enforcement and first responders, defense and special forces, construction and more.

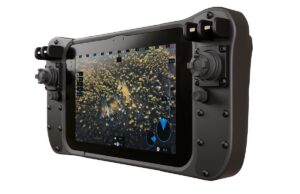

Micronav – GCS for harsh environments

Micronav Ground Control StationThe Micronav GCS is based on the Panasonic FZ-M1, a military-grade MIL-STD-810G and IP65-rated tablet designed for remote vehicle control in even the harshest environments. The rugged handheld controller features a daylight-readable, high-sensitivity, multi-touch display that can be operated while wearing heavy gloves.

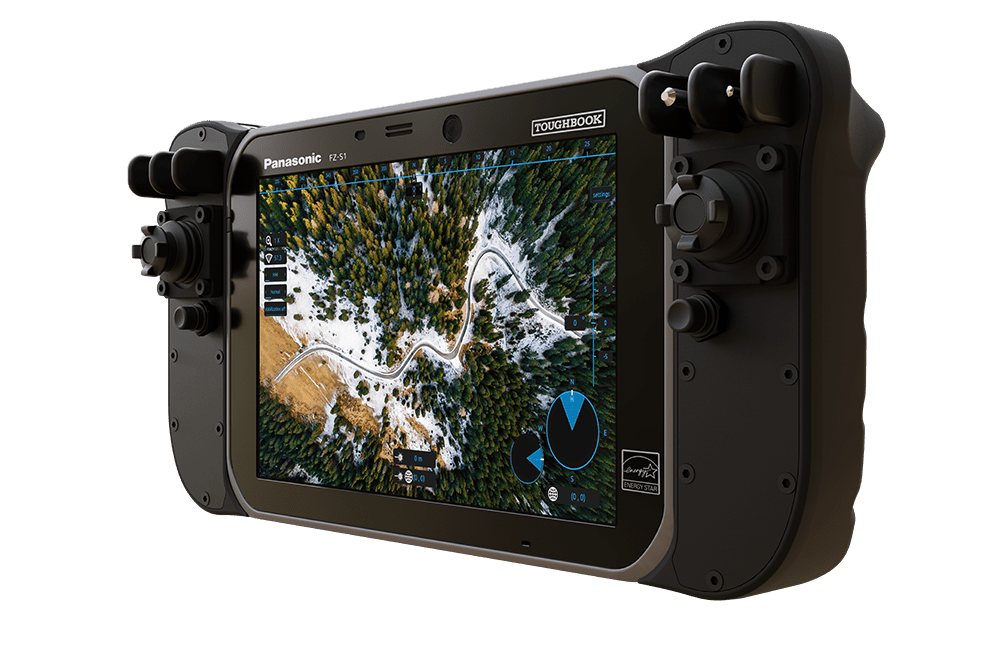

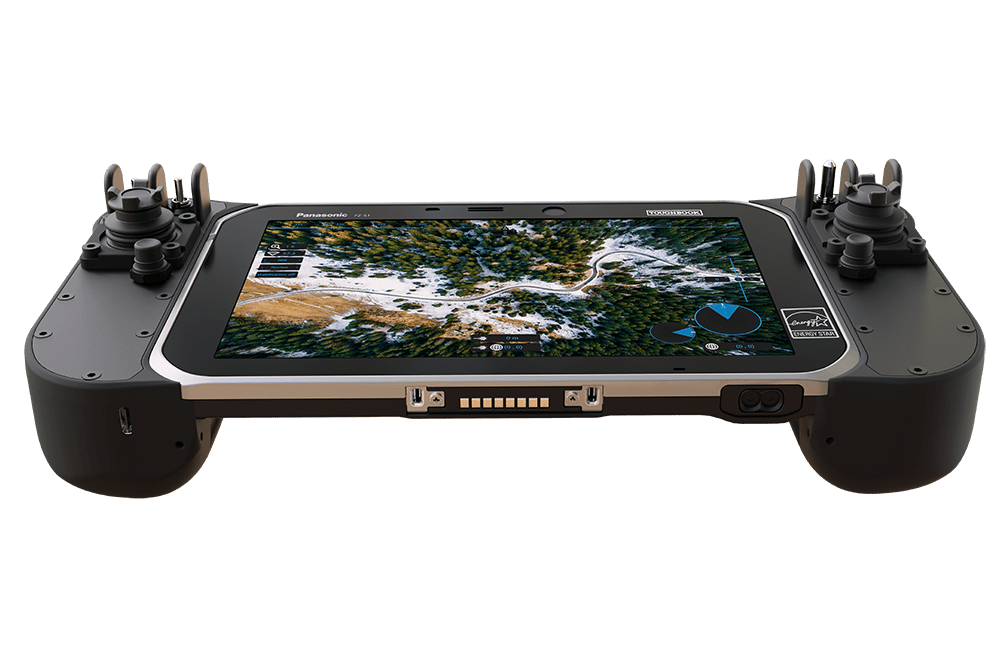

Micronav Android GCS

The Micronav Android GCS is built on the military-grade Panasonic FZ-B2 Android tablet, and like the Micronav GCS it features a drop-resistant MIL-STD-810G and IP65-rated design for reliable operation in challenging environments. It incorporates a daylight-readable, high-sensitivity, multi-touch display that can be operated while wearing heavy gloves. This enables the rugged android GCS to work even in the most restrictive scenarios.

micronav android gcs
micronav android gcs

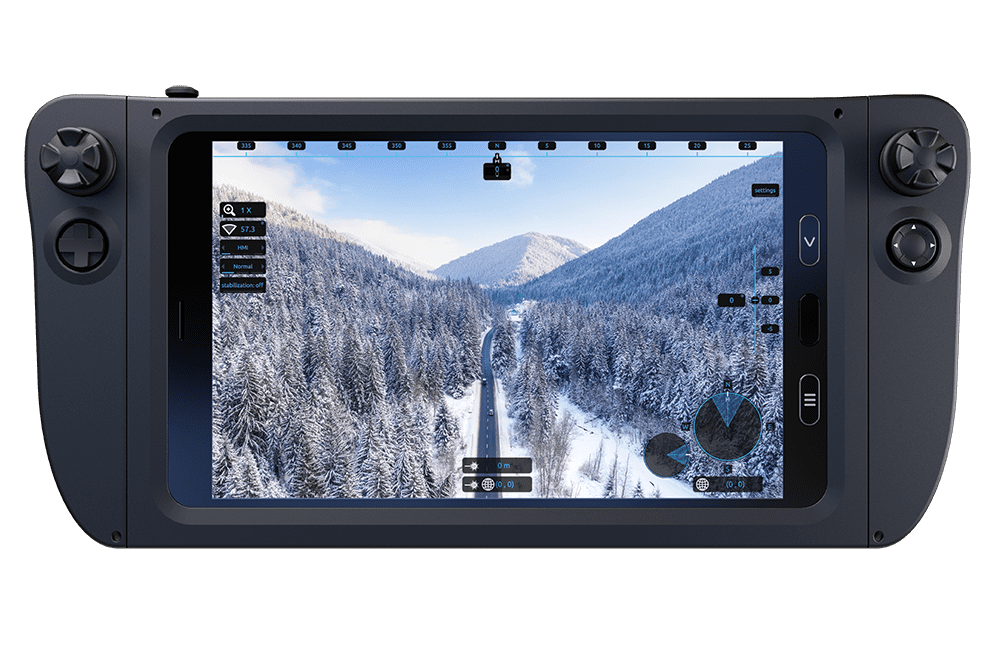

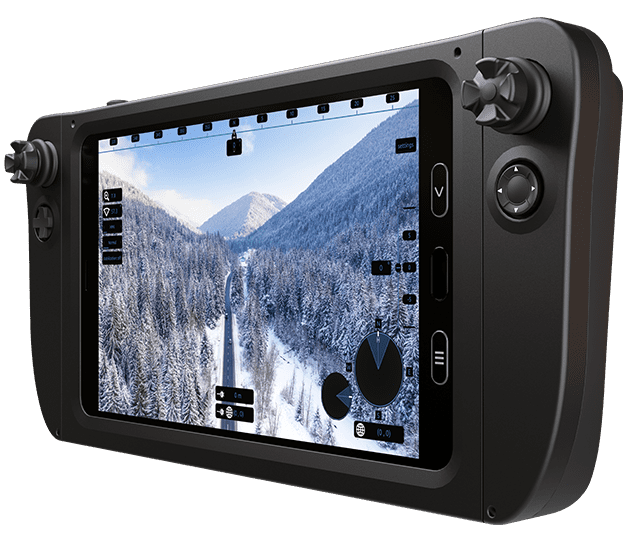

Navigator Tab2 – tablet docking controller

The Navigator Tab2 is provided as a standalone docking extension to the Samsung Galaxy Tab Active2 tablet, featuring fully-customizable joysticks and buttons. It supports our NavBay platform, allowing users to easily interchange leading makes of radio such as Doodle Labs, Silvus Technologies and Persistent Systems.

navigator tab 2 UAV GCS
navigator tab2 UAV GCS

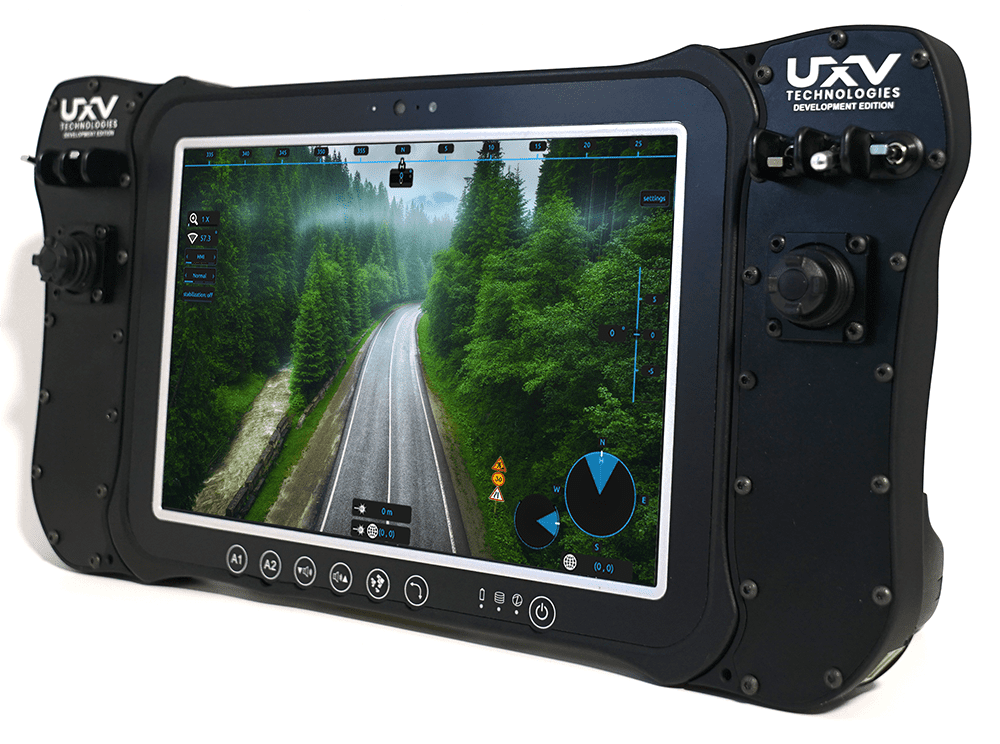

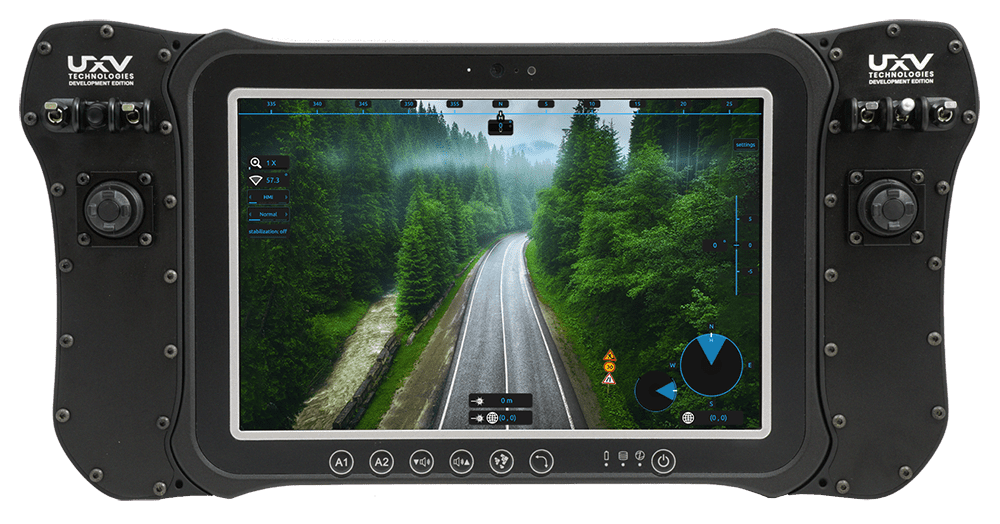

Aeronav – rugged GCS

The Aeronav is a professional GCS for drones and robotics, based around the Panasonic Toughpad FZG1 military-grade tablet. The versatile, fully customizable handheld controller is ideal for a wide variety of field environments including industrial, defense and construction applications.

aeronav uav gcs
aeronav uav ground control station

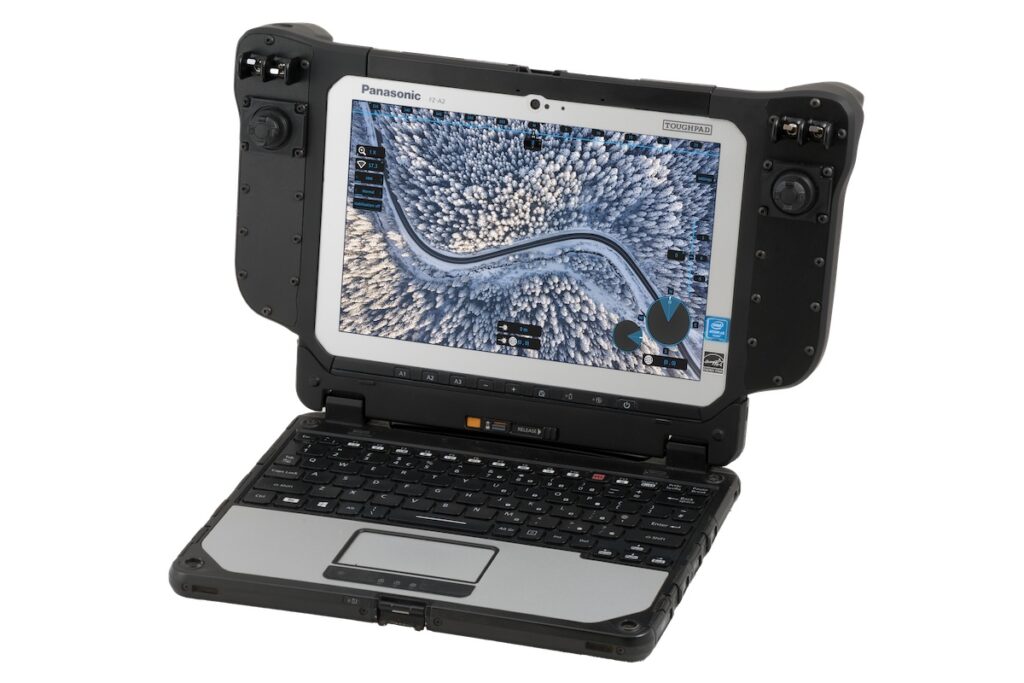

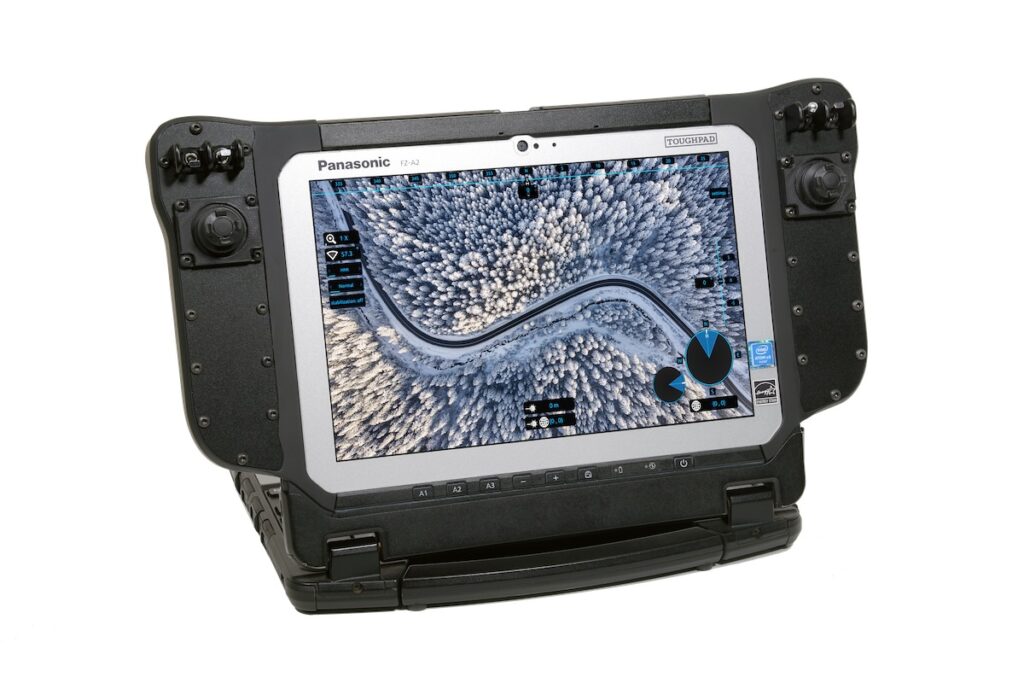

C2Nav – customizable hybrid GCS

The C2Nav is a hybrid ground control station for UAVs and unmanned systems, with a detachable keyboard for flexible mobile operations. Based around the rugged Panasonic CF-20 military-grade tablet, the C2Nav features a high degree of customization, from joysticks and buttons to extra memory and processor power.

c2nav ground control station
c2nav hybrid Ground Control System
c2nav hybrid gcs

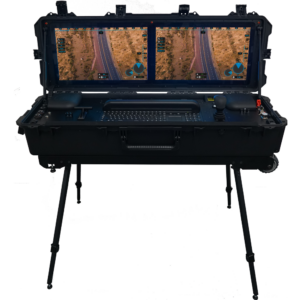

g2nav2 Portable GCSG2Nav – dual-screen GCS

The G2Nav is a powerful high-performance GCS for professional drone and robotics platforms, featuring two 21.5-inch screens, a built-in keyboard, and multiple configurable buttons, joysticks and switches. The highly customizable platform is built on an Intel-based computer running Microsoft Windows or Linux.

C2Nav Android – hybrid GCS

The C2Nav Android is a hybrid ground control system for drones and robotics that features a detachable keyboard for enhanced mission-critical mobile productivity. Built on the military-grade Panasonic FZ-A3 Android tablet, it can be fully customized with extra memory and processor power, custom software and a variety of other options.

c2nav ground control station
c2nav hybrid Ground Control System
c2nav hybrid gcs

Learn more about our Custom Ground Control Stations

UAV Camera Gimbal Sensors

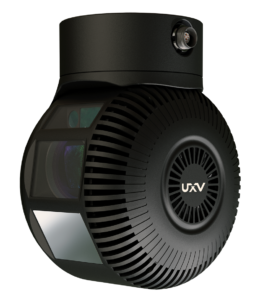

Øi Lite – RGB and thermal gimbal payload for dronesoiLite Drone thermal sensor RGB camera

The Øi Lite is a high-performance, low-SWaP (size, weight and power) visible and thermal camera gimbal for professional UAV platforms.

The agnostic gimbal has been designed for easy integration with a wide variety of drone platforms and can be connected via Ethernet and controlled through CAN and UART.

The Øi Lite combines a Full HD RGB camera featuring up to 10x zoom with a 640×512 FLIR Boson thermal camera that delivers frame rates of up to 60 Hz. The gimbal is ideal for capturing and recording vital detail under even the most difficult lighting conditions, and utilizes a built-in video encoder for advanced image processing functionality.

Specifications:

Dimensions (D x H x W) 92 x 115 x 73 mm
Power Input 10 – 60V, 20W approx
RGB Camera Resolution Full HD, 1080p (1920 x 1080)
RGB Camera Lens f = 3.3 mm (wide) – 33 mm (tele), f/1.8 to f/3.4
RBG Camera Horizontal FOV 1080p: 59.2° (wide end) to 6.7° (tele end)
Thermal Camera Wavelength Long wave infrared, 7.5µm-13.5µm
Thermal Camera Resolution 640 x 512 or 320 x 256
Thermal Camera Lens f=4.9 mm, f/1.1

Learn more about our UAV Camera Gimbals

Field-Oriented Control ESC

QuadroCube – High-efficiency FOC ESC for UAVsQuadroCube FOC ESC

Quadrocube is an advanced field-oriented control (FOC) electronic speed controller (ESC) that can be easily integrated into UAVs and drones. The reliable, high-efficiency module integrates four powerful motor controllers with state-of-the-art sensorless FOC for a fast, precise control loop.

Featuring seamless integration with the Pixhawk 2-based Cube autopilot, as well as with radio links and an optional companion computer, the FOC ESC QuadroCube also offers extremely low heat production and acoustic footprint.

Specifications:

Input Voltage 3 – 12 Lipo or Li-Ion cells, 60V absolute max
Motor Current 50A continuous
Loop Types RPM, Current, Duty Cycle
Commutation Modes FOC, trapezoidal
Switching Frequencies 20 kHz, 40 kHz, trapezoidal

Learn more about our UAV Electronic Speed Controllers
