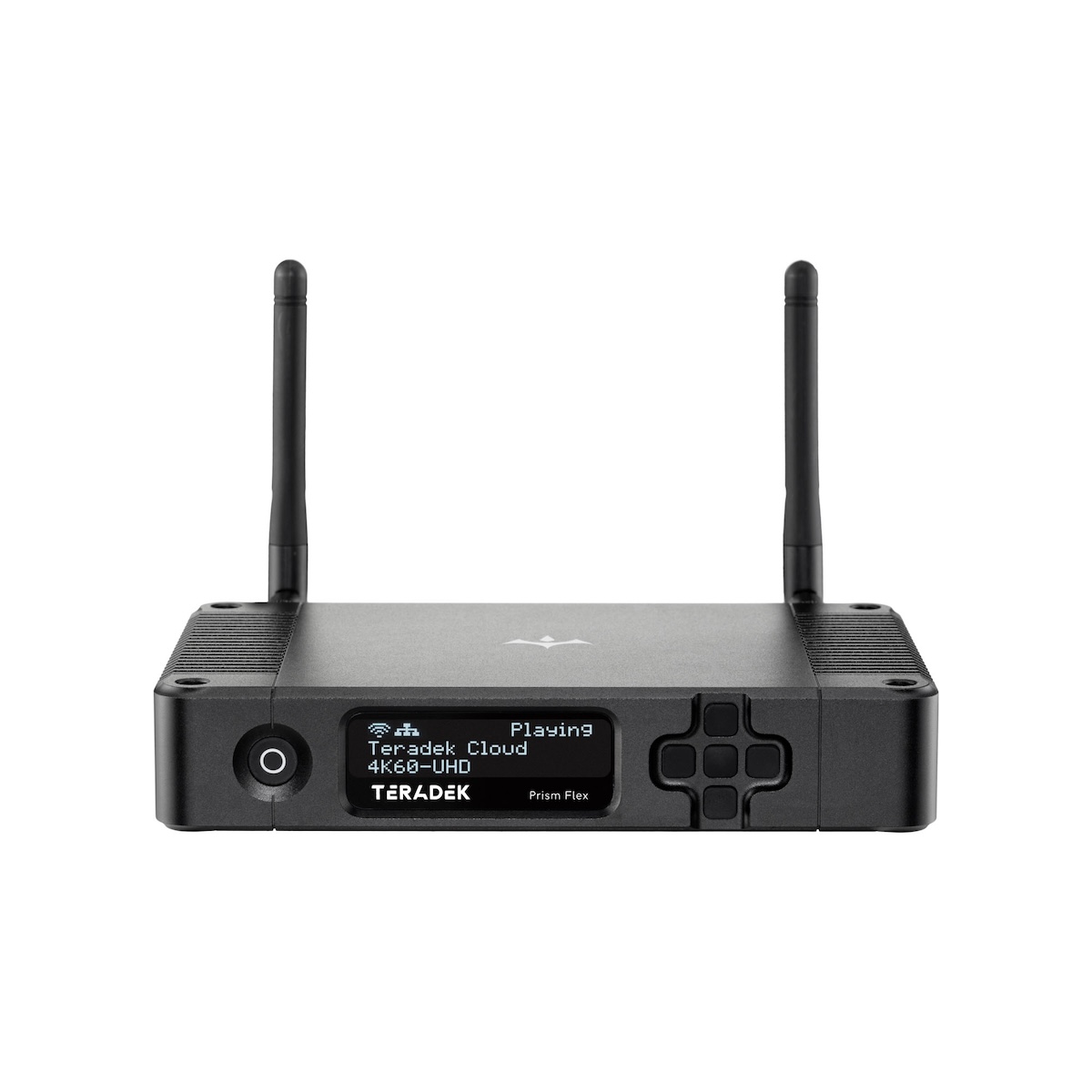

Prism Flex is a lightweight and highly versatile video encoding and decoding platform designed for UAVs, robotic systems and other SWaP-constrained applications. Delivering professional-grade video transmission capabilities in a compact form factor, it enables operators to rapidly deploy real-time video intelligence for tactical, public safety and defense missions where space, weight and power consumption are critical considerations.
The flexible platform can be configured as either an encoder or decoder, allowing it to support a wide variety of operational workflows. With support for both H.264 and H.265 compression, Prism Flex delivers high-quality video while optimizing bandwidth usage, making it well suited to operations that require reliable video transport across constrained or variable network environments.
Designed for distributed and mobile deployments, the system can transport video over cellular, Ethernet, Wi-Fi, satellite and other IP-based networks. Support for a broad range of industry-standard streaming protocols ensures seamless integration into existing video ecosystems, while low-latency performance enables operators and decision-makers to receive actionable intelligence with minimal delay.
Prism Flex also provides advanced capabilities including secure video distribution, return video and remote monitoring, allowing live feeds to be shared across multiple users and locations while maintaining operational security.
Specifications:
| Dimensions (W x D x H): | 6.25 x 3.6 x 1.4" (162 x 92 x 35mm) |
| Weight: | 11.6oz (328.9 g) |
| Input Voltage: | 6 - 28V |
| Power Consumption: | 20W nominal
36W max |
| Supported Video Bitrate: | 250 Kbps to 85 Mbps with advanced encoder and rate control configuration |
| Video Inputs: | 1x 12G/6G/3G/HD/SD-SDI (75 Ω BNC)
1x HDMI 2.0 Type-A receptacle |
| Video Outputs: | 1x 12G/6G/3G/HD/SD-SDI (75 Ω BNC) |
