SPRINT-Nav Mini combines inertial, Doppler, attitude, and depth sensors into a single compact unit, delivering high-performance navigation and control for AUVs, ROVs, and USVs. Designed as a complete subsea navigation solution, it replaces four separate instruments, reducing cabling, cost, and integration time. Built on Sonardyne’s hybrid acoustic–inertial technology, it provides reliable positioning and motion data even in GNSS-denied environments and around offshore structures. Measuring only 213 mm in height and 148 mm in diameter, it is light, rugged, and ready to deploy for inspection, survey, or research operations.

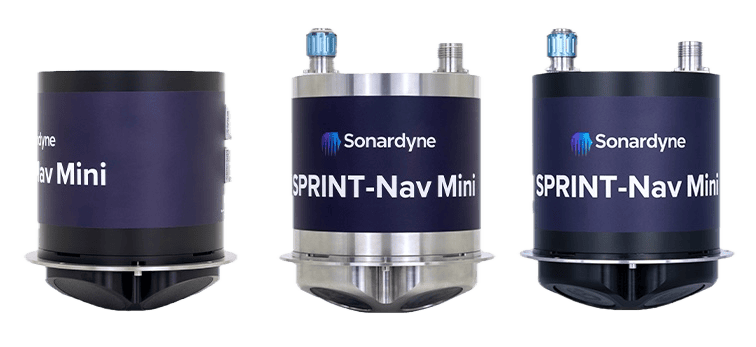

Pre-calibrated for instant use, SPRINT-Nav Mini requires no in-field alignment. Its true-north-seeking gyrocompass and 500 kHz DVL deliver accurate heading, attitude, and velocity data, maintaining bottom lock at up to 200 meters altitude. Capable of outputting up to 200 updates per second with 0.05% distance-traveled accuracy, it ensures continuous, stable navigation in challenging underwater environments. Available in 300-meter acetal or 4,000-meter titanium versions, with a side-connector option for tight installations, SPRINT-Nav Mini provides a perfect balance of capability, compactness, and affordability for marine robotics.
Specifications:
| Performance | SPRINT-Nav Mini |
| DVL Aided | Typical Survey: 0.05% Distance from Origin: 0.30% |
| Altitude Min/Max | 0.3/200 m |
| USBL and DVL Aided (Precision Improvement) | Up to 5x better |
| Heading (Secant Latitude) with GNSS or USBL, and DVL | 0.10° |
| Heading (Secant Latitude) with GNSS or USBL or DVL | 0.15° |
| Roll and Pitch | 0.02° |
| Angular Rate Range | ±450°/s |
| Velocity Precision (<2 m/s at 50 m Altitude) | <0.4 cm/s |
| Depth Accuracy | 0.01% FS |
| ADCP Profiling Range | 0.4–100 m |
| Velocity Range and RMS (Along Beam) | Up to ±6.7 m/s ±0.4% of measured value |
| Maximum Number of Cells | 255 |
| Maximum Ping Rate | 1 Hz |
| Power Requirements | 24 V dc, 10 W nominal |
| Data Storage | 32 GB internal memory |
| Serial Ports/Protocol | 3x RS232 |
| Interfaces | Ethernet, UDP/TCP, WebUI, 2x trigger inputs (1PPS/DVL trigger), NTP, ZDA + 1PPS out |
| Mechanical Construction |
300 m: POM-C 4,000 m: Titanium |
| Dimensions |
Standard (300 m): 148 x 213 mm Standard (4,000 m): 148 x 213 mm Side connector (300 m): 148 x 187 mm (174 x 187 mm including connector) |
| Weight Air/Water |
300 m: 3.6/0.7 kg 4,000 m: 7.1/4.2 kg |
| Depth Rating | 300/4,000 m |
| Operating Temperature |
300 m: -5 to 40°C 4,000 m: -5 to 50°C |
| Storage Temperature | -25 to 55°C |
