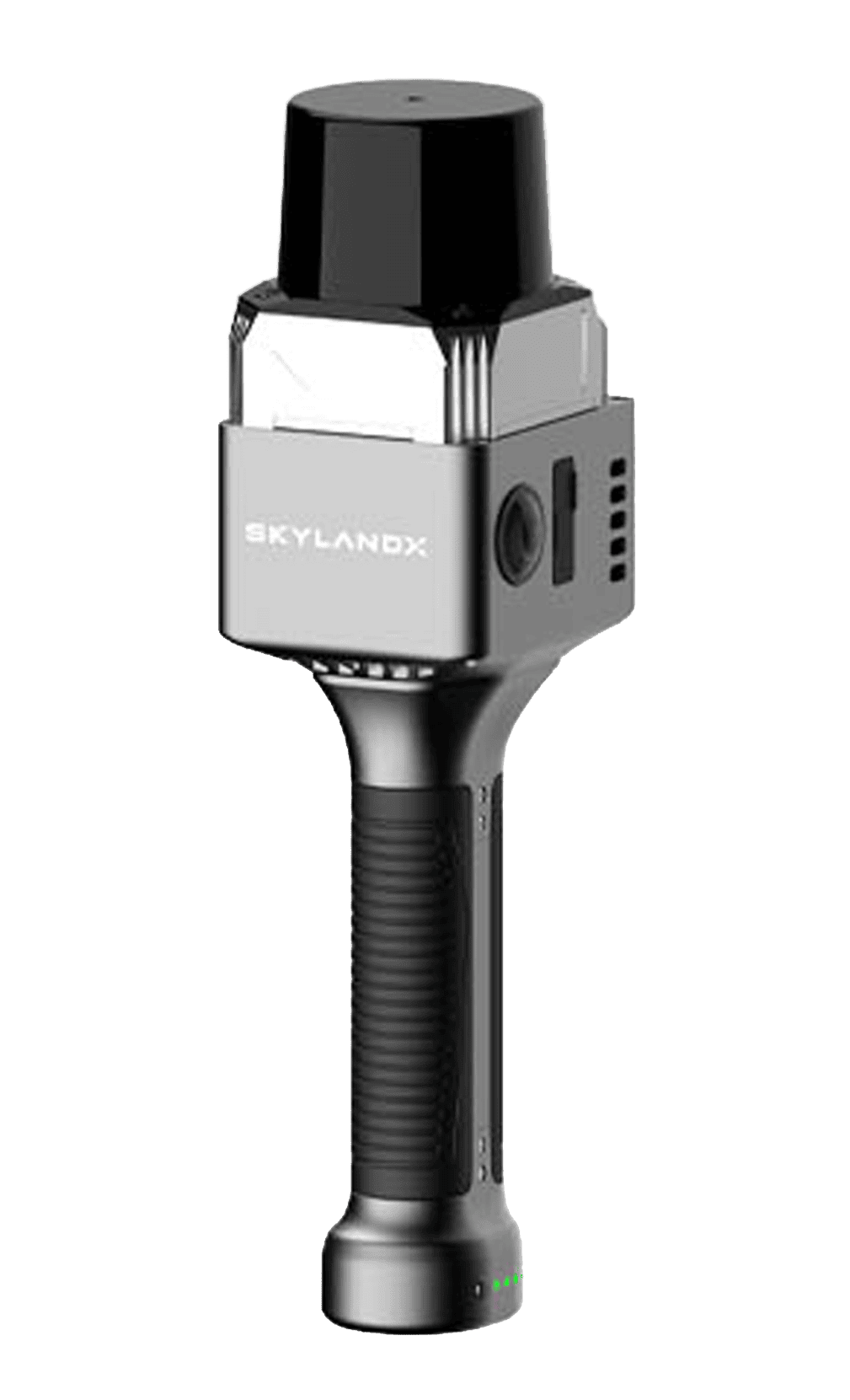

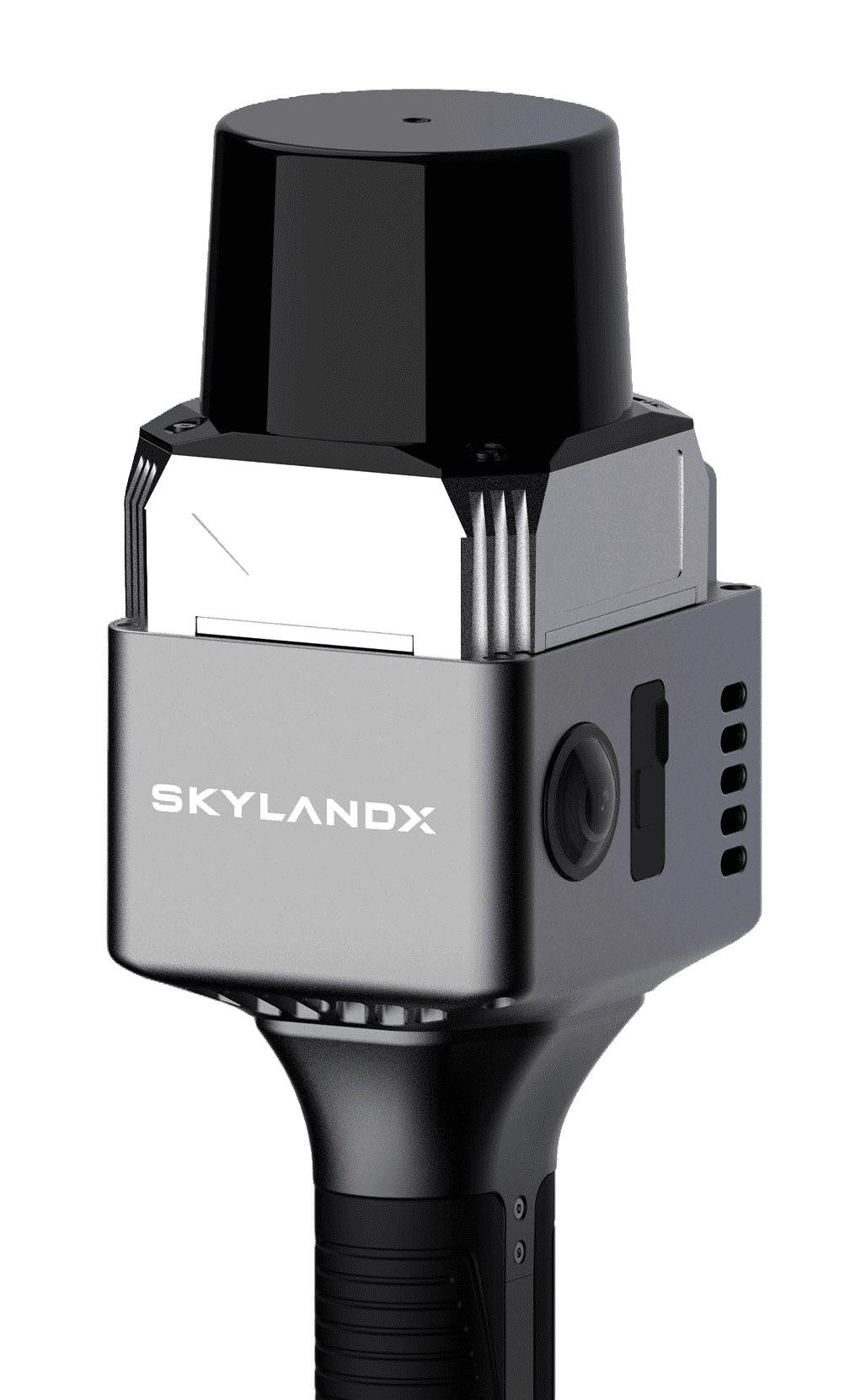

MetaCam Lite is a handheld professional-grade scanning unit developed for accurate short- and medium-range measurement. Its purpose-built non-repetitive LiDAR uses a smaller laser spot and optimized calibration to reduce point distortion and corner noise at the source.
The 216,000 points/sec sensor captures a 360-degree horizontal and 65-degree vertical field of view, including 20 degrees of downward coverage. A minimum range of 5 cm enables detailed capture close to the scanner.
AI-driven SOTA-SLAM algorithms generate accurate and stable spatial results throughout the scan, and the unit’s two 48 MP panoramic cameras add full-color visual context. Smart scan resumption allows longer projects to continue across several sessions without restarting the survey.
Specifications:
| Dimensions | 83.7 x 85 x 139.8 mm main unit 83.7 x 140 x 316.4 mm with battery and mounting plate |
| Weight | 760 g main unit 1,123 g with battery |
| Power Consumption | <20 W |
| LiDAR Point Rate | 216,000 points/sec |
| LiDAR Scan Rate | 10 Hz typical |
| LiDAR Measurement Range | 0.05 to 40 m at 10% reflectivity 0.05 to 70 m at 80% reflectivity |
| LiDAR Field of View | 360 degrees horizontal x 65 degrees vertical (-20 to +45 degrees) |
| Camera Sensor Size | 1/2 in |
| Camera Field of View | 200 degrees horizontal x 200 degrees vertical per camera |
| Point Cloud Thickness | 8 mm |
| Relative Accuracy | 8 mm |
| Absolute Accuracy | 5 cm |
