GRS-T200 Tracking Antenna
The GRS-T200 is a ground tracking solution for UAV ground control stations, based on our SL200 radio data link. Embedding two omnidirectional antennas and two directive antennas as well as a GPS receiver, it provides fully automated high-precision 360-degree LOS tracking and extends transmission range to 100 km for HD video, 130 km for SD video, and more for C&C

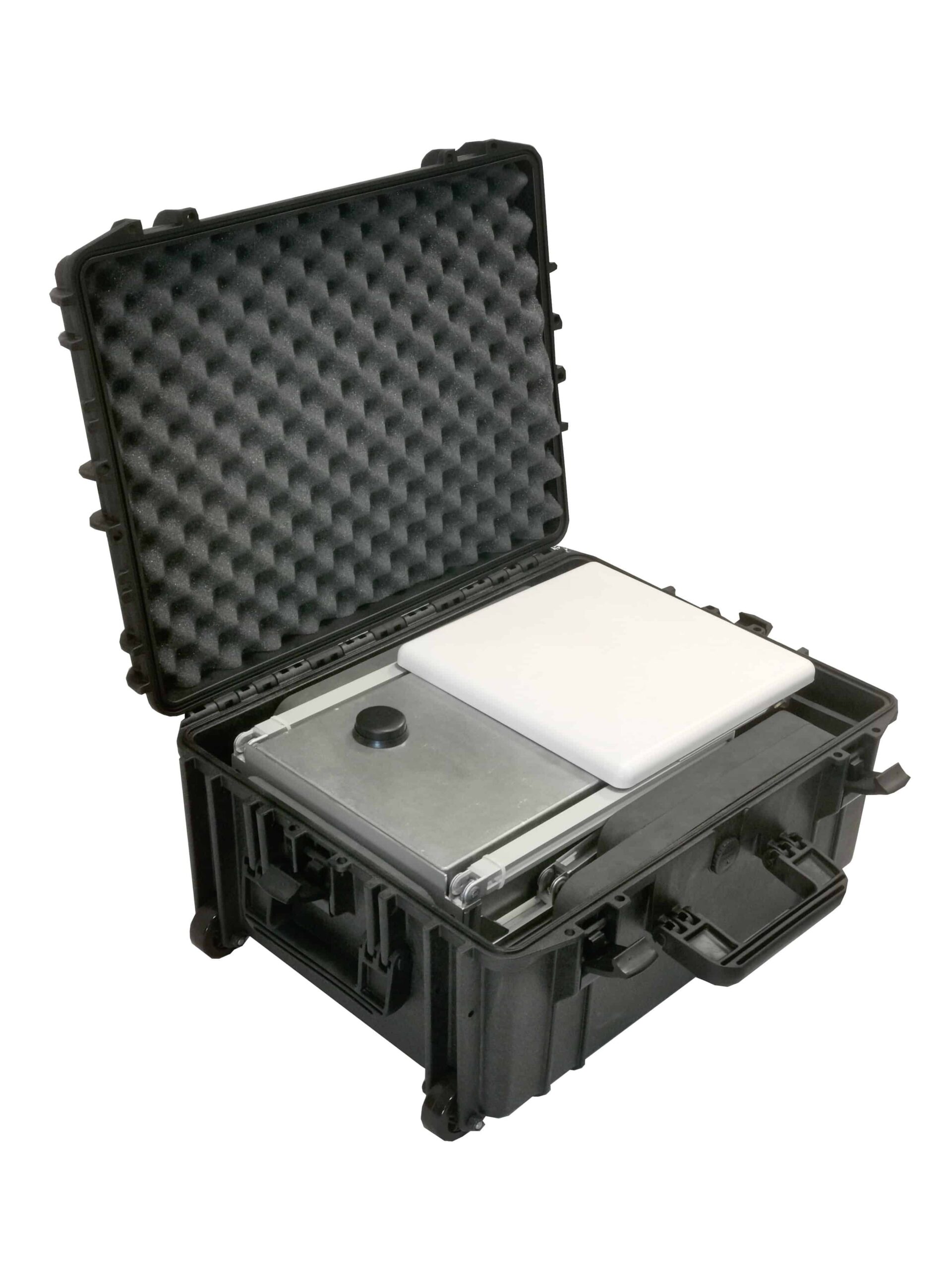

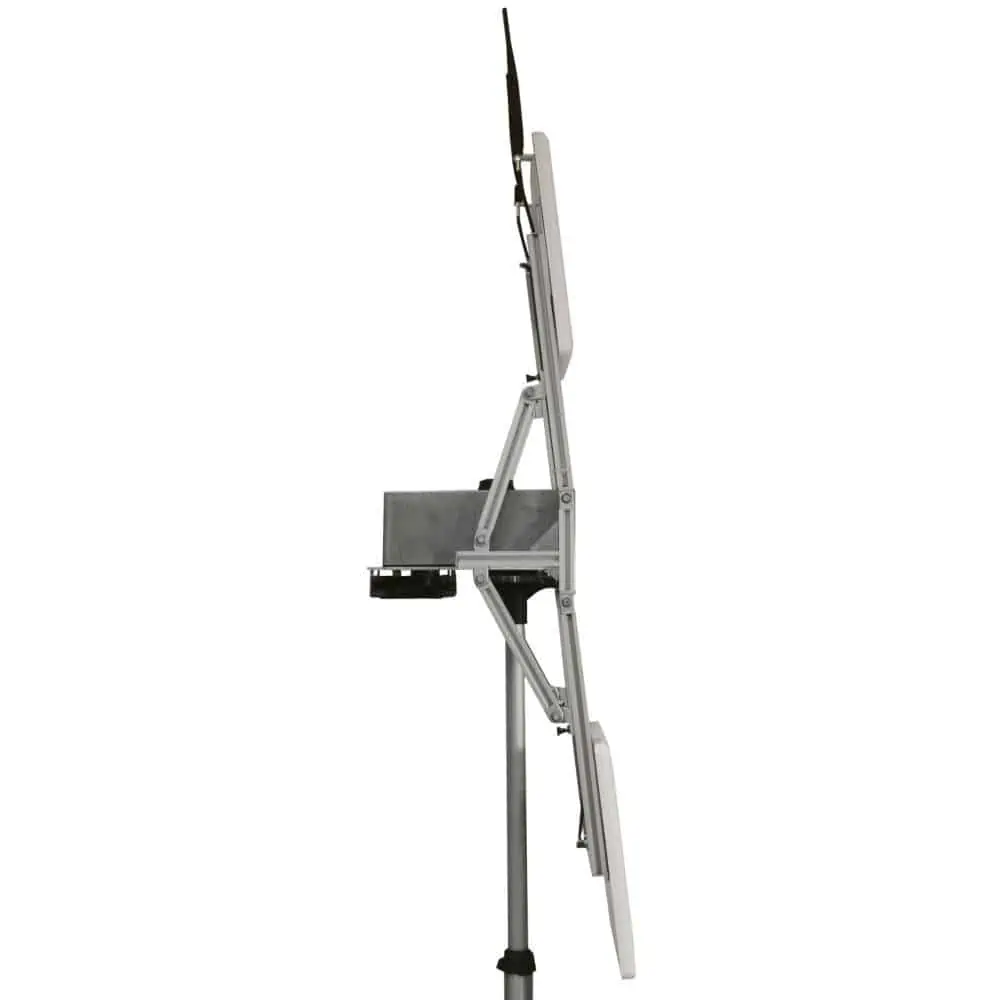

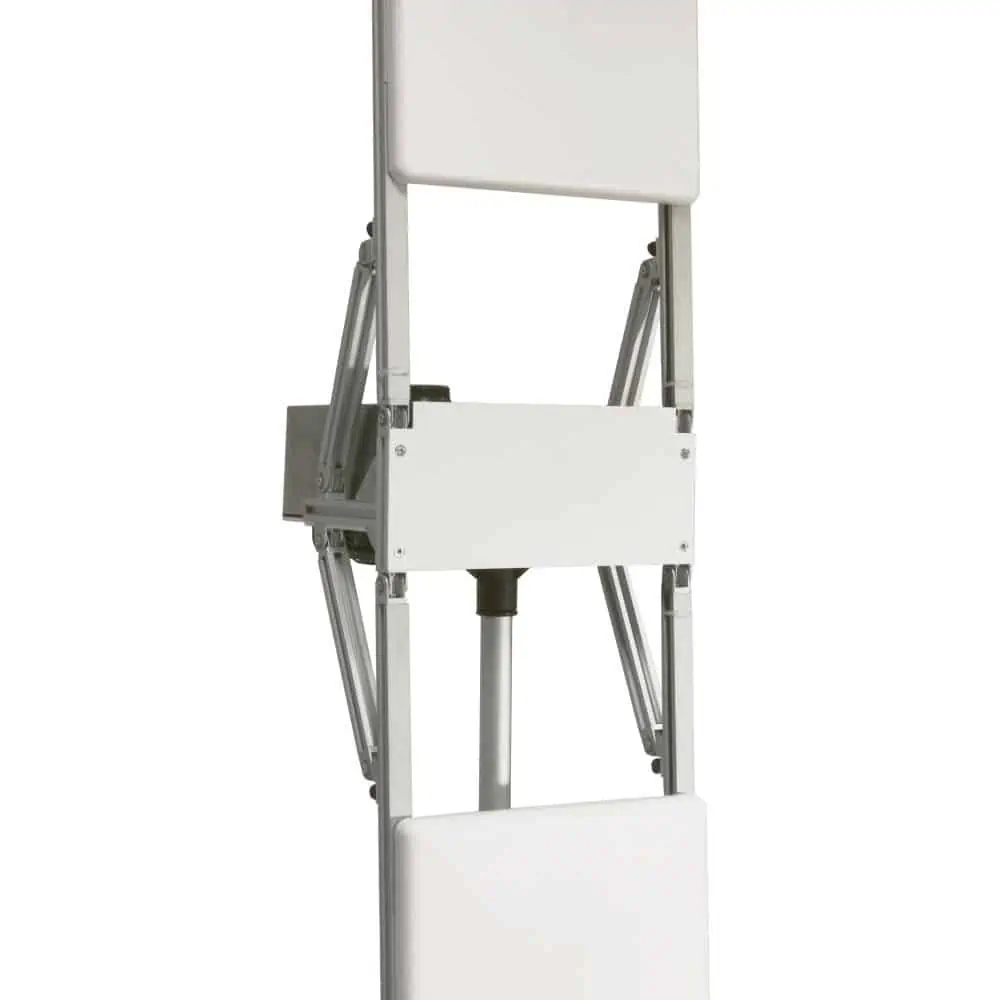

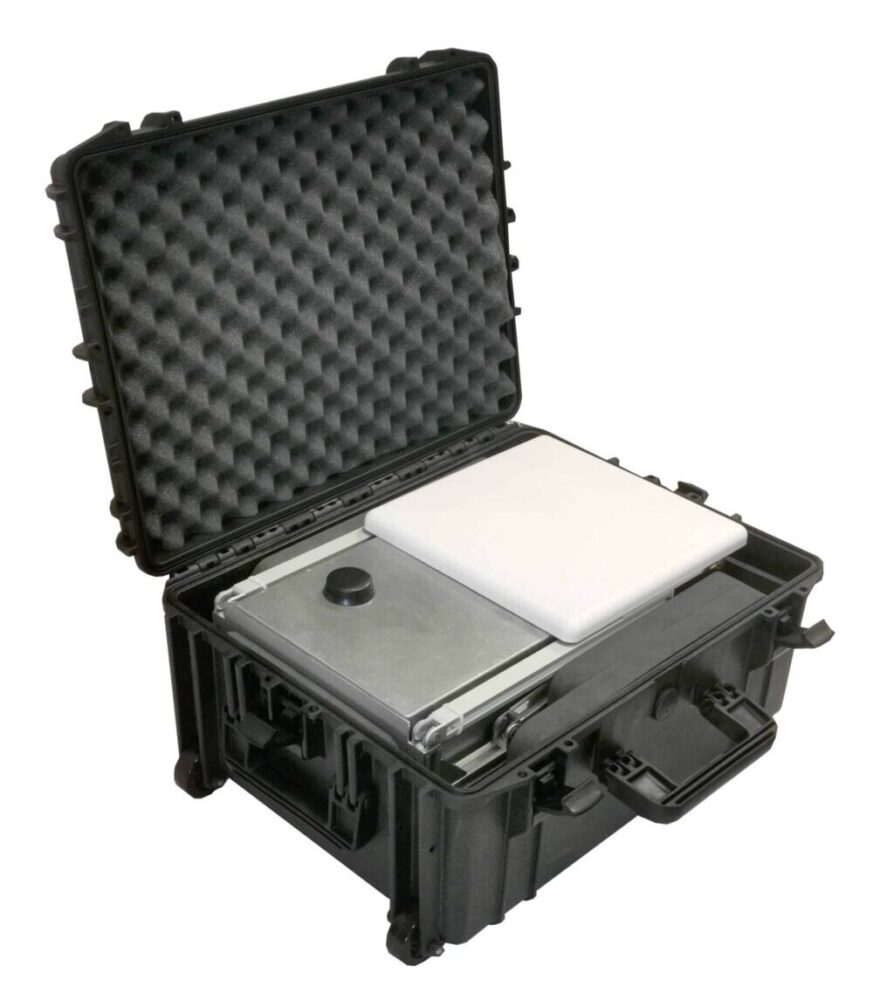

The system has been designed with a compact, foldable aluminium structure that can be deployed in five minutes and can be mounted on a mast or portable tripod.
Specifications:
- Dimensions folded: 50 x 30 x 20 cm
- Dimensions unfolded: 110 x 35 x 30 cm
- Weight: 9 kg
- Power Consumption: 25W max
- Transmission Range (LOS) max bitrate using 0.5W RF power: beyond 100 km (130 km and more with lower bitrate)
- Downlink Bitrate: up to 4.5 Mbit/sec
- Transmit Power: from – 24 dBm to + 27 dBm
