65R
Specifications:

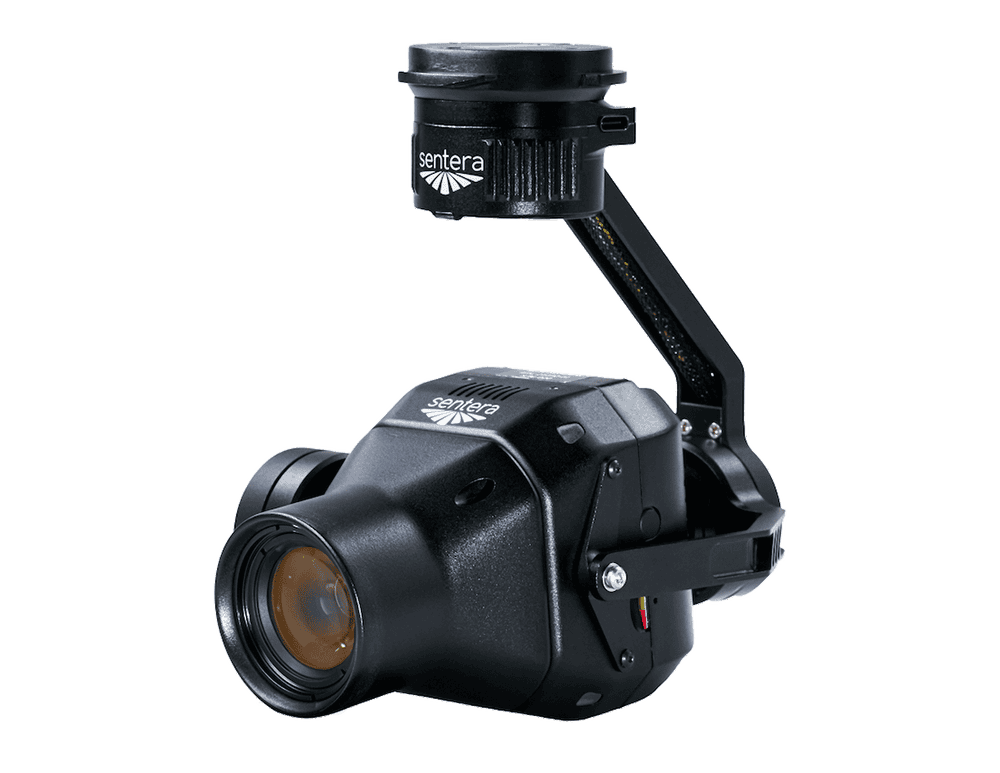

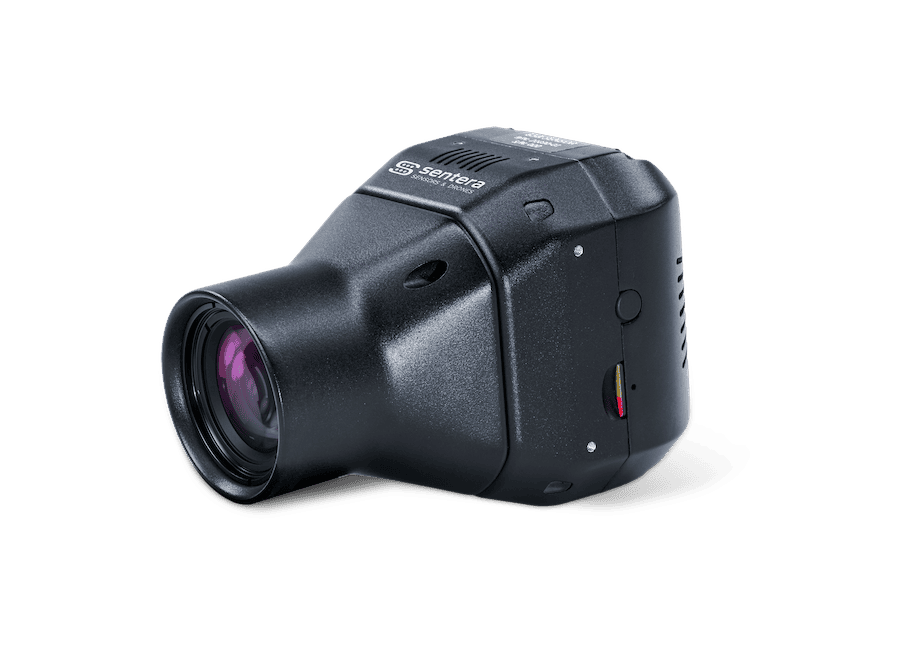

The Sentera 65R Sensor offers 65-megapixel global shutter RGB imagery optimized for drone integration. Its compact, lightweight design extends flight times, enhancing efficiency. With a resolution of 9344 x 7000 pixels, multiple lens variants, and live video, it ensures exceptional detail. The 65R can be integrated either as a stand-alone sensor or with a stabilizing gimbal, offering plug-and-play compatibility with popular drone platforms, making it ideal for surveying, mapping, inspection, and analytics. It empowers professionals to make informed decisions with high-resolution data, significantly reducing the number of images needed for comprehensive coverage
Key Use Cases- Surveying and inspection
- Mapping larger areas
- 3D reconstruction and volumetrics
- Elevation mapping (DSM/DEM)
- Precision phenotyping
- Plant counting
- Crop health, damage, disease detection, nutrient status, and stress
| Dimensions: | Sensor only: 35 x 70.6 x 106.4 mm With gimbal: 101 x 144.8 x 150.6 mm |
| Weight: | Sensor only: 330g With Skyport: 580g With Smart Dovetail: 588g With Gremsy T3/S1: 564g |
| Power Input: | 10.5 - 26V |
| Power Consumption: | 12W typical, 15W max |
| Capture Rate: | 3 fps |
| Resolution: | 9344px by 7000px |
| GSD: | @200 ft (60m): 0.28in (0.7cm) @400 ft (120m): 0.55in (1.4cm) |
| Field of View: | 58° HFOV |
